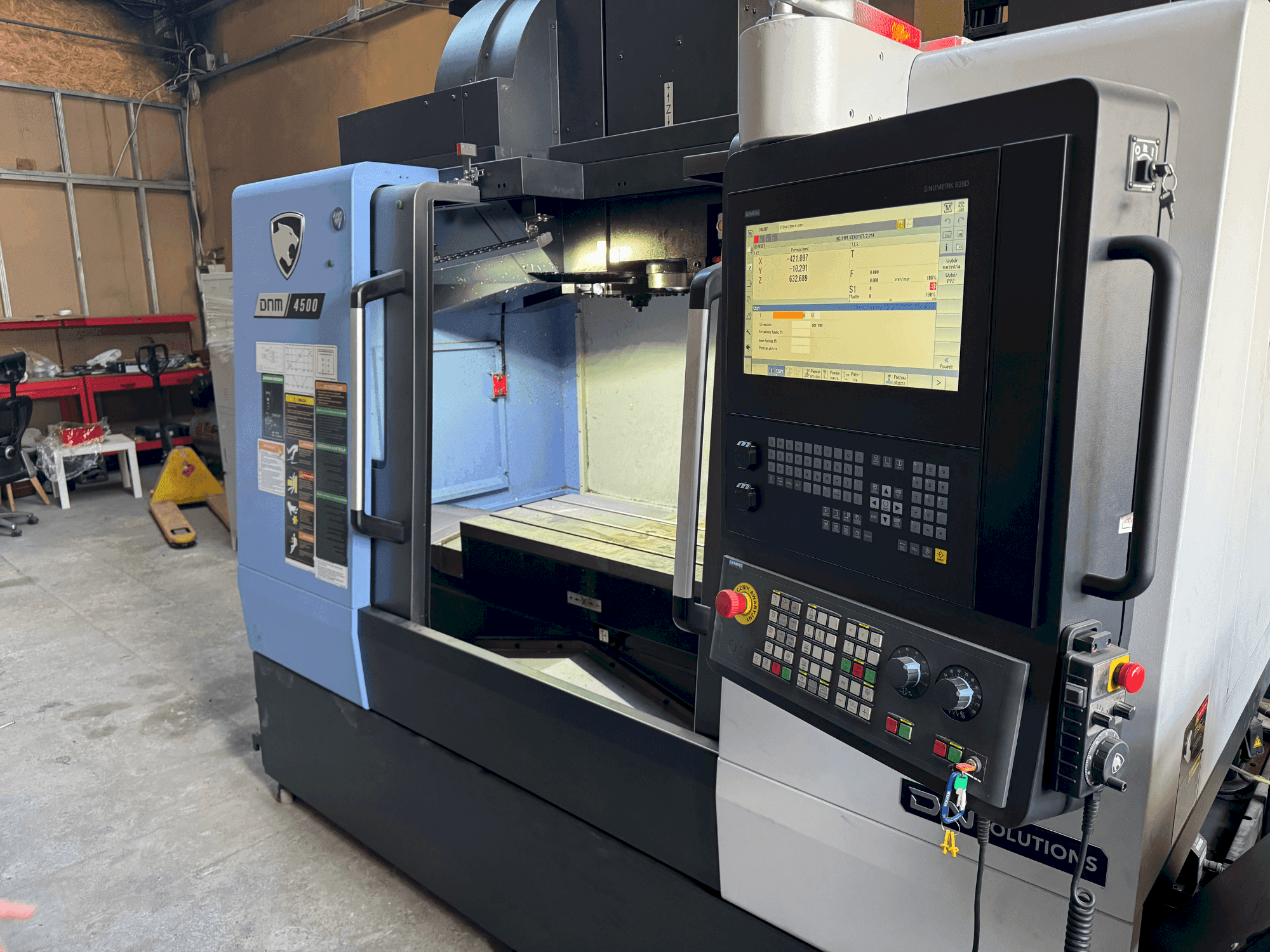

Front view of DN SOLUTIONS DNM 4500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DN SOLUTIONS DNM 4500

Photo Gallery

DN SOLUTIONS - DNM 4500PL-MIL-DNS-2022-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DN SOLUTIONS DNM 4500 For Sale | gindumac.com

This 3 DN SOLUTIONS DNM 4500 vertical machining center was manufactured in 2022. Consider the opportunity to buy this DN SOLUTIONS DNM 4500 vertical machining center. Contact us for more information.

Overview

brand: DN SOLUTIONS
year: 2022
MODEL: DNM 4500
production hours: 83
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DN SOLUTIONS DNM 4500

Control Unit

Brand: SIEMENS
Model: Sinumerik 828D

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 11/16.5 kW
Tool taper: ISO #40 7/24
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 30 m/min

Table

Outer length: 1000 mm
Outer width: 450 mm
Table load: 600 kg

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 80 mm (125 mm if adjacent tool pockets are empty)
Max tool length: 300 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits

Servo motor power: x & y axes: 1. 8 kw z-axis: 3. 0 kw
Maximum spindle torque: 141 nm
Transmission type: direct drive
Tool change mechanism: arm-type
Tool taper: iso #40 7/24 with: big plus bt spindle taper
Tool-to-tool change time: 1. 2 seconds
Chip-to-chip time: 3. 2 seconds
Doosan dnm 4500 siemens – shop mill/temperature compensation function/roller linear guides/spindle cooling 20 bar /led work area lighting /3-color signal led lamp
Main spindle speed up to 12,000 rpm/ 30-tool magazine, cam type /big plus bt taper
Prepared for 4th axis /doosan tool monitoring

Extra Information

Machine still under power // Options included: SIEMENS – Shop Mill/ Chip conveyor/ Temperature compensation function/ Roller linear guides/ Through-spindle cooling, 20 bar LED lighting of the working area/ 3-color LED signal lamp/ Spindle speed up to 12,000 rpm/ Tool magazine for 30 tools, CAM type/ BIG PLUS BT spindle taper/ Prepared for 4th axis/ Doosan Tool Monitoring system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
