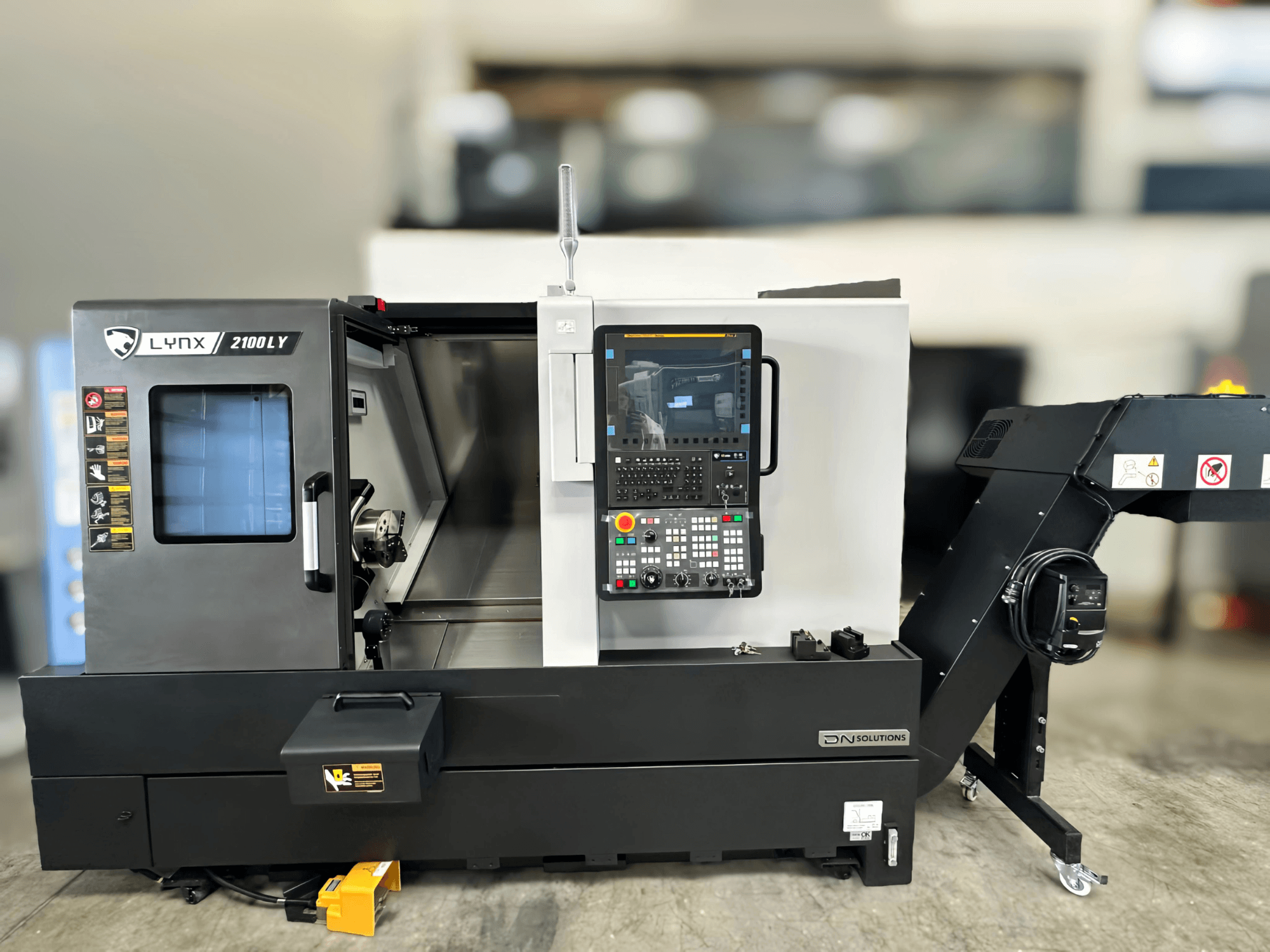

Horizontal turning machine DN SOLUTIONS LYNX 2100LYB, front view, featuring control panel and open door revealing the interior.
Horizontal turning machine DN SOLUTIONS LYNX 2100LYB, front view, featuring control panel and open door revealing the interior.

DN SOLUTIONS - LYNX 2100LYBDE-TUR-DOO-2022-00001

87,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis DN SOLUTIONS LYNX 2100LYB was manufactured in 2022. It features a maximum spindle speed of 4,500 RPM and a chuck size of 8" (204 mm). The machine includes a Y-axis travel of 105 mm and a Z-axis travel of 560 mm, providing enhanced turning capabilities. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS LYNX 2100LYB horizontal turning machine we have for sale. Contact us for further details.

Overview

  • brand: DN SOLUTIONS
  • year: 2022
  • MODEL: LYNX 2100LYB
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • control unit brand: FANUC

Technical Information - DN SOLUTIONS LYNX 2100LYB

Control Unit

  • Control Brand: FANUC
  • Control Model: 0i-F Plus

Dimensions

  • Machine Height: 1921 mm
  • Machine Length: 1921 mm
  • Machine Width: 1711 mm

Movement

  • Number of Axes: 4
  • X-axis Travel: 205 mm
  • Y-axis Travel: 105 mm
  • Z-axis Travel: 560 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: No
  • Spindle Power: 15 kW
  • Spindle Speed: 4500 RPM

Additional Information

  • Chuck size: 8" (204)

  • Bar capacity: 65 mm

  • Y travel: 105 mm (total stroke calculation: 30 / 36 mm indicated in sequence)

  • Turret: 24 stations, BMT 45

  • Guideway type: Roller linear guides

  • Tailstock: Programmable hydraulic NC tailstock

  • Notes: High-performance compact center; BMT interface turret with high-speed servo indexing; roller linear guides for rigidity on small parts

Additional equipment

  • High-pressure cooling through turret

  • Oil skimmer (filtration)

  • Parts catcher with box

  • Tool setter (auto-electric)

  • Bar feeder interface

  • Load monitoring

  • EOP (Easy Operation Package) software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
