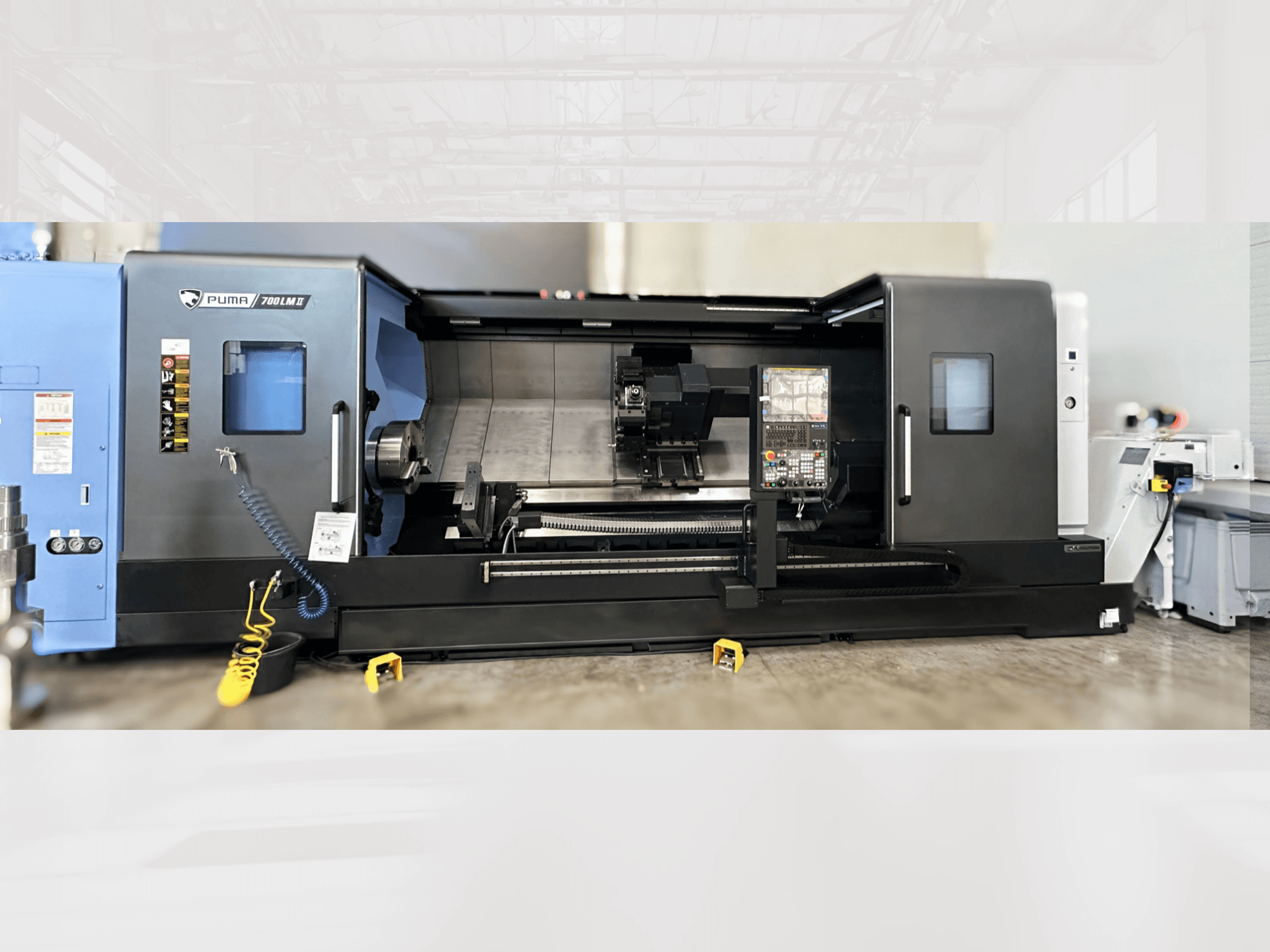

This 3-axis DN SOLUTIONS PUMA 700LM was manufactured in 2023. It features a maximum turning length of 3,200 mm and a swing over bed of 900 mm, making it suitable for heavy-duty operations. The machine is equipped with a robust 24" chuck and a powerful spindle motor with a maximum torque of 8,076 Nm. If you are looking to get high-quality turning capabilities, consider the DN SOLUTIONS PUMA 700LM turn-mill centre we have for sale. Contact us for further details.
Overview
- brand: DN SOLUTIONS
- year: 2023
- MODEL: PUMA 700LM
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DN SOLUTIONS PUMA 700LM
Control Unit
- Control Brand: FANUC
- Control Model: 0i-F Plus
Dimensions
- Machine Height: 2590 mm
- Machine Length: 7360 mm
- Machine Width: 2772 mm
Movement
- Number of Axes: 3
- X-axis Travel: 470 mm
- Z-axis Travel: 3235 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 55 kW
- Spindle Speed: 1500 RPM
Additional Information
Chuck size: 24" (610 mm)
Bar capacity: 164 mm
Rapid traverse (X/Z): 12 / 10 m/min
Max torque: 8,076 Nm
Swing over bed: 900 mm
Spindle motor power: 55 / 45 / 37 kW
Max turning length: 3,200 mm
Turret: 12 stations, BMT 85 interface
Guideway type: Box guideway
Tailstock: Programmable with integrated quill bearing
Application: Universal heavy-duty center for interrupted cuts and high-precision shaft production
Material/casting: Meehanite cast design for high damping
Rigidity: Box guideways for extreme stability in heavy-duty operations
Additional equipment
Steady rest: Steady rest carrier SLUSZ
Calibration: Tool setter (auto-hydraulic)
Automation: Auto door
Cooling: High-pressure turret cooling, 14.5 bar
Maintenance tools: Compressed air gun; oil skimmer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
