- ➤ Used DOOSAN HM 6300 - 2009 - Horizontal machine centre

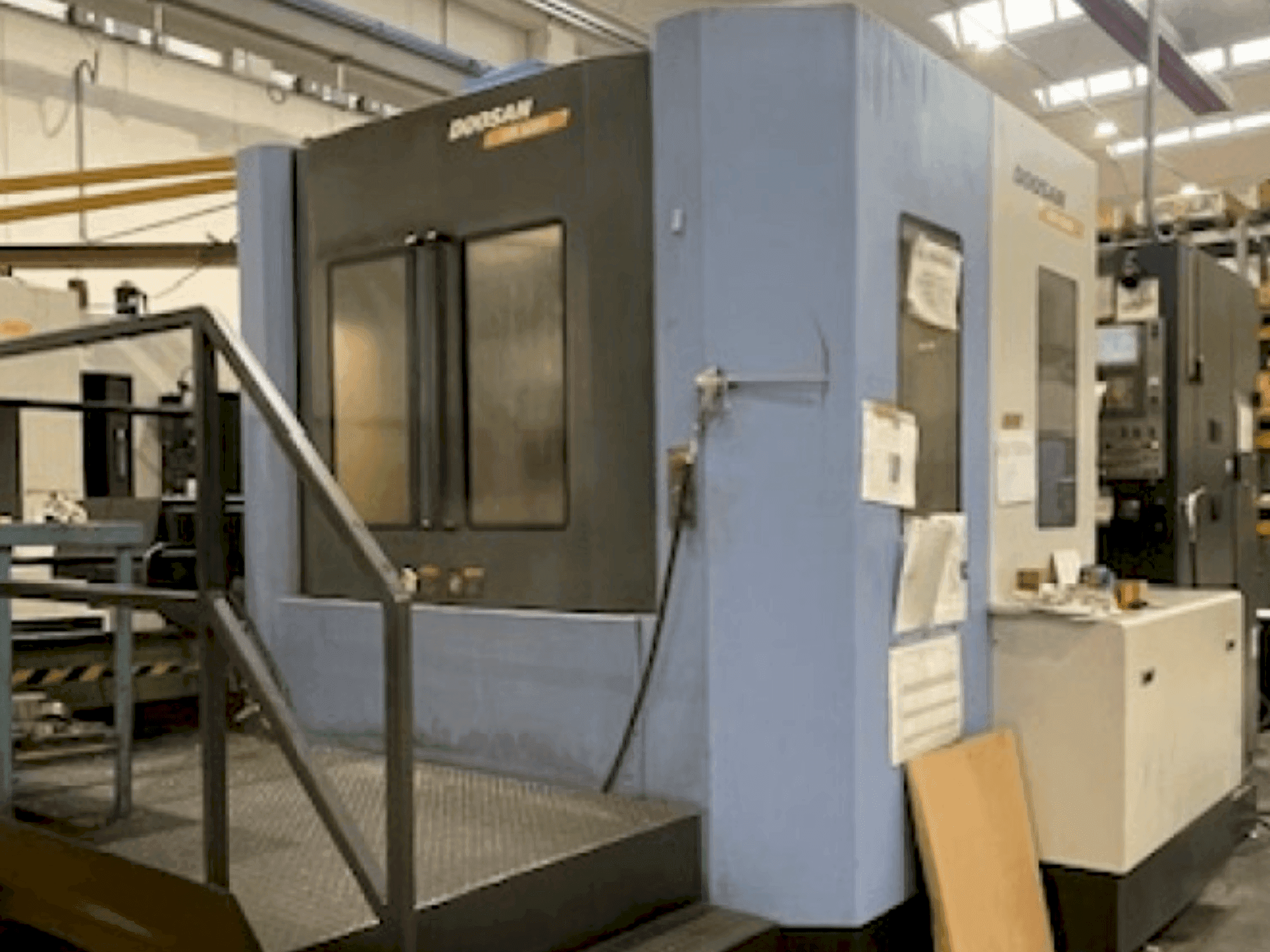

The DOOSAN HM 6300 is a 4-axis horizontal machining centre from 2009 with a CNC FANUC 31i-Mod.A control unit. It offers expansive axis movement: 1000 mm on X, 800 mm on Y, and 850 mm on Z, with rapid 48 m/min travel. The two 630 x 630 mm pallets, with a 1° indexing and 180° rotary change, support 1,200 kg each. The spindle, powered by a 30 kW motor, reaches 6000 rpm, and the 60-position tool chain accommodates various tool sizes. Accessories include a chip conveyor, Renishaw predisposition, and a high-pressure coolant system. Contact us for more details.
Overview
- brand: DOOSAN
- year: 2009
- MODEL: HM 6300
- application type: Milling
- Location: Italy
- machine type: Machining centers (horizontal)
- availability: Immediately
- control unit brand: Fanuc
Technical Information - DOOSAN HM 6300
General Data
- Machine weight: 21000 kg
Control Unit
- Brand: Fanuc
- Model: 31i–Mod.A
Main drive
- Number of spindles: 1
- Spindle speed range: 600 1/MIN
- Spindle motor power: 30 Kw
- Tool taper: ISO 50 Din 69871
- Number of axis: 4
Movement
- X-AXIS Movement: 1000 mm
- X-AXIS Rapid traverse: 48 m/min
- Y-AXIS Movement: 800 mm
- Y-AXIS Rapid traverse: 48 m/min
- Z-AXIS Movement: 850 mm
- Z-AXIS Rapid traverse: 48 m/min
Tools
- Number of index: 60
Media
- Chip conveyor: Yes
Additional Equipment
- - 2 Pallets (dimensions 630 x 630 mm, indexing: 1°, change type: 180° rotary, weight allowed on the pallet: 1,200 kg)
- - Renishaw predisposition
- - Remote electronic handwheel
Additional Information
- Technical Machine Benefits:
- - High-speed spindle (6000 rpm) with substantial motor power (30 kw) supports robust machining.
- - Exceptional rapid traverse rate of 48 m/min on all axes enhances efficiency and reduces cycle times.
- Qualitative Machine Benefits:
- - Precision in machining with pallet indexing of 1° and a high-quality tooling system (iso 50 din 69871).
- - Effective coolant system and renishaw predisposition for improved machining accuracy and setup flexibility.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
