DOOSAN - Lynx 2100MAPL-TUR-DOO-2017-00003
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Machine Tools
- Doosan Lynx 2100MA Lathe

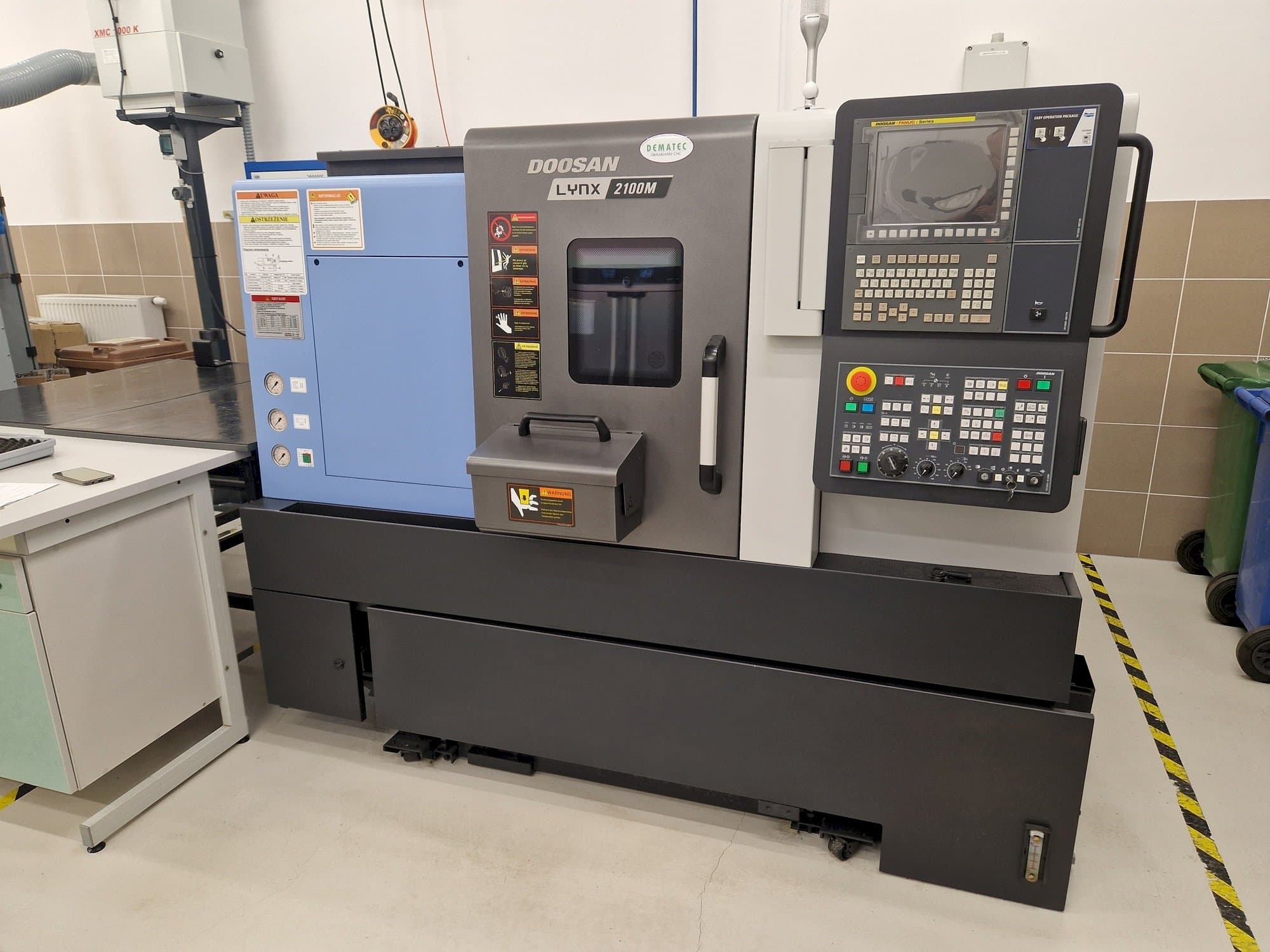

This Doosan Lynx 2100MA Lathe was built in the year 2017 and has 1188 power hours, of which 122 are production hours and 66 are spindle hours. It is equipped with a Fanuc Series control unit. The machine has a spindle speed of 6000 rpm and includes 12 pcs tool holders.
Overview
- brand: DOOSAN
- year: 2017
- MODEL: Lynx 2100MA
- production hours: 1188
- application type: Turning
- Location: Poland
- machine type: Lathe
- availability: Sold
- control unit brand: FANUC
Technical Information - DOOSAN Lynx 2100MA
General Data
- Measurements width: 2320 mm
- Measurements depth: 1595 mm
- Measurements height: 1693 mm
- Machine weight: 2750 kg
Control Unit
- Brand: FANUC
- Model: 0–iTF with 10.4’’ LCD
Main drive
- Spindle speed range: 6000 rpm 1/MIN
Movement
- X-AXIS Movement: 205 mm
- X-AXIS Rapid traverse: 30 m/min
- Z-AXIS Movement: 340 mm
- Z-AXIS Rapid traverse: 36 m/min
- C-AXIS Movement: 360' (0.001) MM
- C-AXIS Rapid traverse: 200 rpm
Tools
- Number of stations: 12 pcs (4 rotary, 8 fixed)
- Type of tool holder: BMT 45 P
Media
- Main electronic connection: 380V / 50 Hz
- Power consumption: 25.94 kVA
Additional Equipment
- - 12 pcs tool holders
- - Turret configuration: 4 pcs live tools, 8 pcs fixed tools
- - EZ Guide: graphic interface for programing, Part catcher
- - Rediness to work with a bar feeder and chip conveyor
- - Pomp: 7 bar
- - Programmable tailstock
- - Box for chips
- - Tools monitoring system
- - Some accesories and tooling
- - Docs: PL/EN
Additional Information
- Technical Machine Benefits:
- - Swing over bed: 600 mm
- - Swing over saddle: 400 mm
- - Recommended turning diameter: 170 mm
- - Max. Turning diameter: 300 mm
- - Max. Turning length: 290 mm
- - Chuck size inch: 6’’
- - Bar working diameter: 51 mm
- - Servo motor: x axis 1. 8 kw, z axis 1,8 kw
- - Max. Id tool size mm (inch) 40 (1. 6) 32 (1. 3)
- - Turret indexing time s 0. 11 {0. 15}* 0. 11 max. Rotary tool speed
- Qualitative Machine Benefits:
- - Diameter of passage over bed 600 mm
- - Maximum turning diameter 300 mm
- - Maximum length of turning 290 mm
- - Permissible weight in chuck: 70 kg
- - Rod diameter in spindle 51 mm
- - Spindle holder: 170 mm, spindle type: a2#5 asa, spindle diameter (front/rear) (90/80) mm
- - Spindle bore: 61 mm, spindle taper clearance: dia. 52 mm
- - Spindle clearance: 52 mm, cylinder clearance: 52 mm, spindle drive motor power (continuous/30 min) 15/11 kw (s325%/15 min cont. )
- - Maximum spindle torque: 127 nm
- - Tool size: 20 x 20 mm, siła zacisku 48 kn, position tool change 1 position: 0. 15 s
- - The machine is in perfect condition, newer used on a production, like a new. Full documentation available.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
