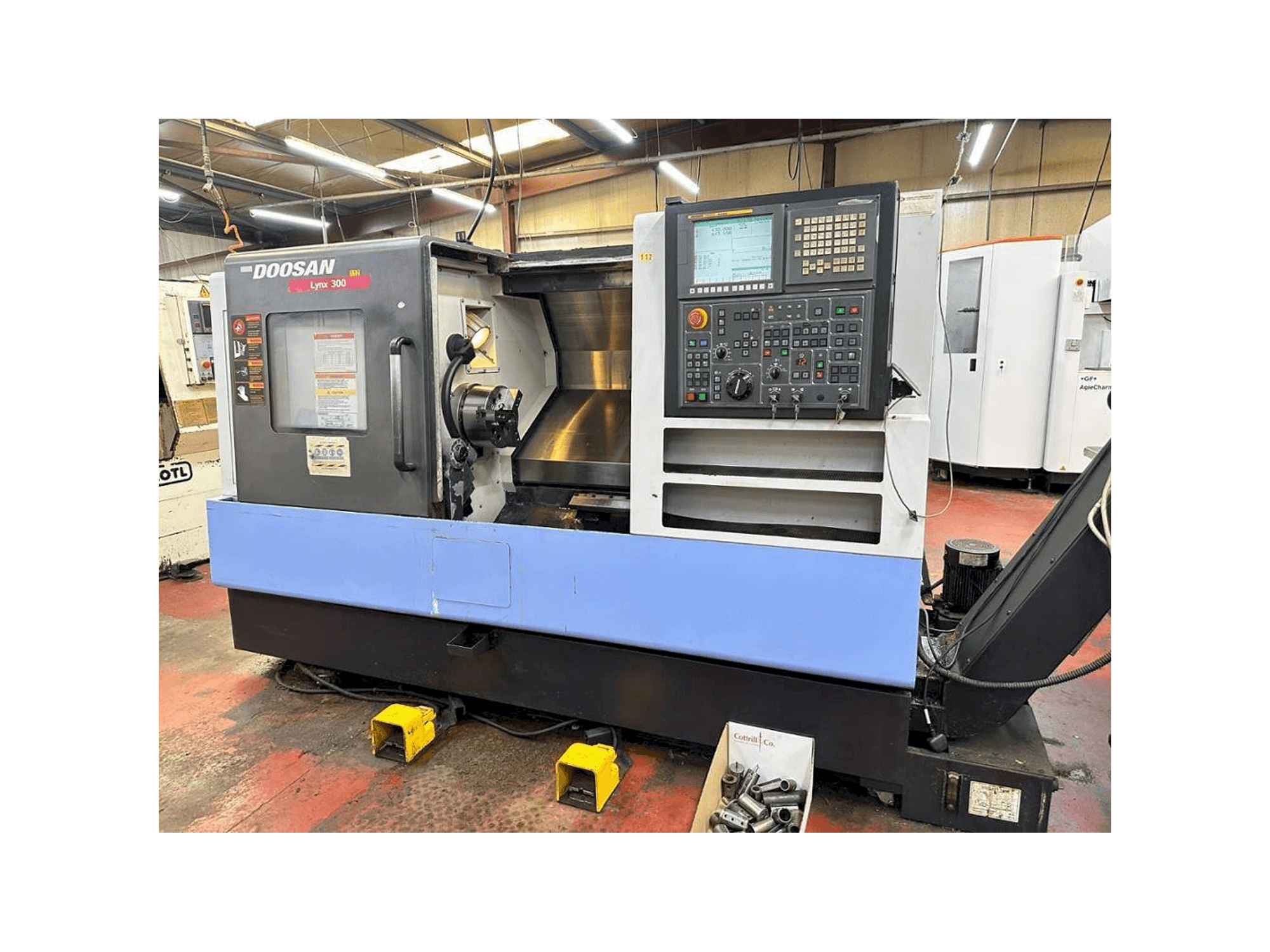

Doosan Lynx 300 Lathe

This Doosan Lynx 300 Lathe was manufactured in the year 2011 in South Korea. It is equipped with a Fanuc Series Oi control unit and has 2 axis. The machine has a spindle speed of 3500 rpm.

Overview

brand: DOOSAN
year: 2011
MODEL: Lynx 300
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Lynx 300

Control Unit

Control Brand: FANUC
Control Model: Series Oi

Dimensions

Machine Depth: 1785 mm
Machine Height: 1715 mm
Machine Weight: 4000 kg

Movement

Number of Axes: 2
X-axis Travel: 255 mm
Z-axis Travel: 790 mm

Technical Specification

Number of Tools: 12
Spindle Speed: 3500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Swing over bed 651 mm, over carriage 461 mm
Maximum cutting diameter: 450 mm
Maximum cutting length: 765 mm
Bar capacity 76 mm
Spindle motor power 15/11 kw
Spindle bore: 86 mm
Tailstock quill diameter: 80 mm, stroke 120 mm, taper mt #4
Rapid feedrates:xz: 24 x 30m/min
Swarf conveyor, tool setter, interlocked guards
3 jaw chuck 12"

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
