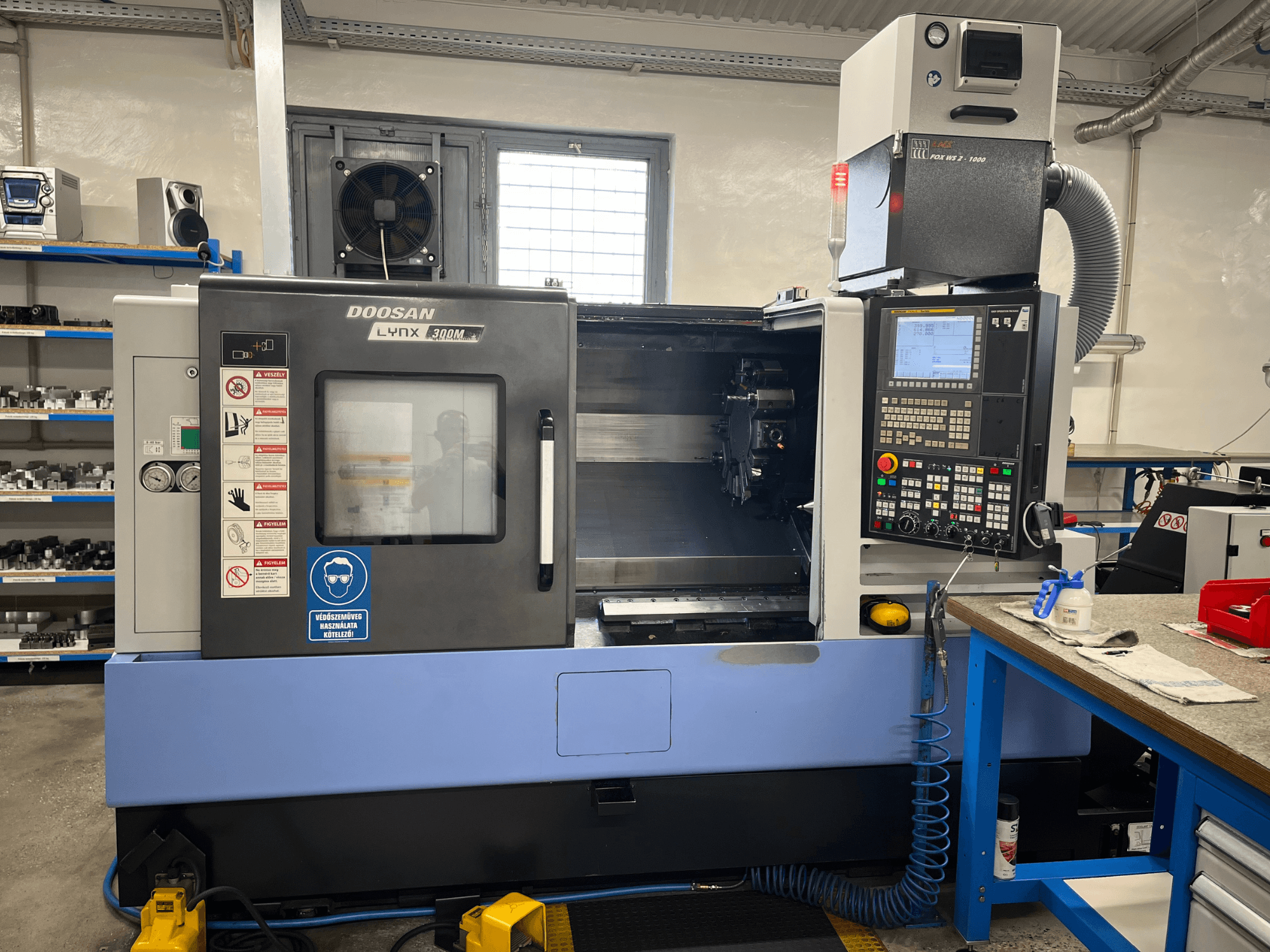

This 3-axis DOOSAN LYNX 300M was manufactured in 2016. It features a maximum turning diameter of 370 mm and a maximum turning length of 712 mm. The machine is equipped with a FANUC 0i-TF CNC control, a 12-station turret, and driven tooling capabilities. If you are looking to get high-quality turning capabilities, consider the DOOSAN LYNX 300M horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2016
- MODEL: LYNX 300M
- application type: Turning
- Location: Hungary
- machine type: Horizontal Turning Machine
Technical Information - DOOSAN LYNX 300M
Movement
- Number of Axes: 3
- X-axis Travel: 255 mm
- Z-axis Travel: 790 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 15 kW
- Spindle Speed: 3500 RPM
Additional Information
CNC control: FANUC 0i-TF with 10.4-inch LCD and Manual Guide
Driven tools: power 5.5 kW, up to 5,000 rpm
Tailstock: Yes
Manual positioning along bed
Quill operated by foot pedal or via CNC program
Capacities:
Maximum turning diameter: 370 mm
Maximum turning length: 712 mm
Maximum swing over bed: 651 mm
Bar capacity: 76 mm
Rapid traverse: X 24 m/min, Z 30 m/min
Workholding: 255 mm 3-jaw hydraulic chuck
Turret: 12 stations; indexing time 0.15 s
Tooling:
Tool shank size: 25 × 25 mm
Boring bar diameter: Ø40 mm
4 axial driven tool holders
3 radial driven tool holders
Basic tool holder package
Other: CE certification, transformer
Control options: Fast Ethernet connection, 2 GB CNC control memory
Additional equipment
Chip conveyor
Bar feeder interface and preparation
Box-type parts catcher
Automatic tool setter
High-pressure coolant system (7 bar)
Oil skimmer
Three-colour machine status light
Tool load monitoring system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
