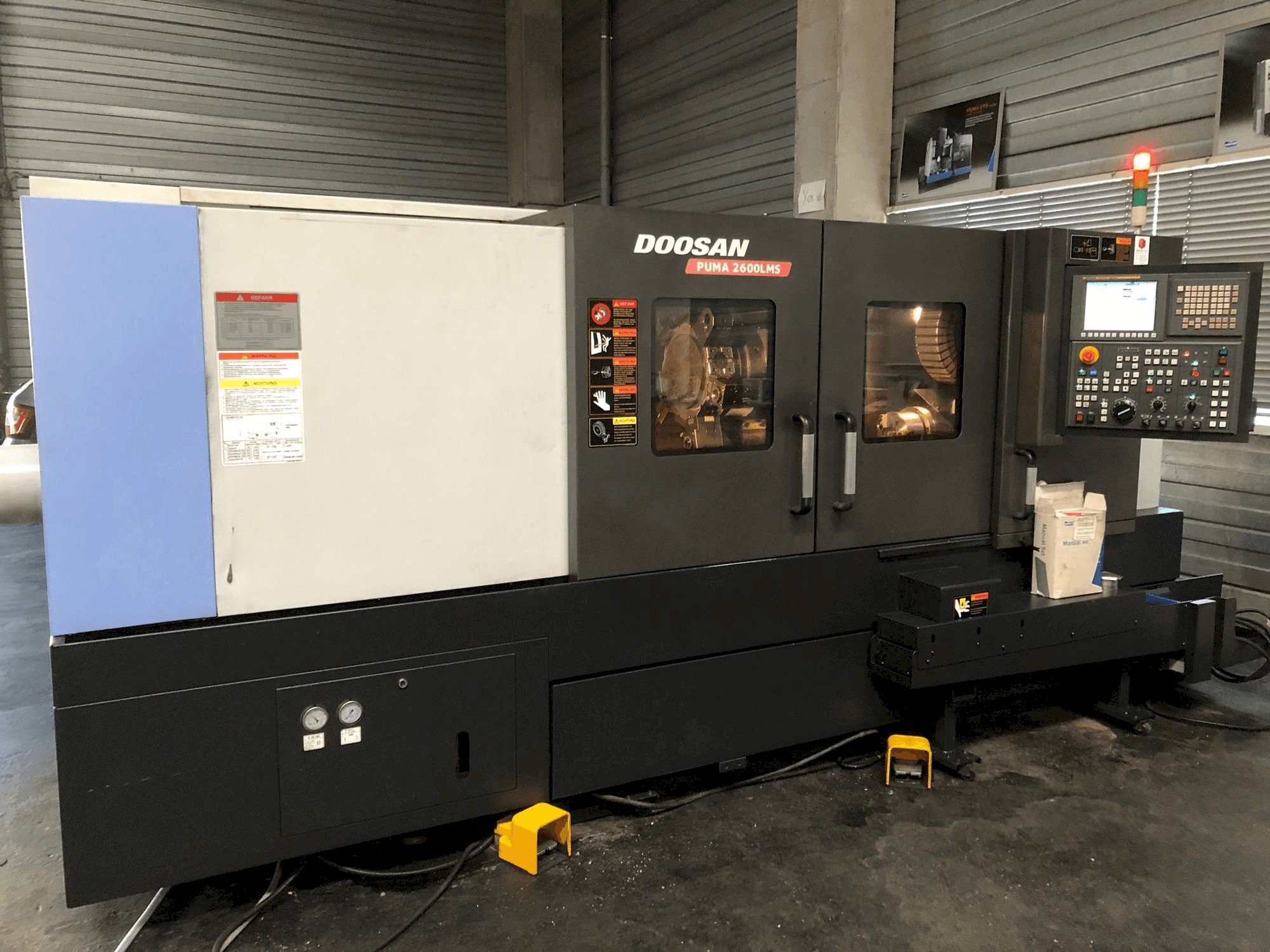

Doosan Puma 2600 LMS lathe

This Doosan 2600 LMS lathe was built in Korea in the year 2011. It has been powered on for 13026 hours, of which 2851 are cutting time. It is operated through a Doosan-Fanuc i Series control unit. This 3 axis machine counts with 2 spindles, the main one can work with a spindle speed up to 4000 rpm, and the sub-spindle can work with a spindle speed up to 4500 rpm.

Overview

brand: DOOSAN
year: 2011
MODEL: Puma 2600 LMS
production hours: 13026
application type: Turning
Location: Austria
machine type: Lathe
availability: Sold
control unit brand: Fanuc
GINDUMAC ID: AT-TUR-DOO-2011-00002

Technical Information

General Data

Measurements width: 3600 mm
Measurements depth: 1863 mm
Measurements height: 1900 mm
Machine weight: 7500 kg

Control Unit

Brand: Fanuc
Model: i Series

Main drive

Number of spindles: 2
Spindle speed range: 4000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 260 mm
X-AXIS Feed Force: 30 m/min
Z-AXIS Movement: 1350 mm
Z-AXIS Feed Force: 30 m/min
B-AXIS Movement: 1350 mm
B-AXIS Feed Force: 30 m/min

Turret

Number of tool slots: 12

Media

Power consumption: 43,5 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 780 mm
- - Swing over saddle: 630 mm
- - Recom. Turning diameter: 255 mm
- - Max turning diameter: 376 mm
- - Max work length: 1280 mm
- - Bar working diameter: 76 mm
- - Spindle nose: asa a2#8
- - Spindle bearing diameter: 140 mm
- - Spindle through hole diameter: 86 mm
- - Sub spindle: 4500 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
