This 3-axis DOOSAN Puma 2600 SY II was manufactured in 2018, designed for precision in horizontal turning. Ideal for complex machining tasks, this machine ensures robust performance and durability. If you are looking to get high quality turning capabilities consider the DOOSAN Puma 2600 SY II machine we have for sale. Contact us for more information.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: Puma 2600 SY II
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DOOSAN Puma 2600 SY II
Control Unit
- Control Brand: SIEMENS
- Control Model: 828D
Movement
- Number of Axes: 3
- X-axis Travel: 260 mm
- Y-axis Travel: 52.5 mm
- Z-axis Travel: 830 mm
Technical Specification
- Spindle Power: 33 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment

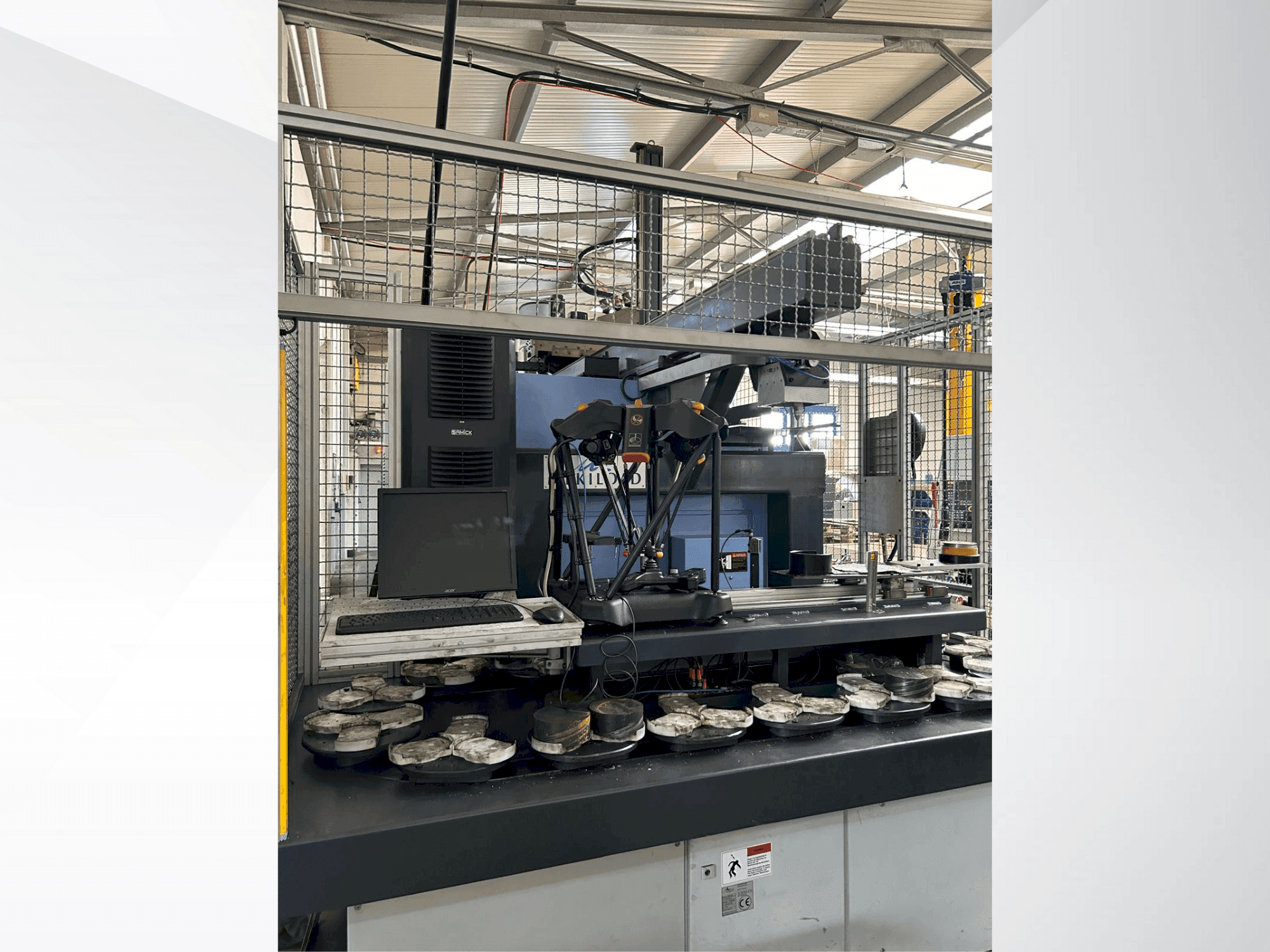

Mekiload Gantry Loader
Renishaw Equator
Renishaw Equator
Machine includes a rotary indexing magazine
Machine includes a gantry robot
Machine Benefits
Qualitative Machine Benefits
Tool change time: 1. 0 second
Max speed (station): 5000 rpm
Holder for turning tools: 25 x 25 mm
Holder for boring bar: Ø50 mm
Coolant pump capacity: 1. 5 kw
Technical Machine Benefits
Max. Turning diameter over bed: 780 mm
Max. Turning diameter over slide: 630 mm
Max. Turning length: 760 mm
Main spindle torque: 719 nm
Spindle mount (main): a2 #8
Sub spindle speed: 6000 rpm
Sub spindle power (30 min): 18. 2 kw
Sub spindle torque: 220 nm
Spindle mount (sub): a2 #5
Number of stations: 24 (12 driven)
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
