DOOSAN PUMA 400MB

Photo Gallery

DOOSAN - PUMA 400MBGB-TUR-DOO-2011-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN PUMA 400MB For Sale | gindumac.com

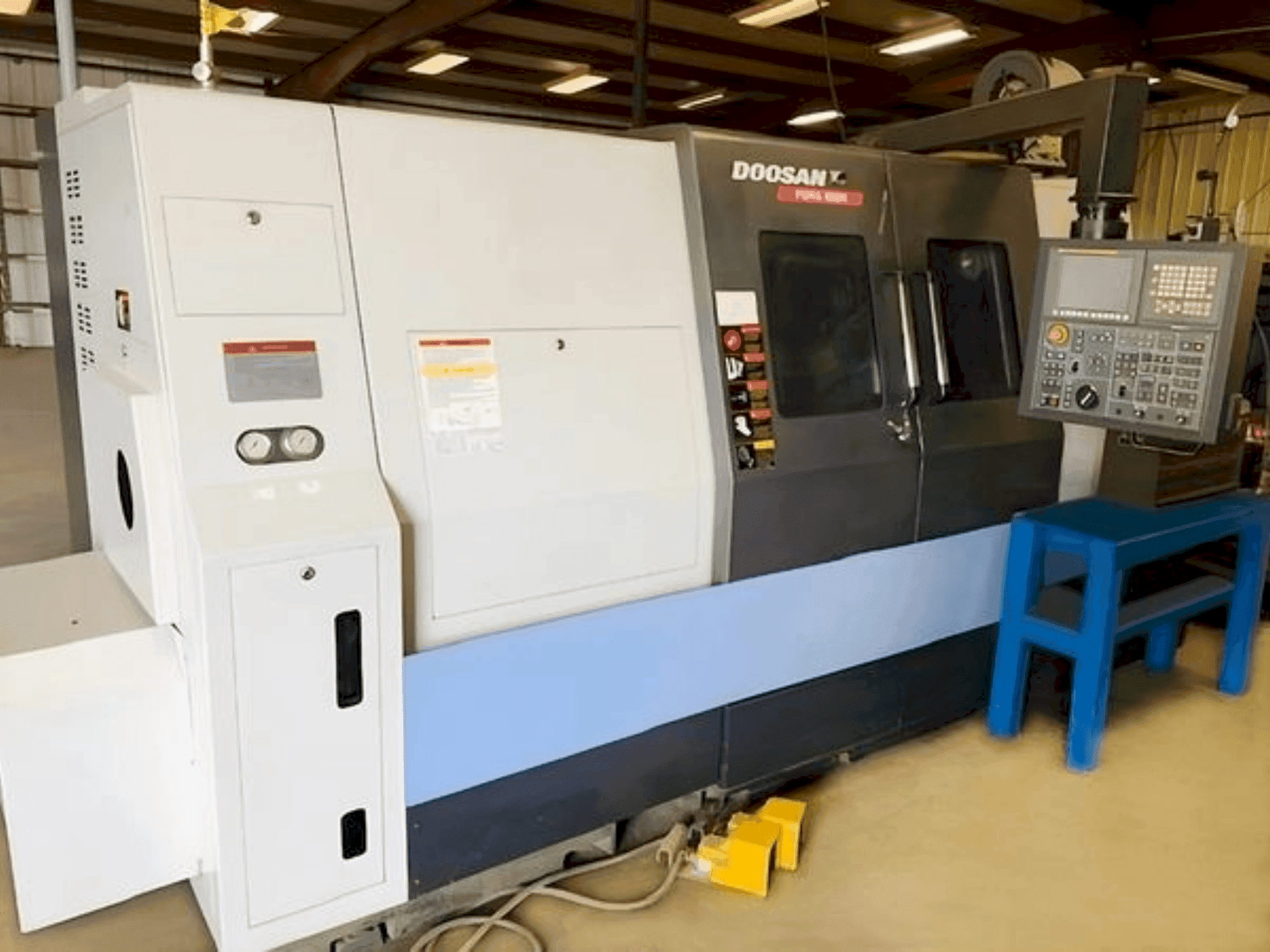

This DOOSAN PUMA 400MB horizontal turning machine was manufactured in 2011. It features a max turning diameter of 21.7", length of 38.5", and a spindle speed up to 2,000 RPM. Equipped with Fanuc Oi-TD CNC control, live tooling, and a high-pressure coolant system. Consider the opportunity to buy this DOOSAN PUMA 400MB horizontal turning machine. Contact us for more information about this machine.

Overview

brand: DOOSAN
year: 2011
MODEL: PUMA 400MB
production hours: 3700
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN PUMA 400MB

Control Unit

Control Brand: FANUC
Control Model: 0i-TD

Dimensions

Machine Depth: 5461 mm
Machine Height: 2286 mm
Machine Weight: 9200 kg

Movement

Number of Axes: 2

Technical Specification

Spindle Speed: 2000 RPM

Additional Information

Max turning diameter: 21.7 in
Max turning length: 38.5 in
Max swing: 30.3 in
X-axis travel: 14.3 in
Z-axis travel: 43.5 in
Bar capacity: 4.5 in
Spindle bore: 5.51 in
Milling motor speed: 3,000 rpm
Tailstock: programmable
Tool setter/presetter: yes
Control feature: PCMCIA interface
Actuation: foot pedal for chuck and tailstock
Steady rest: bracket only, no steady rest included
Dimensions (L x W x H): 215 x 99 x 90 in
Weight: 21,380 lbs
Spindle hours: approx. 3,700

Additional equipment

LNS heavy-duty chip conveyor
145 PSI high-pressure coolant system
18 in Autoblok BB-N-400 big bore air chuck
MICROIL Mist Collector
Live tooling (equipped)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
