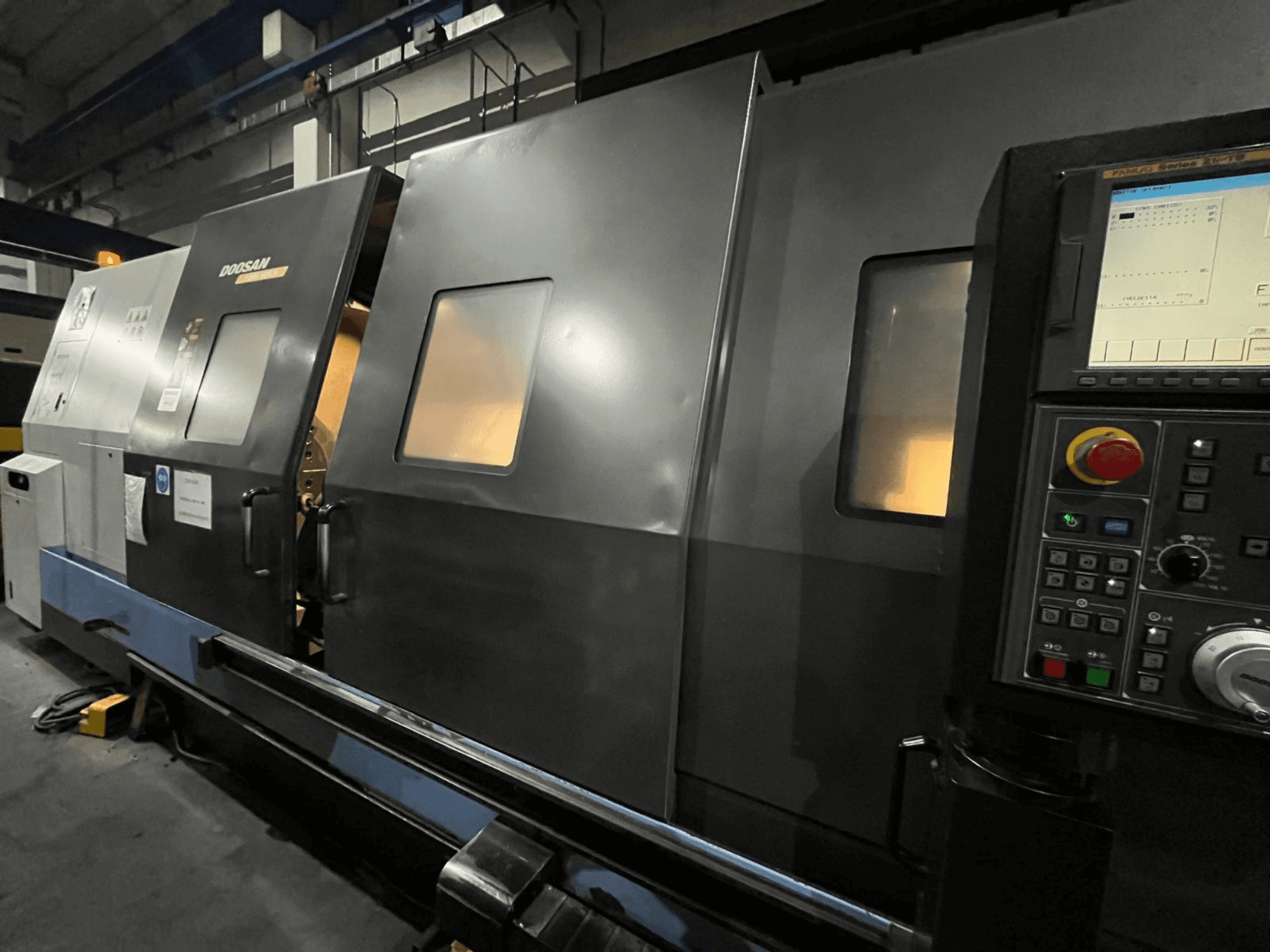

Doosan CNC lathe machine in front view, featuring control panel and operator interface with visible digital display and buttons.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN PUMA 600LM

Photo Gallery

DOOSAN - PUMA 600LMIT-TUR-DOO-2007-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN PUMA 600LM For Sale | gindumac.com

This 3s DOOSAN PUMA 600LM was manufactured in 2007. It features a 45° inclined cast-iron bed and prismatic guideways with Rulon 142 antifriction material. The spindle offers a speed range of 15 – 1,800 rpm and a maximum torque of 9,025 Nm. With a bar capacity of 152 mm and continuous C-axis rotation, consider the opportunity to buy this DOOSAN PUMA 600LM horizontal turning machine. Contact us for further details.

Overview

brand: DOOSAN
year: 2007
MODEL: PUMA 600LM
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - DOOSAN PUMA 600LM

Dimensions

Machine Weight: 21500 kg

Movement

Number of Axes: 3
X-axis Travel: 470 mm
Z-axis Travel: 3250 mm

Technical Specification

Spindle Power: 75 kW
Spindle Speed: 1800 RPM

Additional Information

Guideways: Prismatic with Rulon 142 antifriction material
Spindle:
- Nose: ASA A2-15
- Maximum torque: 7,220 / 9,025 Nm
- Bar capacity: 152 mm
- C-axis: continuous interpolated, 0.001° resolution
Axes:
- Number of axes: 3 (X, Z, C)
- C-axis rotation: ±360° continuous
Feeds:
- Rapid feed X-axis: 12 m/min
- Rapid feed Z-axis: 10 m/min
- Maximum interpolated feed: 500 mm/rev
- Ball screws diameter: Ø 50 / 63 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
