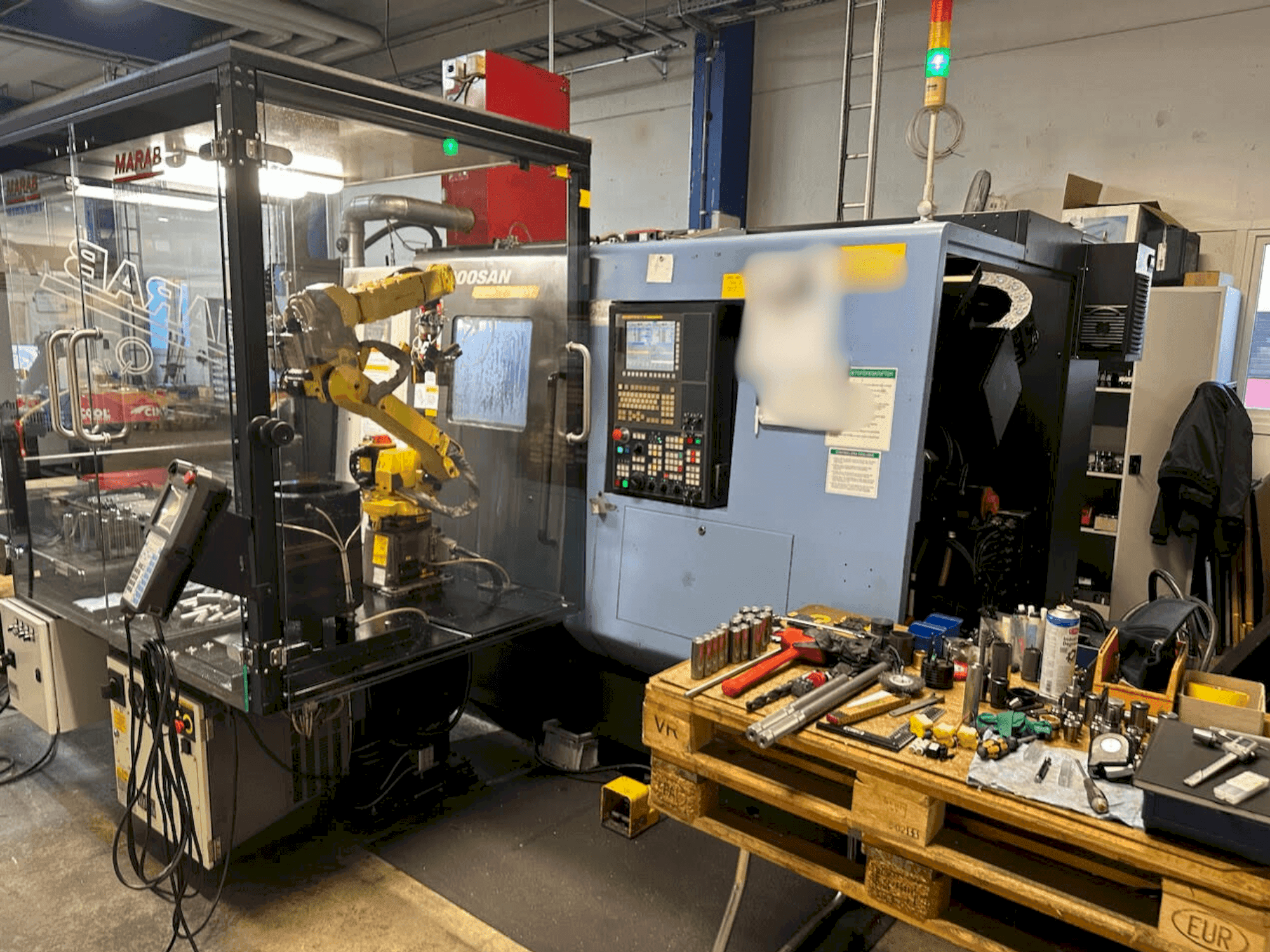

DOOSAN - PUMA TT 1800 SYSE-TUR-DOO-2014-00001

Additional equipment

• LNS bar interface
• the robot is not included

Machine Benefits

Qualitative Machine Benefits

• Part ejector + internal cooling for sub-spindle
• Automatic electric tool measurement
• Air conditioning in the electrical cabinet
• Lns lamella-type chip conveyor
• Auto door for robot application
• Absolent air system mounted on the machine
• 3 pcs driven tools radially
• 4 pieces of m-l21590377d triple holders with v-offset, 2 pieces of m-l21590337e axial external holders, 2 pieces of m-l21590347d double holders (single l/h), 4 pieces of m-l21590367d double holders (external), 6 pieces of m-l21590317 single holders (external), 2 pieces of m-l21590387c single holders (external), and 6 pieces of m-l21590327b internal holders
• 3 pcs hard jaws

Technical Machine Benefits

• Max turning diameter: 230 mm
• Max turning length: 230 mm
• Bar capacity: 65 mm
• C1-c2 axis: 360, x2: 190 mm, z2: 720 mm
• 2 x 12 position turrets, all positions driven (24/24 index)
• Tool holder: bmt 55 p
• Driven tools: 5. 5 kw, max: 5000 rpm
• Coolant pump for main turret: 3. 7 kw, 14 mpa, 30 l/min
• Coolant supply via sub-/right spindle
• Belt-type oil skimmer, part ejector

Extra Information

Machine still under power
