DOOSAN - Puma TT1800SYCZ-MIL-DOO-2008-00001

Name: DOOSAN Puma TT1800SY
Brand: DOOSAN
SKU: CZ-MIL-DOO-2008-00001
Price: 42000 EUR
Availability: InStock

42,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Puma TT1800SY For Sale | gindumac.com

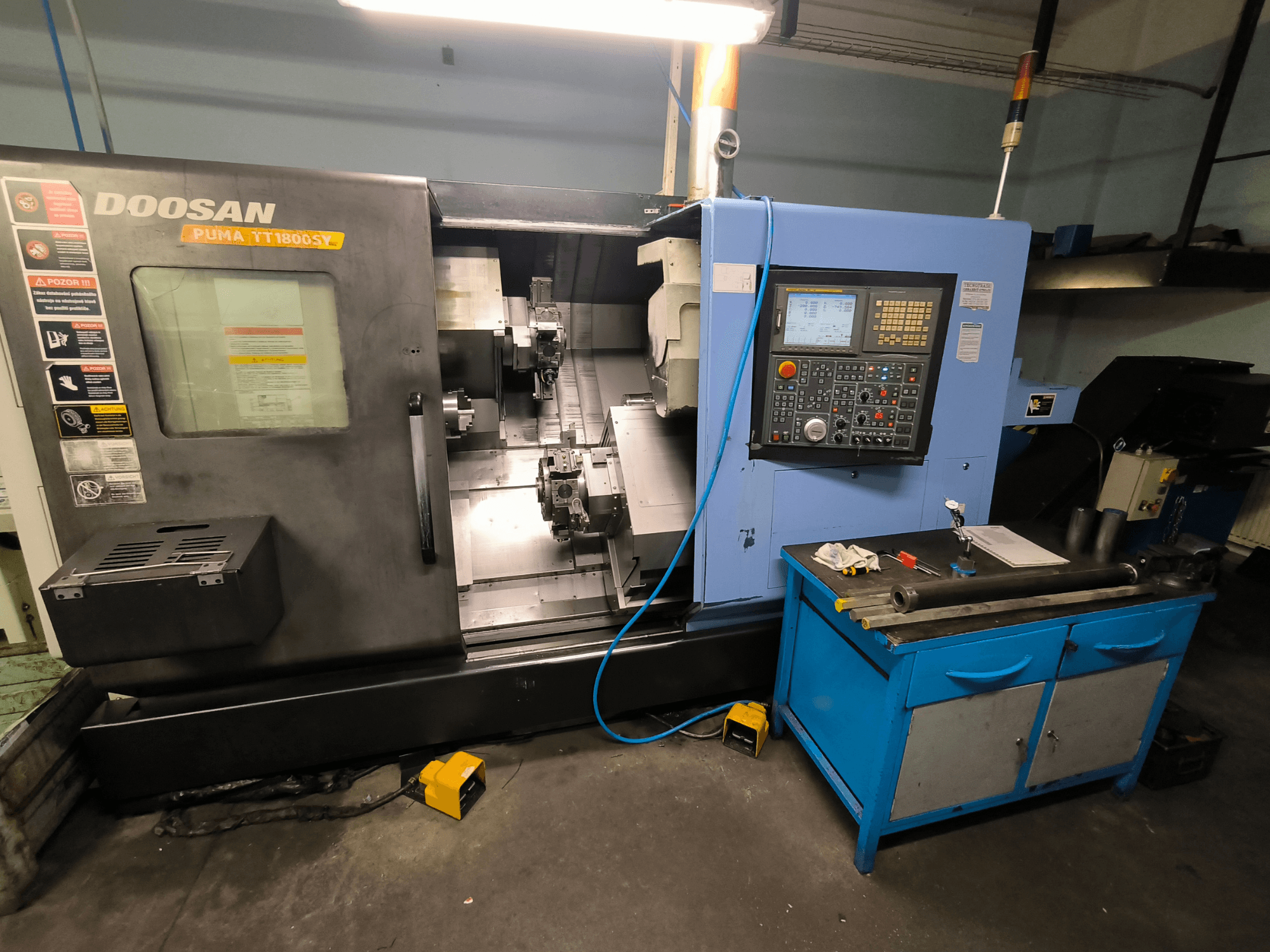

This 6-axis DOOSAN Puma TT1800SY was manufactured in 2008. It features a spindle rpm of 5000, a maximum distance between spindle noses of 980 mm, and a bar capacity of 65 mm. It includes a 210 mm diameter 3-jaw chuck on the main spindle and a 170 mm diameter 3-jaw chuck on the second spindle. If you are looking to get high-quality milling capabilities, consider the DOOSAN Puma TT1800SY machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2008
MODEL: Puma TT1800SY
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Puma TT1800SY

Control Unit

Control Brand: FANUC
Control Model: Series 18i-TB

Movement

Number of Axes: 6

Technical Specification

Spindle Speed: 5000 RPM

Additional Information

Milling rpm: 5000 rpm
Max. distance between spindle noses: 980 mm
Max. swing: 230 mm
Bar capacity: 65 mm
Turret positions: 12 + 12
Main spindle chuck: 3-jaw, 210 mm diameter
Second spindle chuck: 3-jaw, 170 mm diameter
Spindle through hole: 76 mm diameter
X1 axis travel: 165 mm
X2 axis travel: 190 mm
Z1 axis travel: 700 mm
Z2 axis travel: 720 mm
Y axis travel: 100 mm (±50 mm)
B axis travel: 770 mm

Additional equipment

Barfeed magazine: CNC Technology SS 2200
Tool holders included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
