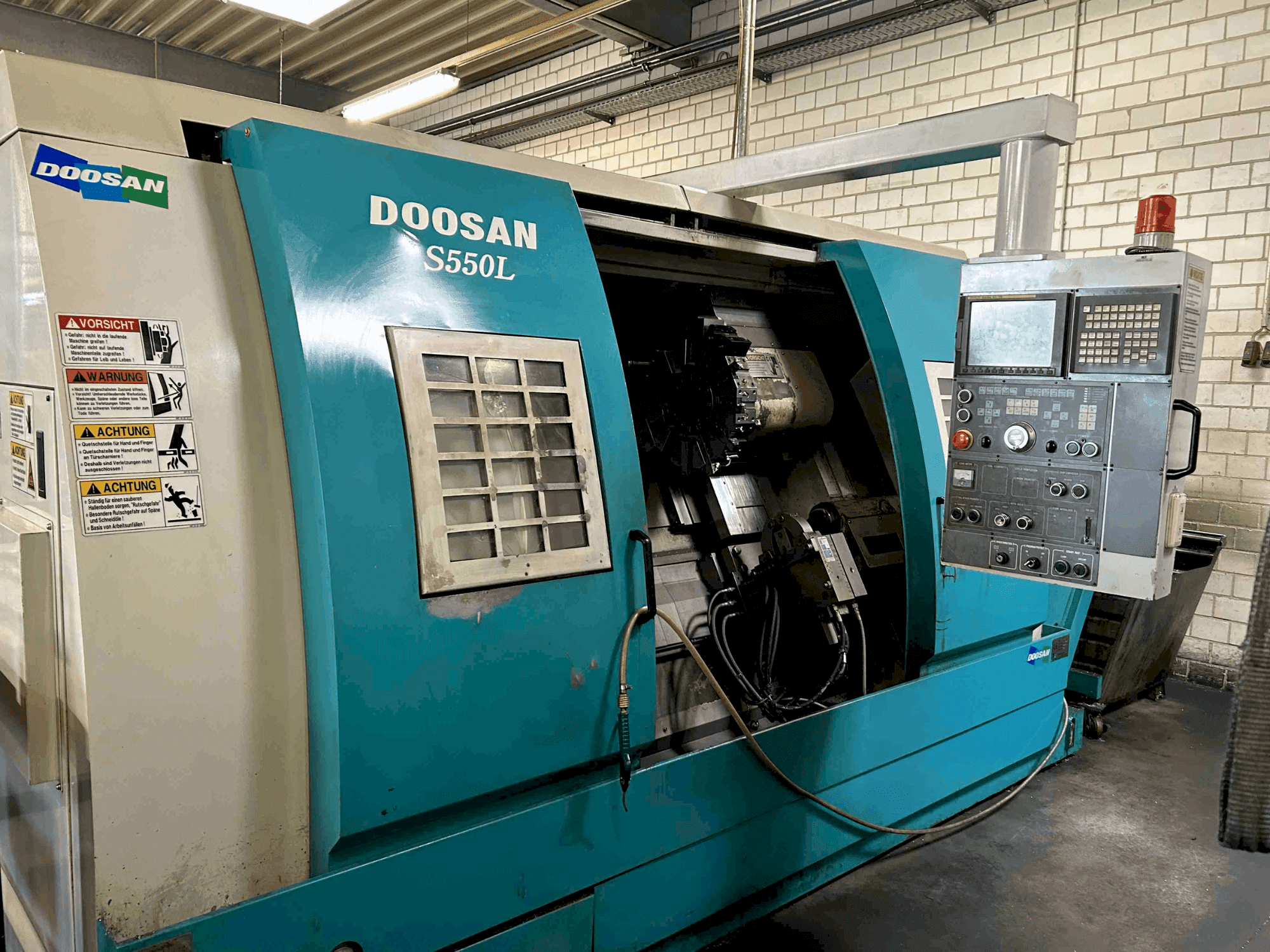

Front view of DOOSAN S550L  machine

DOOSAN S550L

DOOSAN - S550L

2005

33,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DOOSAN S550L was manufactured in 2005. A lathe featuring a Fanuc 21i control, with X-axis travel of 315 mm and Z-axis travel of 1150 mm. It includes a 12’ 3-jaw chuck, self-centering steady rest SLU 3.1, and a spindle motor power of 22 kW. Ideal for precise and efficient turning operations. Reach out for more information about this lathe.

Overview

  • brand: DOOSAN
  • year: 2005
  • MODEL: S550L
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: Fanuc
  • GINDUMAC ID: DE-TUR-DOO-2005-00001

Technical Information

Control Unit

  • Brand: Fanuc
  • Model: 21i

Main drive

  • Spindle speed range: 30 - 2500 rpm 1/MIN
  • Spindle motor power: 22 kW

Movement

  • X-AXIS Movement: 315 MM
  • Z-AXIS Movement: 1150 MM

Workpiece

  • Workpiece drm: 550 mm

Turret

  • Number of turrets: 12

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Programmable tailstock
    • - 12’ 3-jaw chuck
    • - Self-centring steady rest SLU 3.1
    • - Automatic tool measuring arm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Swing over bed: 710mm // distance between both centres: 1230 mm // bed with across saddle slideway: 280mm.
        • - Spindle center height: 1067mm // main spindle: nose type: asa a2-8 // taper of hole: mt no. 7
        • - Front bearing diameter: op. Ø150 mm // hole diameter: op. Ø 102 mm // support: roller/angular, thrust bearings
        • - Spindle speed override: 50-150(f-21itb) // main spindle motor continuos 30 min. Rating: ac 18. 5/22 kw
        • - Turret: type: v12 // standard shank size: 25mm // boring bar diameter: max. Ø 50 mm
        • - Feed axis: rapid traverse rate: x: 20mm - z:24mm
        • - Electric equipment: nc unit type: f-21itb
        • - Hydraulic pump motor: ac 1. 5 - 4p kw // way lubricating pump motor: ac 0. 02-4p kw
        • - Coolant pump motor: ac 0. 4-2p // total power consumption: 31 kva
        • - Steady-rest and tailstock move when hooked to the carriage
      • Qualitative Machine Benefits:
        • - Technical machine benefits: fully functional, ready for demonstration, enhanced operational efficiency and precision.
        • - Technical machine benefits: fully functional, ready for demonstration, enhanced operational efficiency and precision.

      Extra information

      • - machine still under power
