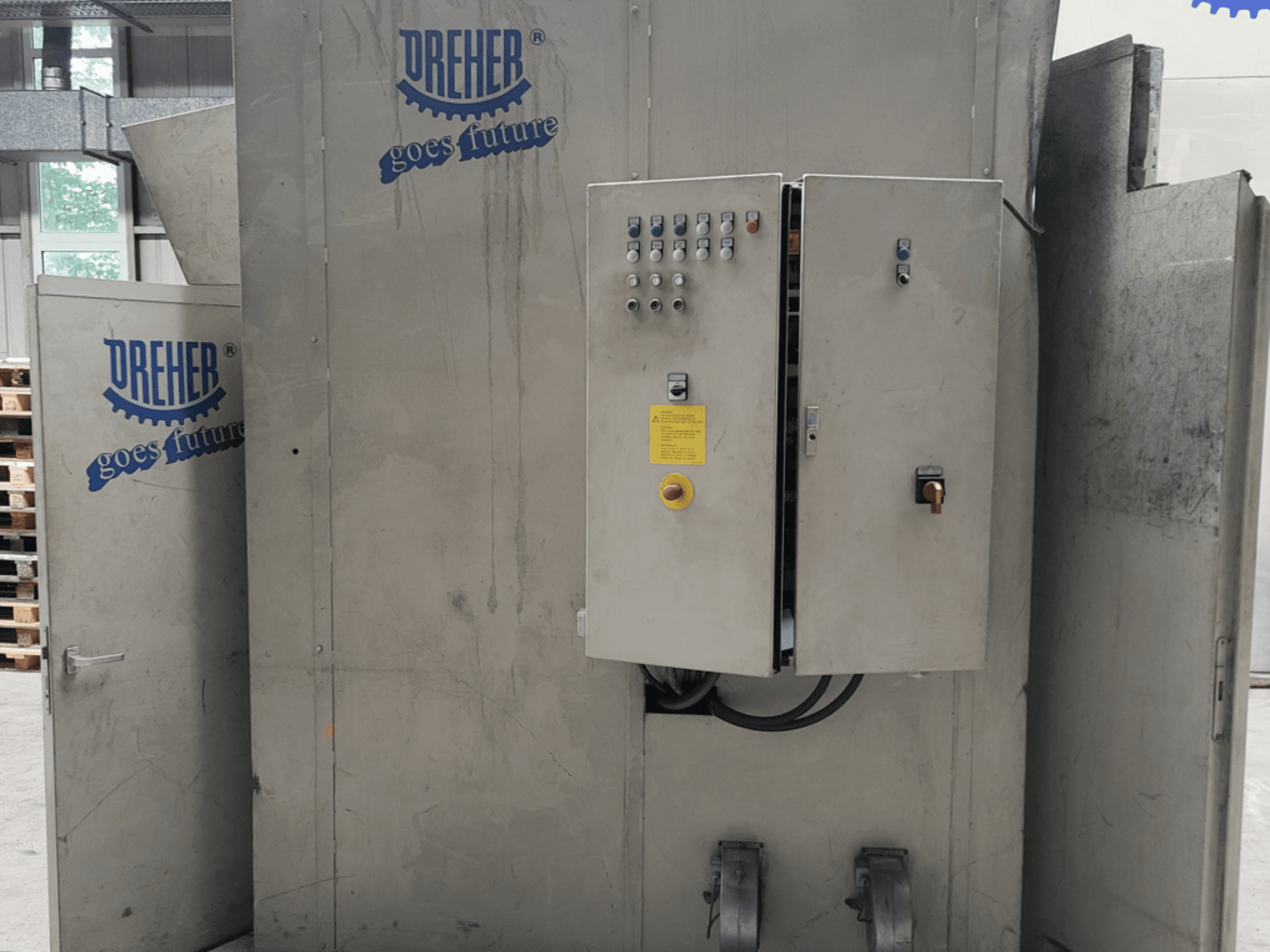

Plastic processing machine manufactured in 2003. This DREHER S 42/65 GFS-15 GR features a powerful 45 kW drive motor and a working width of 650 mm. It includes a protective soundproof enclosure and a granulator function, along with various additional equipment such as a Z-conveyor belt and a discharge extraction station. If you are looking to get high-quality plastic processing capabilities, consider the DREHER S 42/65 GFS-15 GR machine we have for sale. Contact us for further details.
Overview
- brand: DREHER
- year: 2003
- MODEL: S 42/65 GFS-15 GR
- application type: Other Plastic Processing Machinery
- Location: Germany
- machine type: Plastic Processing Machine
Additional Information
- Drive Power: 45 kW
- Motor Speed: 1,500 rpm (1,470 rpm rating on motor plate)
- Motor Specifications: VEM motors GmbH, 45 kW, 400/690 V, 50 Hz
- Rotor Diameter: 420 mm
- Working Width / Rotor Width: 650 mm
- Feed Opening: approx. 420 × 650 mm
- Rotor Cutting Bars: 5 pieces
- Stator Cutting Bars: 2 pieces
- Enclosure / Features: Protective / soundproof enclosure, granulator function
- Additional Equipment & Accessories:
- Screen Bed: 8 mm round perforation
- Rotor Feature: Auxiliary flywheel fitted
- Hydraulic System: Hand pumps for opening upper machine housing and swiveling screen bed
- Switchgear Combination: EN 60204/1 (VDE 0113) standard, star-delta starter, ammeter, main switch, motor protection
- Soundproof Booth: Segmented steel construction with 100 mm mineral wool insulation, forced ventilation fans, 3 access doors
- Z-Conveyor Belt: 500 mm width, 5,049 mm length, PP belt with cleats, height/angle adjustable
- Transverse Conveyor Belt: 4,428 mm length, 350 mm width
- Cross-Cutter: 2 units, max. 300 mm width, frequency-controlled (40-60 strokes/min, 2.2 kW)
- Discharge & Extraction Station: Granulate extraction fan (5.5 kW motor, 230/400 V), cyclone ZA 160 with pneumatic material diverter, dust filter
- Rotary Airlock: Cast iron housing, Vulkollan blades, gear motor drive
- Spare Parts: 1 extra set of cutting blades (7 rotor blades, 3 stator blades)
- Anti-Vibration: 6 vibration damping feet
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
