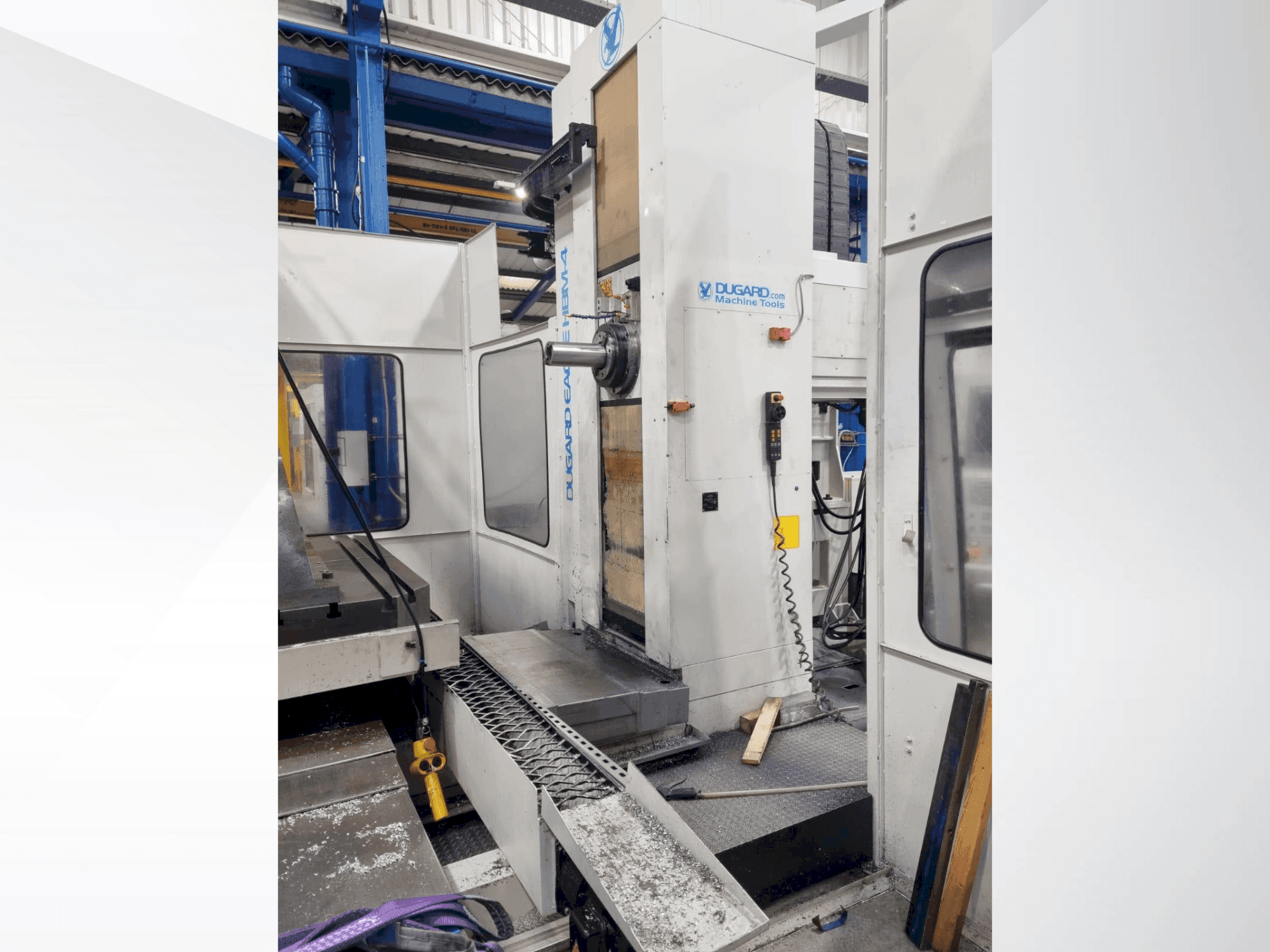

Dugard HBM4

Photo Gallery

Dugard - HBM4GB-OTH-DUG-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Dugard HBM4 For Sale | gindumac.com

This 4-axis Dugard HBM4 boring machine was manufactured in 2007. It features a robust 22500kg frame, with XYZ traverses of 2200 x 1600 x 1600mm, and a W axis of 550mm. The spindle supports a speed of 35-3000rpm and a motor power of 20/30kW. It accommodates a maximum workpiece weight of 5000kg and a tool change capacity of 60 stations. If you are looking to get high-quality boring capabilities consider the Dugard HBM4 machine we have for sale. Contact us for more information.

Overview

brand: Dugard
year: 2007
MODEL: HBM4
application type: Other Machine Tools
Location: United Kingdom
machine type: Boring Machine (Metal)
control unit brand: HEIDENHAIN

Technical Information - Dugard HBM4

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC530

Dimensions

Machine Depth: 4715 mm
Machine Height: 3706 mm
Machine Weight: 22500 kg
Table Length: 1200 mm
Table Width: 1500 mm

Movement

Number of Axes: 4

Additional Information

Additional equipment

B Axis: 1 degree / Rapid Feedrates: 12 m/minute

Machine Benefits

Technical Machine Benefits

Maximum workpiece weight: 5000 kg
Distance between table centre to spindle nose: 620 - 2220 mm / distance between table top to spindle centre: 0 - 1650 mm
Tool change capacity: 60 station / tool size: bt50 / maximum tool diameter: 125 mm / maximum tool diameter with empty adjacent pockets: 250 mm
Maximum tool length: 300 mm / maximum tool weight: 25 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
