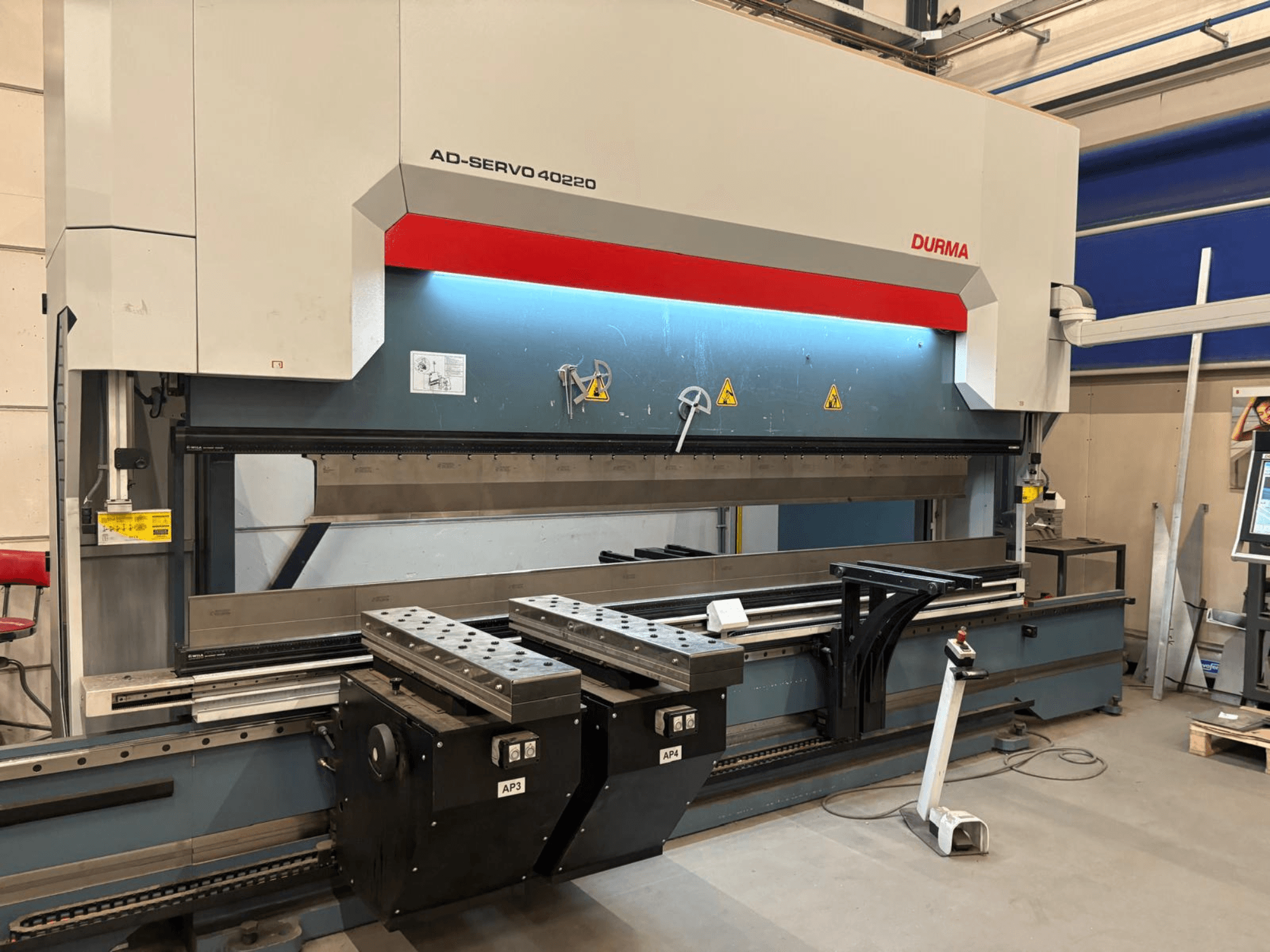

Durma - AD-SERVO 40220NL-BEN-DUR-2018-00001

• Distance between side frames: 3,600 mm

• CNC axes: Y1, Y2 (ram); X (backgauge depth); R (backgauge height)

• Installed axis options per configuration: Z1, Z2 (independent left/right finger positioning); Delta-X (independent right-hand finger offset ±125 mm)

• Approach speed: 160 mm/s

• Bending speed: 12 mm/s

• Return speed: 180 mm/s

• Daylight opening: 530 mm

• Table width: 104 mm

• Working height: 900 mm

• Throat depth: 410 mm

• Backgauge fingers: 2

• X-axis travel/speed: 650 mm / 250 mm/s

• R-axis travel/speed: 250 mm / 140 mm/s

• Main motor power: 2 × 7.5 kW

• Hydraulic oil capacity: 80 l

• Control: Delem DA-66T touch CNC with 2D graphical programming

• Crowning: CNC crowning system

• Tool clamping: Eurostyle upper tooling clamping; 60 mm lower die holder

• Supports: Two front support arms with T-slot and flip-stops, laterally adjustable on linear guides

• Safety: Fiessler AKAS II M-FPSC_B_C safety PLC with manual operation; CE compliant

• Other: Hydraulic oil included

• Resulting CNC configuration (with installed options): Y1, Y2, X, R, Z1, Z2, Delta-X

Additional equipment

• Tooling: V12 lower die set and 30° upper blade set (included)
