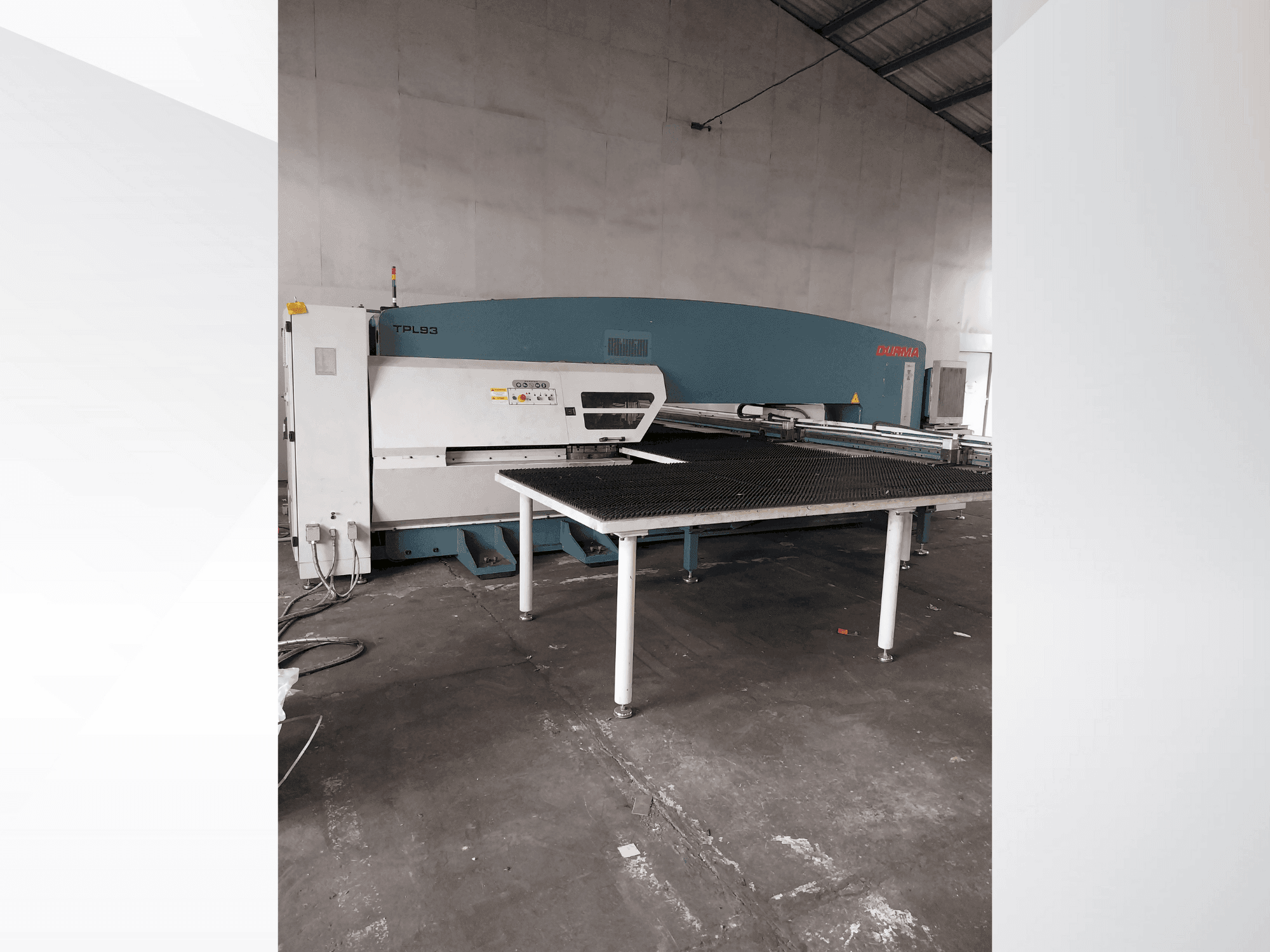

Durma - TPL93HU-PUN-DUR-2019-00001

Machine Benefits

Qualitative Machine Benefits

• Repeat accuracy: ±0. 05 mm
• Max sheet weight at full speed: 120 kg
• Table height: 940 mm
• Table type: brush table
• The turret is equipped with 11 a-fix slots (0. 8–12. 7 mm), 11 b-fix slots (12. 8–31. 7 mm), 2 c-fix slots (31. 8–50. 8 mm), and 1 d-fix slot (50. 9–88. 9 mm); it also includes b-index capability (12. 8–31. 7 mm) and 3 d-index slots (50. 9–88. 9 mm), with a tool turret rotation speed of 22 rotations per minute and an indexable turret speed of 150 rotations per minute.
• Clamping force: 1000 kg
• Main cylinder stroke length: 40 mm
• Max punching stroke length: 25 mm
• Punching force: 20 tons
• Frame type: closed frame

Technical Machine Benefits

• Oil tank capacity: 180 liters
• Air pressure: 6 bar
• Motor power: 7. 5 kw
• Hydraulic motor power: 8 kw/h
• Automatic repositioning: 10000 mm
• Combined x + y max speed: 125 m/min
• Max stroke rate at 1 mm step (lv=1 mm): 1100 strokes/min
• Max stroke rate at 25 mm step (lv=1 mm): 375 strokes/min
• Marking speed: 2800 strokes/min
• Positioning accuracy: ±0. 1 mm

Extra Information

Machine still under power
