- ➤ Used EDELHOFF DARR 1/80 - Press For sale | gindumac.com

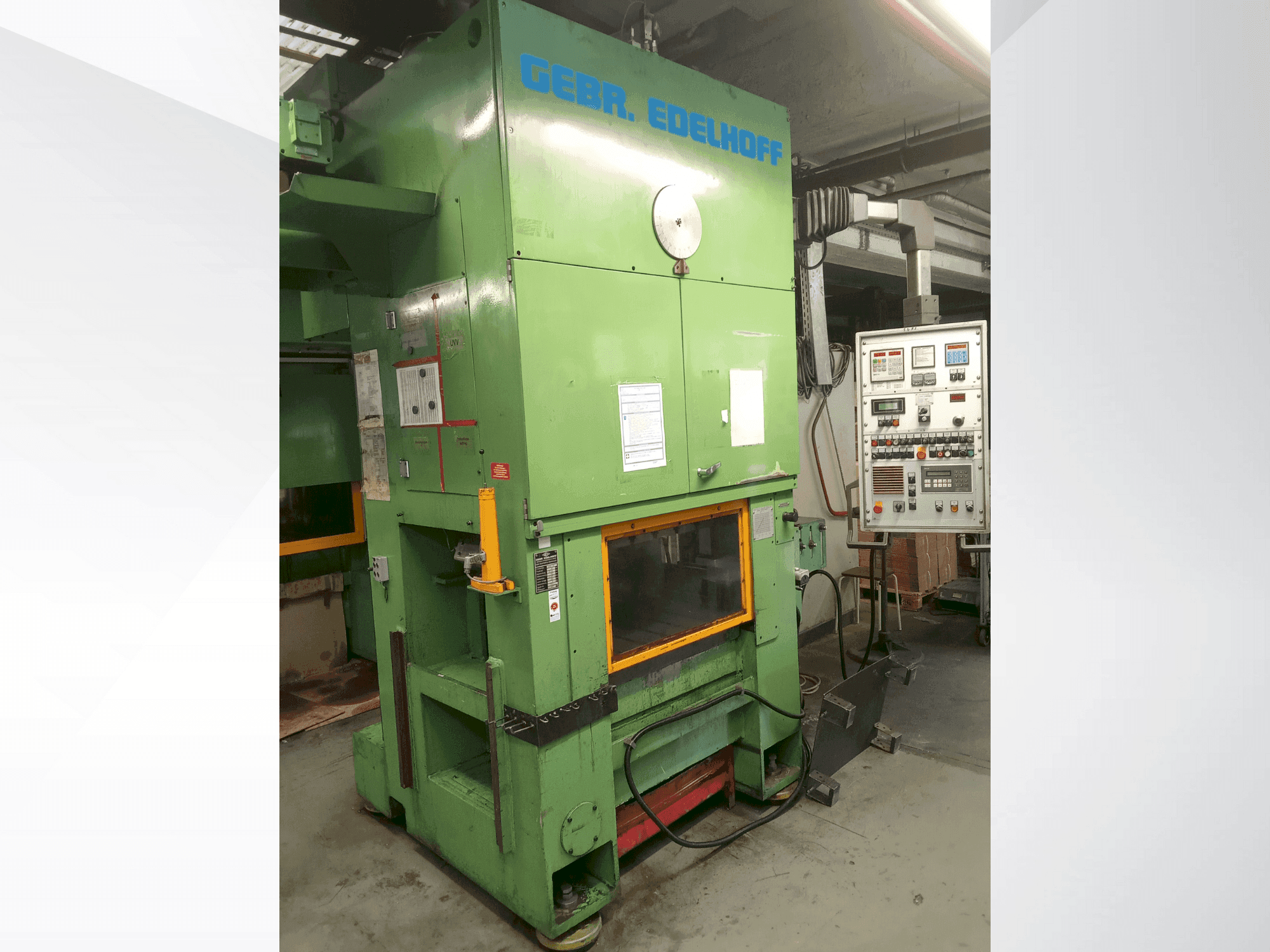

This EDELHOFF DARR 1/80 press was manufactured in 1995. It offers a pressing force of 800 kN with adjustable strokes ranging from 20-80mm and stroke rates from 30-200 per minute. The machine features a substantial table surface of 810x860mm and a maximum distance between table and ram of 450mm. It weighs 9.5 tonnes, suited for robust operations in sheet metal machinery. The EDELHOFF DARR 1/80 machine we have for sale. For more information about this press, please reach out to us.
Overview
- brand: EDELHOFF
- year: 1995
- MODEL: DARR 1/80
- application type: Press
- Location: Germany
- machine type: Press
- availability: Sold
Technical Information - EDELHOFF DARR 1/80
General Data
- Machine weight: 9500 KG
Main drive
- Pressing force: 800 kn
- Stroke: 30-200 stokes/min
- Stroke adjustment: Yes
Table
- Outer length: 810 mm
- Outer width: 860 mm
Additional Information
- Technical Machine Benefits:
- - Stroke adjustment: 100mm
- - Maximum distance between table and ram: 450mm
- - Lateral body clearance: 500mm
- - Table opening: 550x220mm
- - Plunger surface: 810x700mm (width x depth)
- - Frame width: 830mm
- - Pivot hole in ram: 50mm diameter
- - Lateral opening in the press body: 500mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
