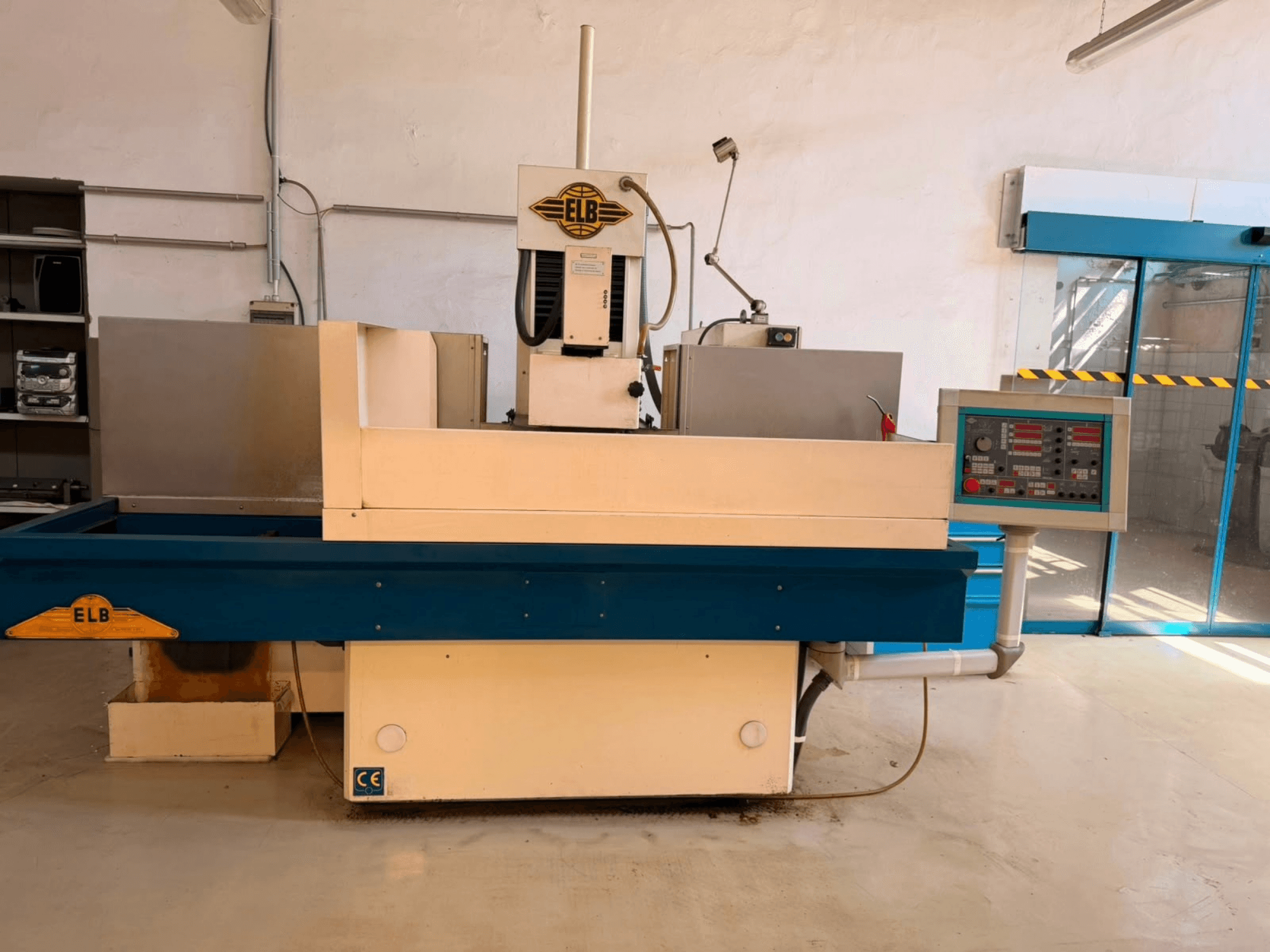

ELB Schliff Perfket 6 SPS-NK surface grinding machine, front view with control panel and blue base, in a workshop setting.
ELB Schliff Perfket 6 SPS-NK surface grinding machine, front view with control panel and blue base, in a workshop setting.

ELB - Schliff Perfket 6 SPS-NKHU-GRI-ELB-2004-00001

22,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis ELB Schliff Perfket 6 SPS-NK was manufactured in 2004. It features a grinding range of 600 mm in length, 400 mm in width, and 475 mm in height. The machine has a maximum table load capacity of 600 kg and a longitudinal stroke of 700 mm. If you are looking to get high-quality surface grinding capabilities, consider the ELB Schliff Perfket 6 SPS-NK machine we have for sale. Contact us for further details.

Overview

  • brand: ELB
  • year: 2004
  • MODEL: Schliff Perfket 6 SPS-NK
  • application type: Grinding
  • Location: Hungary
  • machine type: Surface Grinding Machine
  • Available from: 25/09/2026

Technical Information - ELB Schliff Perfket 6 SPS-NK

Dimensions

  • Machine Height: 2710 mm
  • Machine Length: 2750 mm
  • Machine Weight: 3800 kg
  • Machine Width: 1900 mm
  • Table Load: 600 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 700 mm
  • Y-axis Travel: 475 mm
  • Z-axis Travel: 370 mm

Technical Specification

  • Spindle Power: 5.7 kW
  • Spindle Speed: 2900 RPM

Additional Information

  • Operating voltage: 3 × 400 V

  • Frequency: 50 Hz

  • Total power supply: 11 kW

  • Max. fuse protection: 25 A

  • Control voltage: 24 V DC

  • Grinding range:

    • X (length): 600 mm

    • Z (width): 400 mm

    • Y (height): 475 mm

  • Longitudinal axis X:

    • Table speed: 2–30 m/min

  • Vertical axis Y:

    • Max. feed speed: 300 m/min

    • Min. infeed: 0,001 mm

  • Cross axis Z:

    • Max. feed speed: 2000 mm/min

    • Min. infeed: 0,001 mm

  • Grinding spindle:

    • Taper: 36 mm

    • Drive power: 4,3–5,7 kW

    • Speed range: 1440/2900 rpm

  • Grinding wheel dimensions:

    • Diameter (D): 300 mm

    • Width (T): 50 mm

    • Bore (H): 76.2 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
