- ➤ Used EMAG VTC 100 Vertical Lathe For Sale | gindumac.com

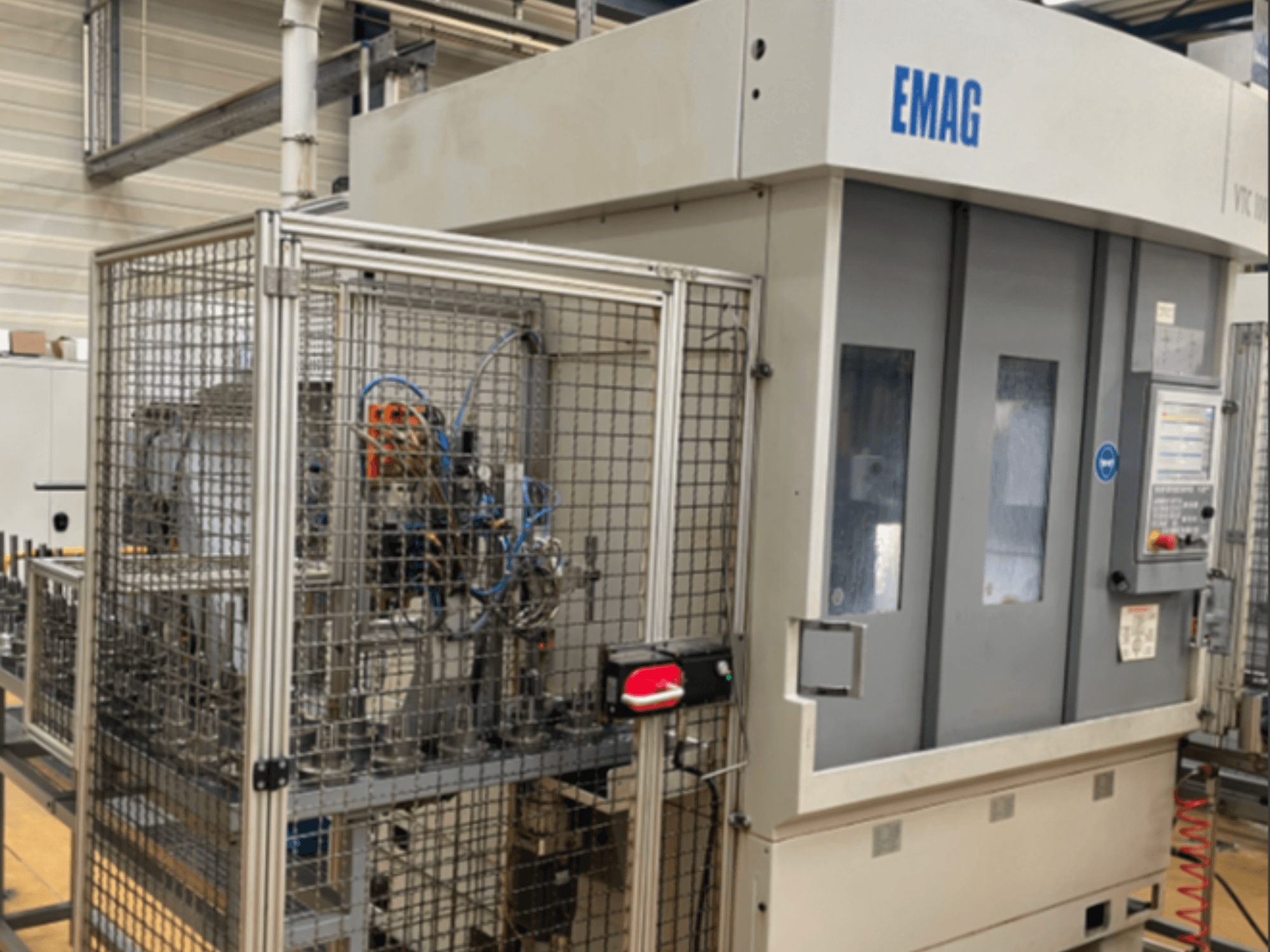

This 4-axis EMAG VTC 100 vertical turning machine was manufactured in 2014. It features dual-turret machining with 2 tool stations, live tooling, and an enclosed working area. The machine is designed for high-volume production and is suitable for shaft machining. If you are looking to get high-quality turning capabilities, consider the EMAG VTC 100 machine we have for sale. Contact us for further details.
Overview
- brand: EMAG
- year: 2014
- MODEL: VTC 100
- application type: Turning
- Location: Switzerland
- machine type: Vertical Turning Machine
Technical Information - EMAG VTC 100
Movement
- Number of Axes: 4
- X-axis Travel: 332 mm
- Z-axis Travel: 625 mm
Technical Specification
- Driven Tools: Yes
Additional Information
4x units
CNC Control: Siemens SINUMERIK
Turrets: 2
Live Tooling: Yes
Enclosed Working Area
Hydraulic Chuck
Automatic Workpiece Handling
Dual-Turret Machining
Suitable for Shaft Machining
Suitable for High-Volume Production
The technical specifications may vary slightly as these are custom made machines
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
