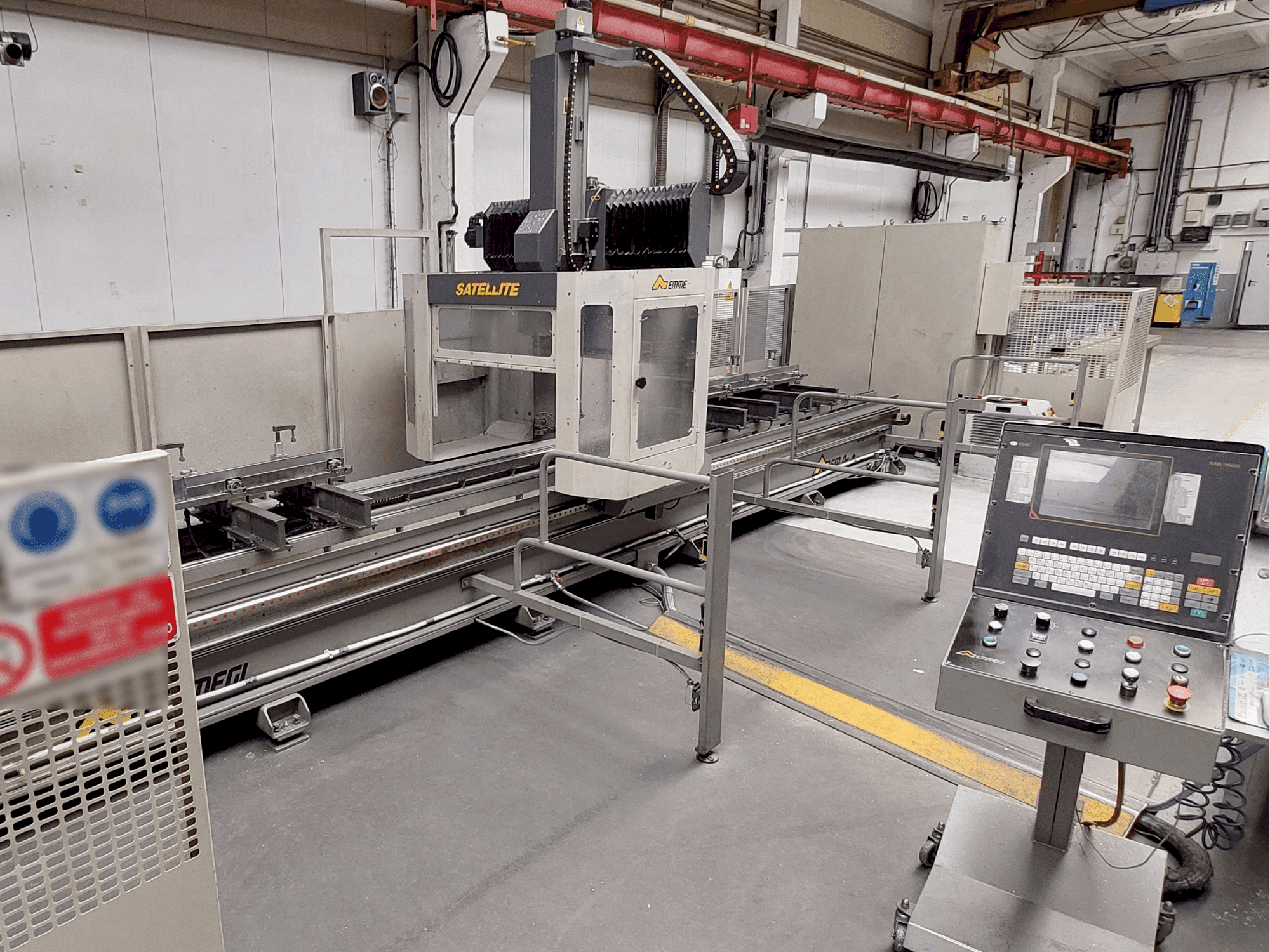

Front view of Emmegi Satellite TU6.5  machine

Emmegi - Satellite TU6.5PL-MIL-EMM-2000-00001

17,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis Emmegi Satellite TU6.5 was manufactured in 2000. It features a large working area with X-Axis at 6500 mm, Y-Axis at 800 mm, and Z-Axis at 700 mm. The B-Axis offers full 360° rotation, and the C-Axis provides ±180° movement. With rotational speeds up to 24,000 rpm, this universal machining center represents a robust opportunity for precision machining. Contact us for further details regarding this universal machining center.

Overview

  • brand: Emmegi
  • year: 2000
  • MODEL: Satellite TU6.5
  • production hours: 44223
  • application type: Milling
  • Location: Poland
  • machine type: Universal Machining Centre
  • availability: Immediately

Technical Information - Emmegi Satellite TU6.5

General Data

  • Machine weight: 6700 kg

Main drive

  • Spindle speed range: 20000 rpm 1/MIN
  • Spindle motor power: 7 kW

Movement

  • X-AXIS Movement: 6500 mm
  • Y-AXIS Movement: 800 mm
  • Z-AXIS Movement: 300 mm
  • B-AXIS Movement: 0° to 90° MM
  • C-AXIS Movement: 0° to 360° MM
  • AXIS 1 Movement: 360 °
  • AXIS 2 Movement: ±180 °

Tools

  • Type of tool holder: ISO 30

    Additional Equipment

    • - Tool Magazine Capacity: 8 + 1 tools
    • - Positioning of Clamping Devices: Automatic
    • - Independent, X-Axis Adjustable Working Areas: 2

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum positioning speed of x-axis: 40 m/min
        • - Maximum positioning speed of y, z axes: 30 m/min
        • - Maximum positioning speed of b, c axes: 22. 5 u/min
        • - Maximum workpiece length (top surface processing): 6890 mm
        • - Maximum workpiece length (processing on all four sides): 6650 mm
        • - Maximum workpiece width (top surface processing): 760 mm
        • - Maximum workpiece thickness (with 80 mm tool length): 200 mm
        • - Installed power: 23 kw
        • - Operating pressure: 6 - 8 bar
        • - Air consumption per working cycle: 150 n/min

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
