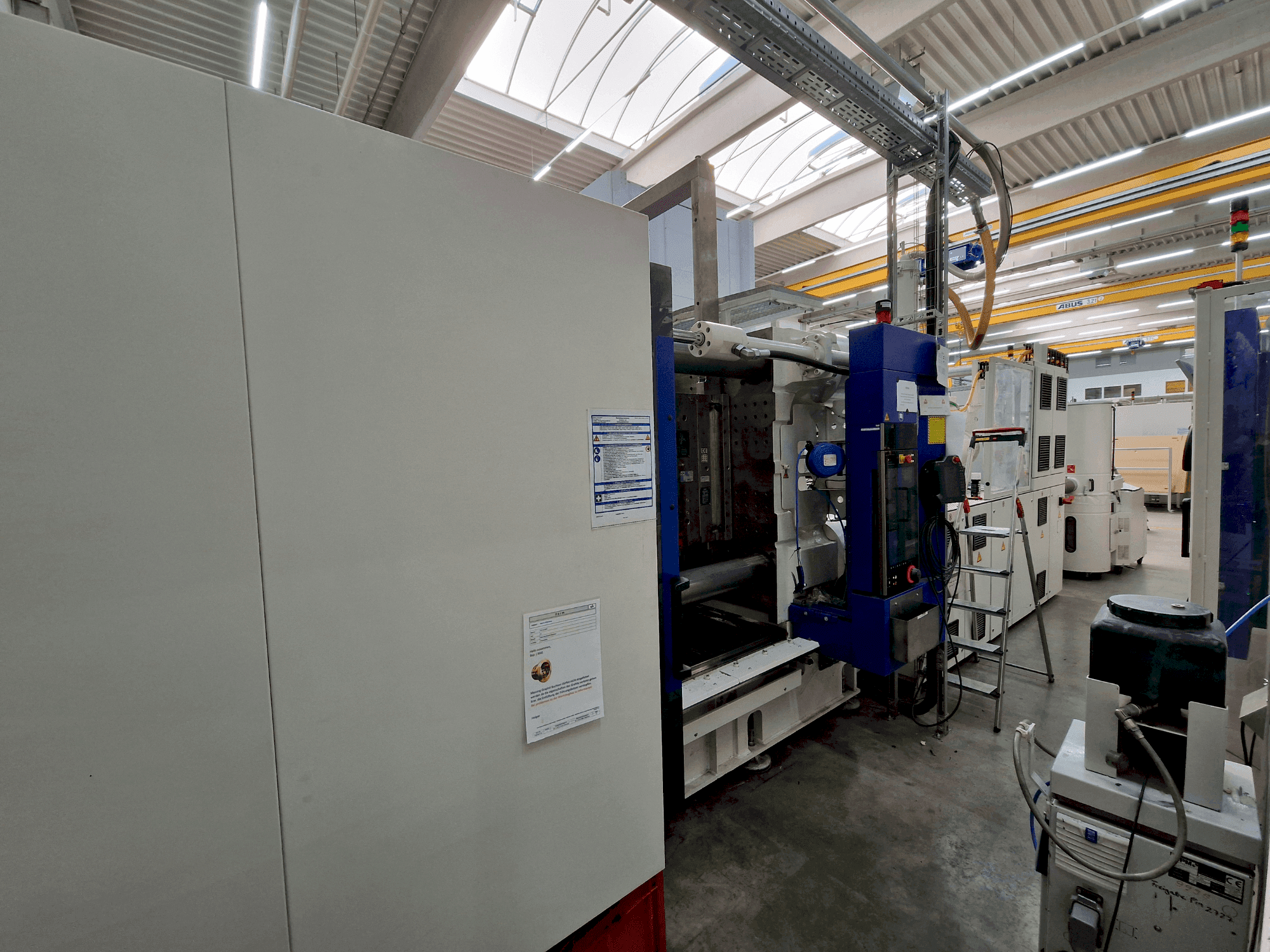

Engel - duo 2400/650DE-INJ-ENG-2019-00004

Additional Equipment

• - Oil Reservoir Capacity - Injection Unit: 500 l
• - Maximum Cooling Power (32°C Water Inlet): 29.40 kWcool
• - Water Consumption (32°C): 4.80 m3/h

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum injection capacity: 890 cm³
  • - Screw torque: 2000 nm // maximum screw speed @ reduced torque: 275 min-1
  • - Reduced torque @ maximum screw speed: 1600 nm
  • - Recovery rate (3-zone screw): 51 g/s // recovery rate (barrier screw): 67. 1 g/s
  • - Injection rate: 353 cm³/s
  • - Nozzle stroke: 950 mm
  • - Ld ratio: 24. 0
  • - Heating zones incl. Nozzle: 8 // heating wattage: 27. 5 kwel
  • - Opening force with pressure pad: 510 kn
  • - Maximum distance between platens: 1750 mm
• Qualitative Machine Benefits:
  • - The machine has electric water batteries (4 e-flomos with 8 circuits each).
  • - The injection units are fitted with accumulators which enable a high injection pressure of up to 2400 bar with a 60 mm screw.

Extra information

• - Drop Out Chute Width: 1100 mm/ Weight of the Clamping Unit: 20000 kg/ Maximum Mold Weight Moving Platen: 7330 kg/ Maximum Mold Weight Stationary Platen: 7330 kg/ Maximum Mold Weight Total: 11000 kg/ Dry Cycle (Euromap 6) Stroke: 700 mm/ Dry Cycle (Euromap 6) Time: 2.9 s/ // Control system: Monocompute CC300 with: 21.5” full HD touchscreen/ USB interface/ Ethernet connection/ e-move control element/ 3 keycards for user login/ Graphic symbols for cycle control/ Screen languages: German, English/ Acoustic error signal/ Signal light for error display/ Power Control program (for optimizing motor performance during dispensing)/ Mould parallelism measurement/ IQ Weight Monitor - monitoring of shot weight & viscosity/ IQ Weight Control - automatic adjustment of injection parameters in the event of fluctuations/ Quality monitoring interface (injection time, dosing time, pressure, cycle time)/ Continuous ejection possible when monitoring is deactivated/ Reinforced clamping plates (FAP & BAP +50 mm each)/ Reduced min. and max. tool height and max. panel distance (-100 mm due to reinforcement)/ FAP: smallest possible platen opening, spherical calotte as small as possible/ BAP: without ejector opening/ Additional threads according to EUROMAP VOL1/ Centering grooves according to drawing/ Plate ejector - variant A (adapted according to clamping pattern)/ Safety interface for ejector/ Hydraulic core pull: 1-fold on moving platen/ 2-fold on fixed platen/ 2-fold on moving platen with PQ proportional valve, volume measurement, pressure/speed adjustment/ Interface for intermediate position for core pull/ Mold heating: 16 heating circuits/ Max. 40 kW heat output/ According to Euromap 14/ Temperature monitoring interface (moving & fixed platen)/ 4-fold hydraulic mold nozzle control/ Separate cooling water connection for tool and machine/ Temperature control unit interface, Engel protocol, 20 mA current loop/ 4-way flow regulator (0-10 l/min)/ Hose specification: max. 90 °C / 4 bar/ Hoses for mold cooling/ 4 temperature control circuits at the rear of the machine/ Rinsing nozzle with hose clamp/ 2x ENGEL e-formo temperature control system (1-15 l/min, 8 circuits, 120 °C max.)/ 1 distributor for fixed plate, 1 for movable plate/ Additional e-formo unit on operating side (optional)/ ENGEL ecodrive S+V3 (speed-controlled servo drive)/ Closed control system for pressure and speed (closed loop)/ 2x 50-liter hydraulic accumulator (for spraying process)/ Battery position at the front, as per drawing/ Oil cooler with standard capacity/ Machine is supplied without oil filling (note: oil contains zinc during commissioning)/ Quiet, energy-efficient hydraulics with: Optimized control behavior/ Oil-friendly filtration/ Oil preheating and oil cooling/ Bi-metallic cylinder (Fe-based), abrasion & corrosion resistant/ Suitable for temperatures up to 350 °C/ Additional zone heating on the barrel/ Thrust washer (diaphragm) for screw S8, 60 mm Ø, L/D 24, geometry G1/ UNR9 RGB non-return valve (powder metallurgical chrome steel)/ Flange corrosion-resistant/ Special nozzle open, corrosion-resistant, flange thread V445x3, radius 15 mm, bore 8 mm/ Nozzle outlet suitable for hot runner connection/ 230 V cylinder & nozzle heating/ Ceramic cylinder covers/ Insulation of all heating areas (not suitable for PC, PMMA, PVC, etc.)/ Supply voltage: 3×400 V + N + PE / 50 Hz/ Schuko sockets (230 V), max. 2 pieces/ 3-phase CEE socket outlet (10/16 A)/ Potential-free contacts (4 inputs / 4 outputs) - freely programmable/ Interfaces: Euromap 13 - Core pull end positions/ Euromap 14 - Heating/ Euromap 63 - Online data access/ Euromap 65 - Tank calculation/ ENGEL easix robot (KR 60) - special version/ Robot control unit not integrated multiple times/ Assembly & test at ENGEL/ Operating instructions: printed + CD (German)/ EN 201 conformity (machine safety)/ Paint finish: RAL 9002 (gray-white) & RAL 5002 (ultramarine blue) - special paint according to ENGEL design/ e-connect.24 basic package (remote maintenance)/ Machine feet (standard version)/ Labeling in German/ All 4 E-Flomo units were completely renewed by ENGEL
