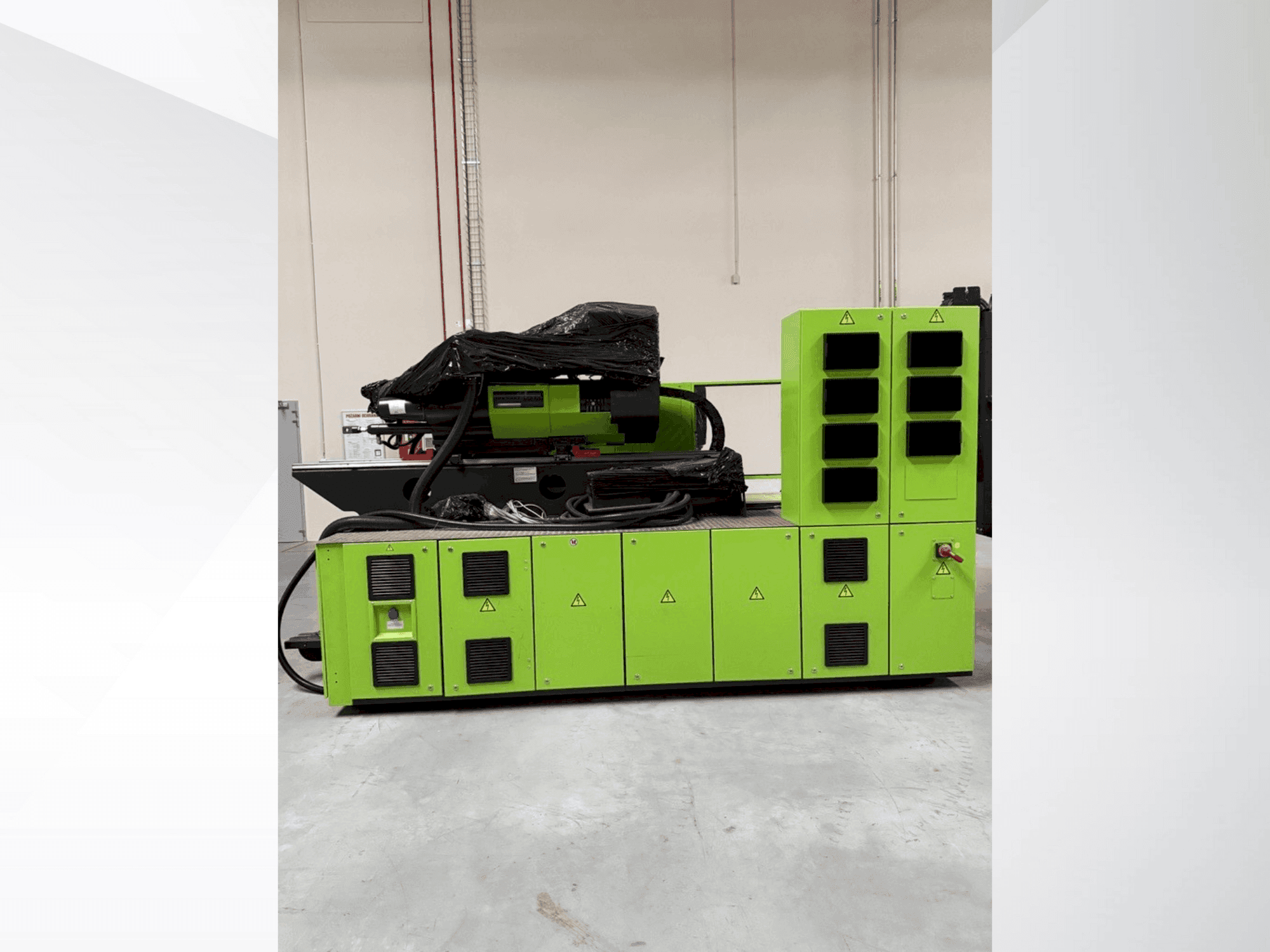

Engel - E-Duo 740H-740L-700 combiCZ-INJ-ENG-2017-00001

2 x 3-zone screws d50 / 32 hot runner control circuits

Max mold weight (total): 11000 kg / max mold weight per plate: 7300 kg / max distance of the molds center of gravity from clamping surfaces: 315 mm

Opening force (with pressure pad) kN 510

Opening force: 130 kN

Platen size (H × V): 1510 × 1440 mm

Distance between tie bars (H × V): 1100 × 960 mm

Tie bar diameter: 175 mm

Max. mold weight: 11000 kg

Injection Unit 1

• Injection capacity: 318 cm³

• L/D ratio (3-zone screw): 24

• Recovery rate (3-zone screw): 31 g/s

• Injection rate: 281 cm³/s

• Nozzle stroke: 600 mm

• Heating wattage: 16 kW

• Electric screw drive: 34 kW

• Torque at 60% duty cycle: 903 Nm

Injection Unit 2

• Injection capacity: 318 cm³

• L/D ratio (3-zone screw): 24

• Recovery rate (3-zone screw): 31 g/s

• Injection rate: 281 cm³/s

• Injection pressure (regenerative): 2400 bar

• Nozzle stroke: 600 mm

• Heating capacity: 16.2 kW

• Number of heating zones incl. nozzle: 6

• Electric screw drive: 34 kW

• Torque at 60% duty cycle: 903 Nm
