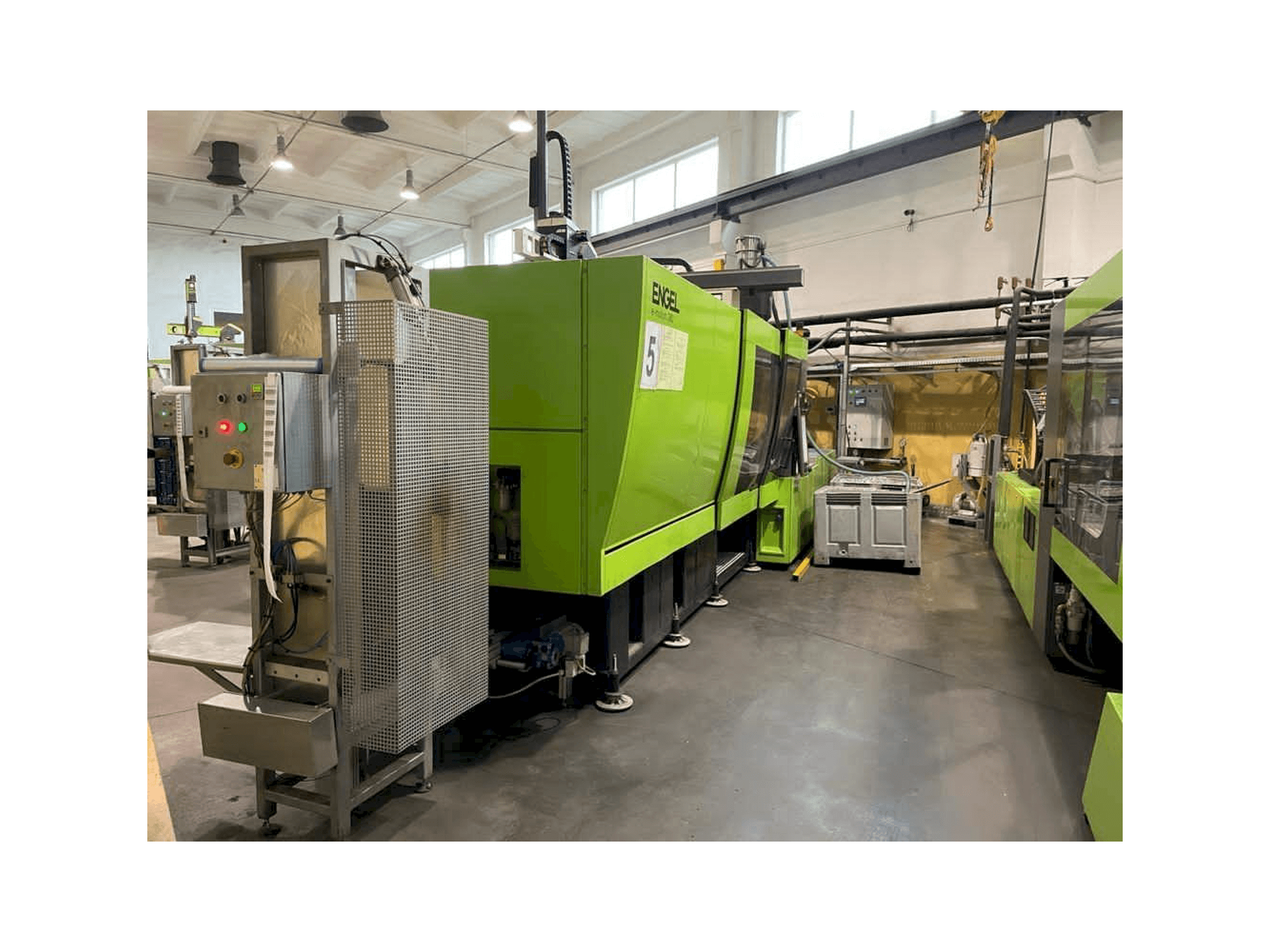

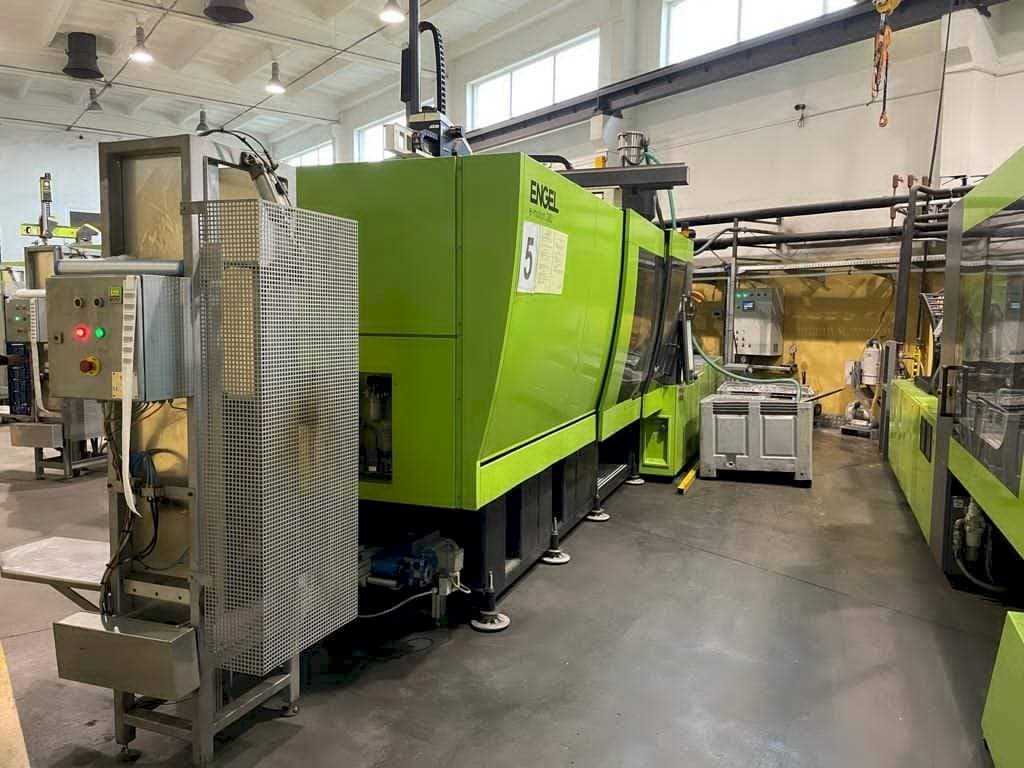

Front view of ENGEL e-motion 2440/380 T machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Engel e-motion 2440/380 T

Engel - e-motion 2440/380 TPL-INJ-ENG-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

This ENGEL e-motion 2440/380 T Injection Moulding Machine was built in Austria in the year 2014. It has a record of 46781 working hours. This machine works through a Microcomputer CC300 of 21,5" full-HD color touch-screen. It incorporates a clamping force of 3800 kN and an opening stroke 700 mm. This machine comes equipped with a new Engel Viper 20 robot. It is a highly efficient injection unit, which ensures ultra-fast injection and it is all-electric and energy efficient. This machine is still at production and includes its full service documentation and manuals.

Overview

brand: Engel
year: 2014
MODEL: e-motion 2440/380 T
production hours: 46781
application type: Injection Moulding
Location: Poland
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - Engel e-motion 2440/380 T

General Data

Measurements width: 8216 mm
Measurements depth: 3208 mm
Measurements height: 5039 mm
Machine weight: 14900 kg

Control Unit

Model: CC300

Clamping unit

Clamping force: 3800 kN
Opening stroke: 700 mm
Mould height min: 300 mm
Mould height max: 750 mm
Size of mold platens: 1140 x 1140 mm
Ejector force for / back: 120 kN

Media

Main electronic connection: 3 x 400 V+ N +PE / 50 Hz

Additional Equipment

- Engel Viper 20 robot – new, not used

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dosing path: 310 mm
- - Column spacing: 780 x 780 mm
- - Nozzle stroke: 500 mm
- - All-electric and energy efficient.
- - High performance and precision. Fast, dynamic and highly precise movements through a five-point toggle lever clamping system with low friction platen guidance on precision linear bearings. Highly efficient injection unit ensures ultra-fast injection
- - Maximum energy efficiency due to the consistent use of servo-electric drive technology with maximum effectiveness
- - Platens in standard size - type of euromap
- - Platens with locating diameter in standard execution euromap - centering 160 mm
- - Direct drive ejector bg4 max force: 120 kn
- - S8 barrier screw, geometry g16 r with r-mixing head - diameter 70 mm - screw length l/d 24
Qualitative Machine Benefits:
- - The machine is still at the production and can be checked for request.
- - Full service documentation and manuals.
- - Engel viper 20 robot included in the offer, it was not use at the production.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
