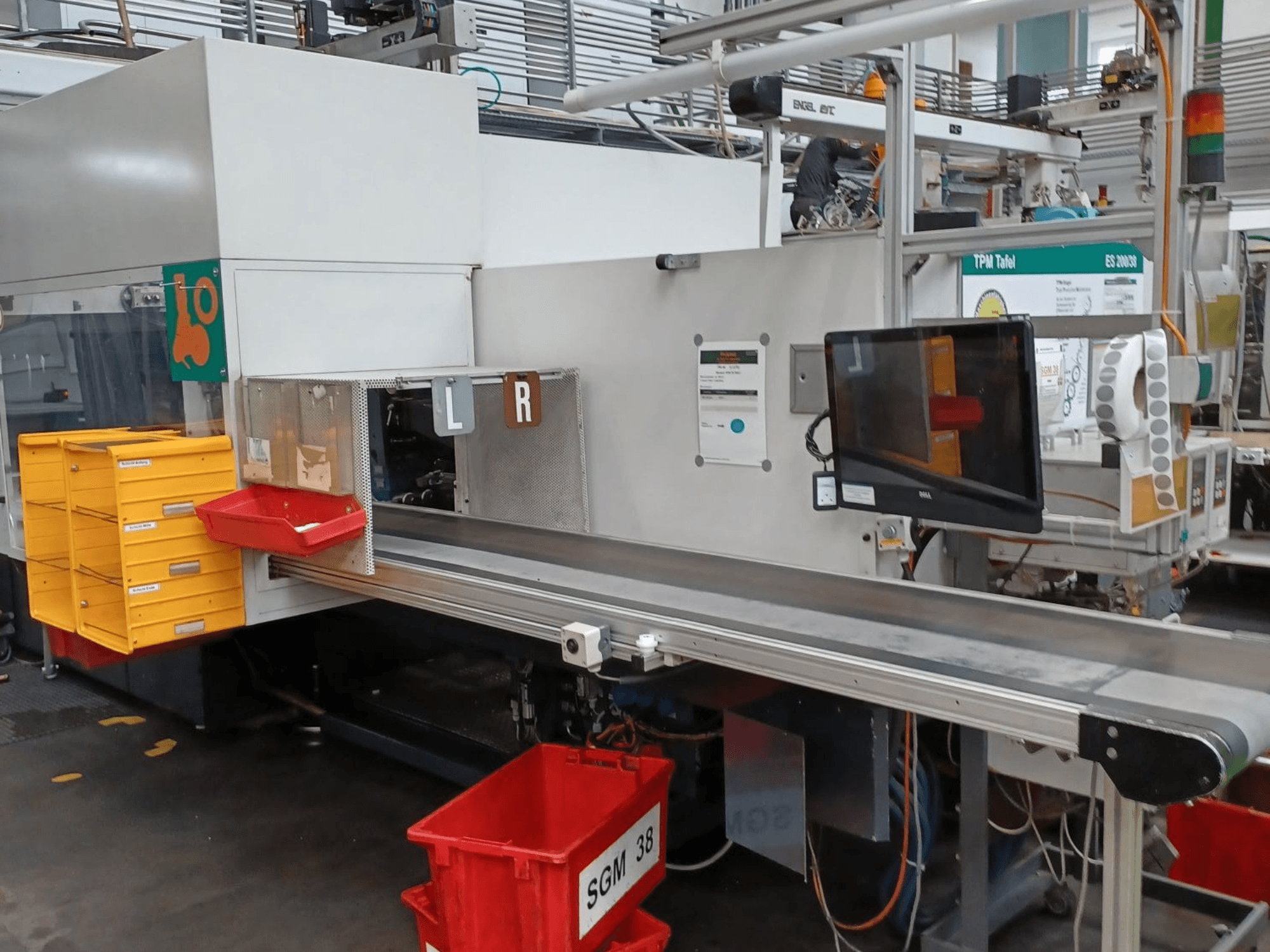

Engel - Engel ES650H/200W-200HL-2F (2000)DE-INJ-ENG-2000-00002

• Condition: Well-maintained and serviced

• Clamping unit:

  • Mold weight: 1500 kg

  • Total weight: 3000 kg

  • Tie-bar distance (H × V): 920 × 750 mm

  • Platen size: 1150 mm

  • Opening stroke: 700 mm

  • Daylight (opening): 700 mm

  • Min. mold height: 450 mm

  • Max. mold height: not specified

  • Ejector stroke: 150 mm

  • Ejector force: 61 kN

  • Return force: not specified

  • Centering diameter (A side): 110 mm

  • Centering diameter (B side): 90 mm

  • Locking system: Hydraulic / Pneumatic

  • No. of cores: 4

  • Rotary table control: Yes

  • Core pull control: Yes

  • Index plate control: Yes

• Injection unit 1 (650H):

  • Max. shot volume: 200 cm³

  • Stroke volume: 392 cm³

  • Screw diameter: 50 mm

  • L/D ratio: 20

  • Screw speed: 290 rpm

  • Injection pressure: 1240 bar

  • Injection speed: 120 g/s

  • Plasticizing rate: 41 g/s

  • Nozzle orifice: 15 mm

  • Pump installed: 30 / 12.3 kW

• Injection unit 2 (200W):

  • Max. shot volume: 140 cm³

  • Stroke volume: 69 cm³

  • Screw diameter: 25 mm

  • L/D ratio: 24

  • Screw speed: 480 rpm

  • Injection pressure: 2000 bar

  • Injection speed: 60 g/s

  • Plasticizing rate: 12 g/s

  • Nozzle orifice: 15 mm

  • Pump installed: ~6.8 kW

• Controls and functions:

  • SPC (Statistical Process Control): Yes

  • Pressure interface: Yes

  • 2nd injection barrel: Yes

  • Mold monitoring: No

  • Special programs: Yes

Additional equipment

• Take-out device (robot): ERC 23/1-E

  • Travels: X = 500 mm, Z = 1400 mm

  • Max. mold dimensions (Y-axis): 1000 mm

• Hot runner control: 18 zones

• WZ sensor system: p–z–t–σ (Kistler)

• Additional equipment: GealanXcomp

• Automation cell: No

• Filter dryer: No
