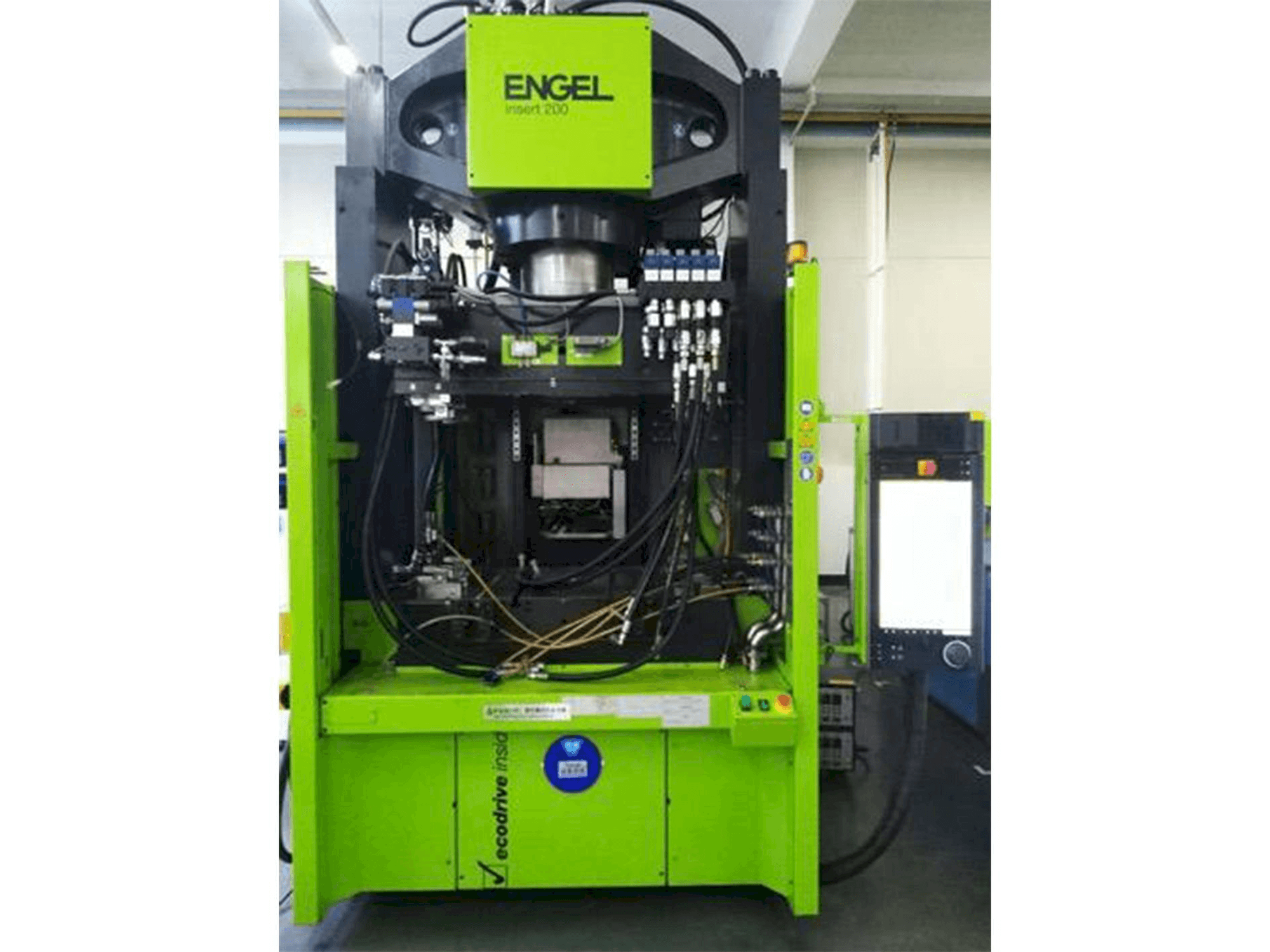

Front view of ENGEL insert 1350H / 200 with MuCell  machine

Engel insert 1350H / 200 with MuCell

Engel - insert 1350H / 200 with MuCell

2015

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This ENGEL insert 1350H / 200 with MuCell injection moulding machine was built in 2015. It has a total of 18122 production hours and works with a CC300 control unit. This machine has a clamping force of 2500 kN, and a screw diameter of 55 mm. Also works with an injection rate of 330 cm3/s and an injection pressure of 1763 bar. 2 UNITS AVAILABLE

Overview

  • brand: Engel
  • year: 2015
  • MODEL: insert 1350H / 200 with MuCell
  • production hours: 18122
  • application type: Injection Moulding
  • Location: China
  • machine type: Injection Moulding Machines
  • availability: Sold
  • GINDUMAC ID: CN-INJ-ENG-2015-00001

Technical Information

Injection Unit

  • Screw diameter: 55mm
  • Injection pressure: 1763 bar
  • Screw speed: 254 r/min

Clamping unit

  • Clamping force: 2500 kN
  • Opening stroke: 405 mm
  • Ejector stroke: 160 mm
  • Ejector force for / back: 20,1 kN

    Additional Equipment

    • - incl. MuCell

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max swept volume 618 cm3
        • - Injection rate 330 cm3/s
        • - Nozzle stroke 500 mm
        • - Increased clamping force from 2000kn to 2500kn
        • - 2 core pulls stationary platen
        • - 2 core pulls movable platen
        • - P/q hydraulic valves for core pulls
        • - Setting options for p/q valves
        • - Euromap 67
        • - Mico hydraulic quick clampin

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
