➤ Used ERGOMAT TNG 32 For Sale | gindumac.com

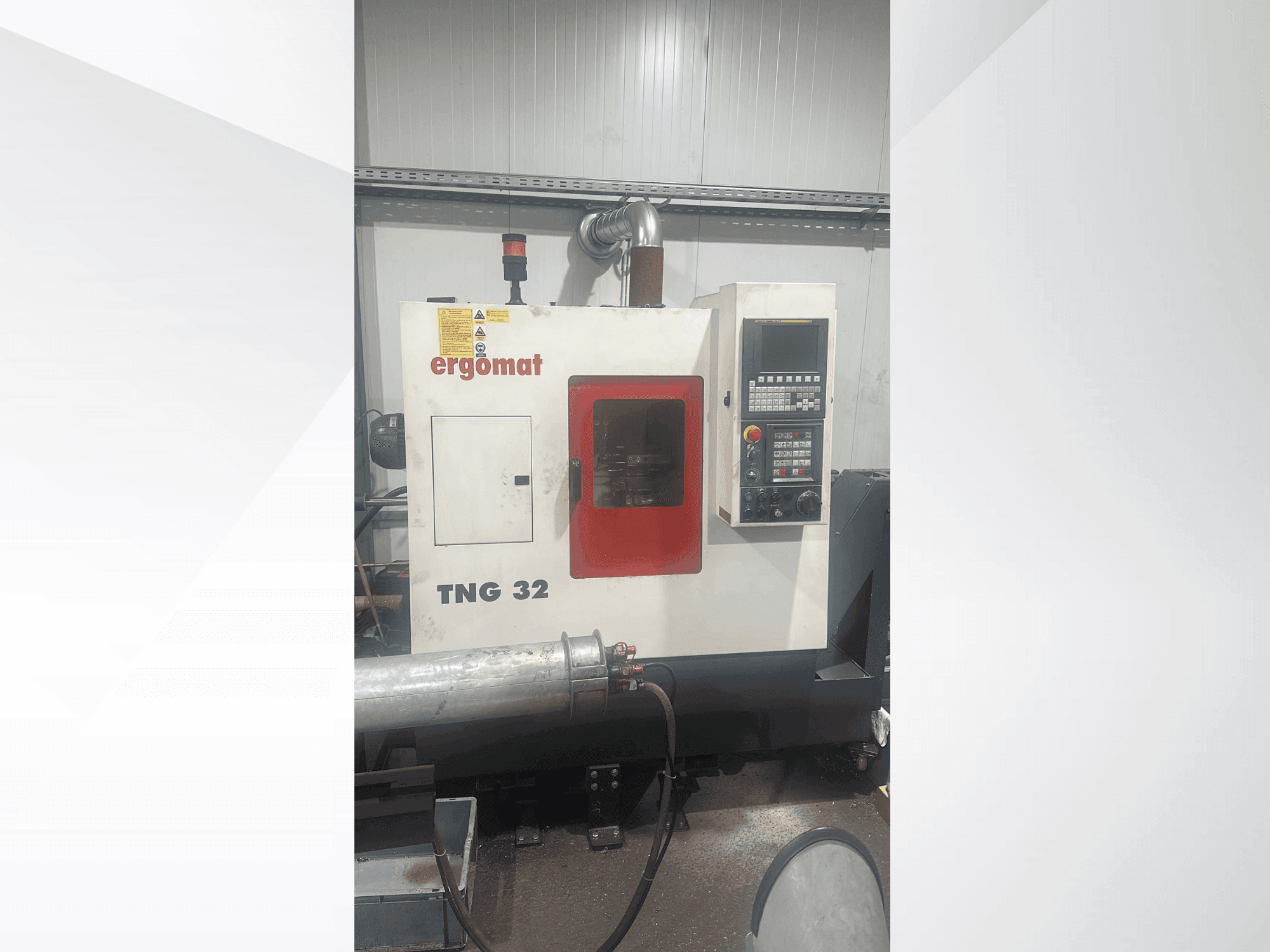

This ERGOMAT TNG 32 was manufactured in 2022. It features a spindle with a bar capacity of Ø 32 mm and a maximum speed of 5000 rpm. The horizontal turning machine includes a Fanuc Oi-TF control and an LNS bar loader with a 3m capacity. Consider the opportunity to buy this ERGOMAT TNG 32 horizontal turning machine. Contact us for more information.

Overview

brand: ERGOMAT
year: 2022
MODEL: TNG 32
application type: Turning
Location: Croatia
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - ERGOMAT TNG 32

Control Unit

Control Brand: FANUC
Control Model: Oi-TF

Movement

X-axis Travel: 300 mm
Z-axis Travel: 175 mm

Technical Specification

Spindle Speed: 5000 RPM
Tool Stations: 7

Additional Information

Additional equipment

LNS Bar Loader 3m

Machine Benefits

Technical Machine Benefits

Power at 100% / 40% ed: 3. 7 / 4. 4 kw
Bar capacity: Ø 32 mm
Tool holder: block for 3 tools, shaft Ø 20mm, individual shaft Ø 20mm, individual square shaft 12 x 12 mm
Cross slide "gang-type": travel speed in x / z 12 / 20 m/min
Cooling system: coolant pressure 4 bar, tank capacity 100 liters
Parts deflector: parts length max. 75 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
