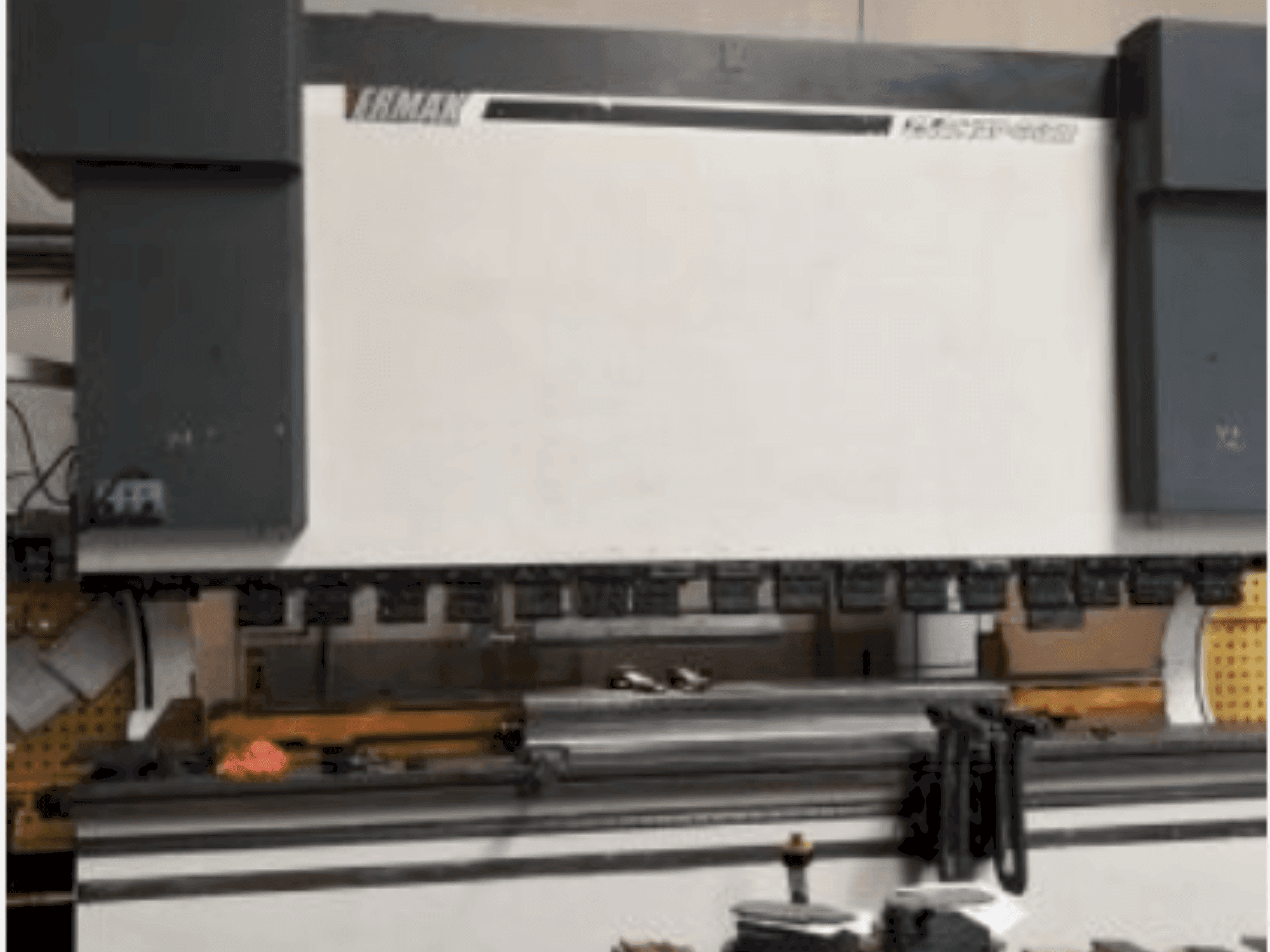

Front view of ERMAK CNC HAP 4100x400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ERMAK CNC HAP 4100x400

Photo Gallery

ERMAK - CNC HAP 4100x400 HU-BEN-ERM-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used ERMAK CNC HAP 4100x400 For Sale | gindumac.com

This ERMAK CNC HAP 4100x400 was manufactured in 2006. It features a CYBELEC DNC 60 control system, a maximum working length of 4100 mm, and a press force of 400 t. The internal distance between columns is 3550 mm, and it includes a laser safety system. Consider the opportunity to buy this ERMAK CNC HAP 4100x400 hydraulic press. Contact us for more information about this machine.

Overview

brand: ERMAK
year: 2006
MODEL: CNC HAP 4100x400
application type: Bending
Location: Hungary
machine type: Hydraulic Press

Technical Information - ERMAK CNC HAP 4100x400

Dimensions

Machine Depth: 5450 mm
Machine Height: 3150 mm
Machine Weight: 24500 kg

Technical Specification

Max. Stroke: 300 mm

Additional Information

Max. working length: 4100 mm
Internal distance between columns: 3550 mm
Column depth: 585 mm
Table width: 340 mm
Axes: 4 NC axes
Safety system: Laser
Bending speed: 100 mm/sec
Supply voltage: 3×400 V, 50 Hz
Performance recording: 30 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
