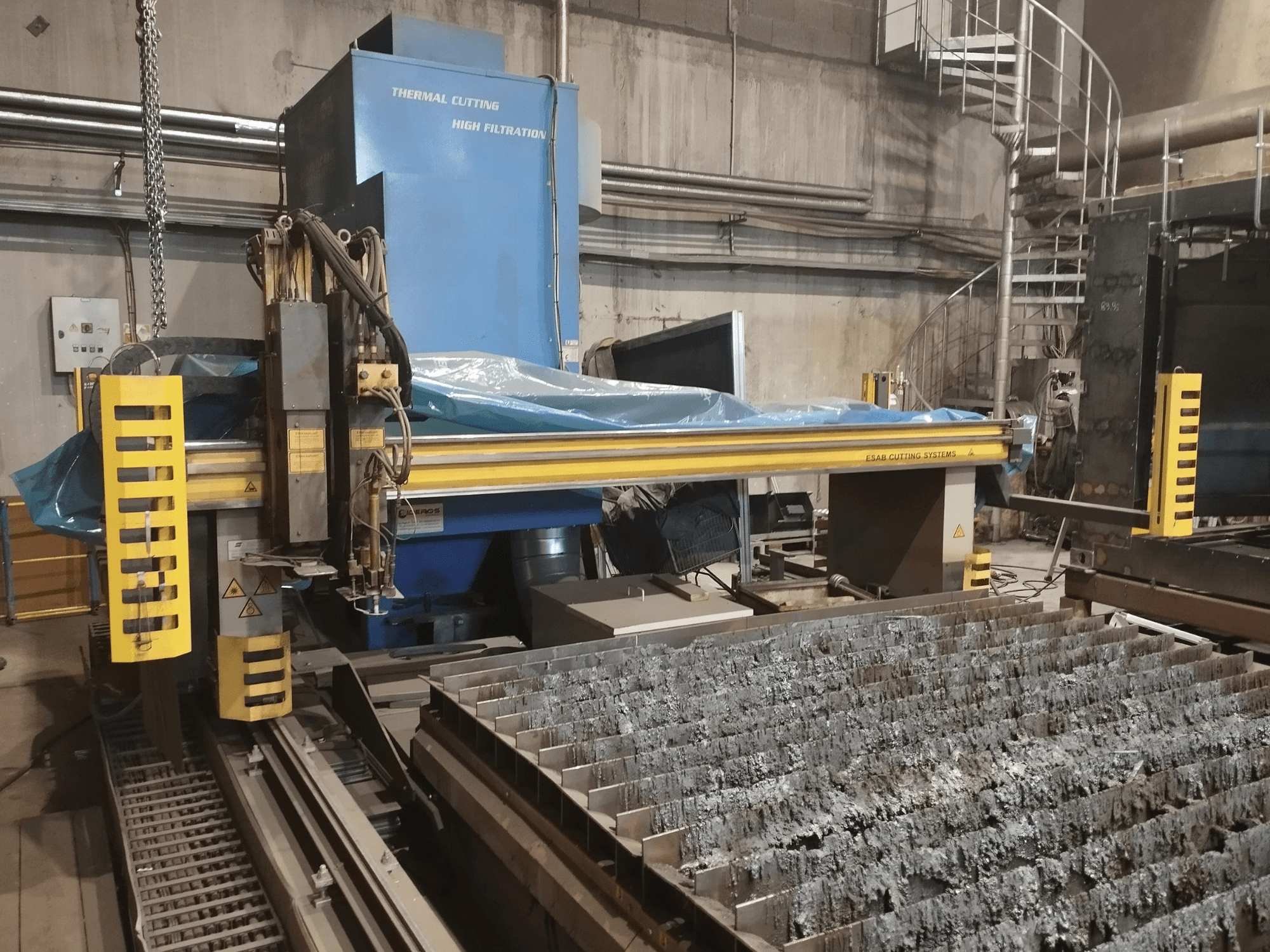

ESAB - Combirex DX3500 OxyEE-CUT-ESA-2012-00002

• Table size: 2,500 x 13,000 mm

• Cutting area: 2,700 x 12,950 mm

• Table height: 700 mm

• Max material thickness: 125 mm

• Plasma generator: ESAB Precision Plasma M3 Gen 2, 360 A

• Plasma torch: PT 36

• Gas torch: Cool Jet (1 unit)

• Control system: CNC Vision 51

• Power supply: Machine 1 x 230 V 50 Hz; Plasma 3 x 400 V 50 Hz

• Operating hours:

  • Plasma torch: 2,795 h

  • Gas torch: 1,979 h

• Gantry and drive:

  • High-performance cutting gantry

  • Linear control, AC motor drives, double-sided rack and pinion

  • Positioning speed max. 24,000 mm/min

  • Continuous gantry position monitoring

• Plasma and gas cutting:

  • Plasma gases: Technical air, N₂, O₂, H35

  • Max piercing: 40 mm (CS/SS/Al)

  • Cutting speed (CS): 12 mm – 4,200 mm/min; 25 mm – 2,000 mm/min; 38 mm – 1,000 mm/min

  • Automatic piercing, capacitive height control

  • HF start system

  • Cutting quality: ISO 9013 Class 3

• Protection and environment:

  • Dust protection: IP54

  • Relative humidity: 10–85% (no condensation)

• Dimensions and installation:

  • Cutting table: 17-section

Additional equipment

• Filter unit: ECO 16 CT (extraction/filtration)
