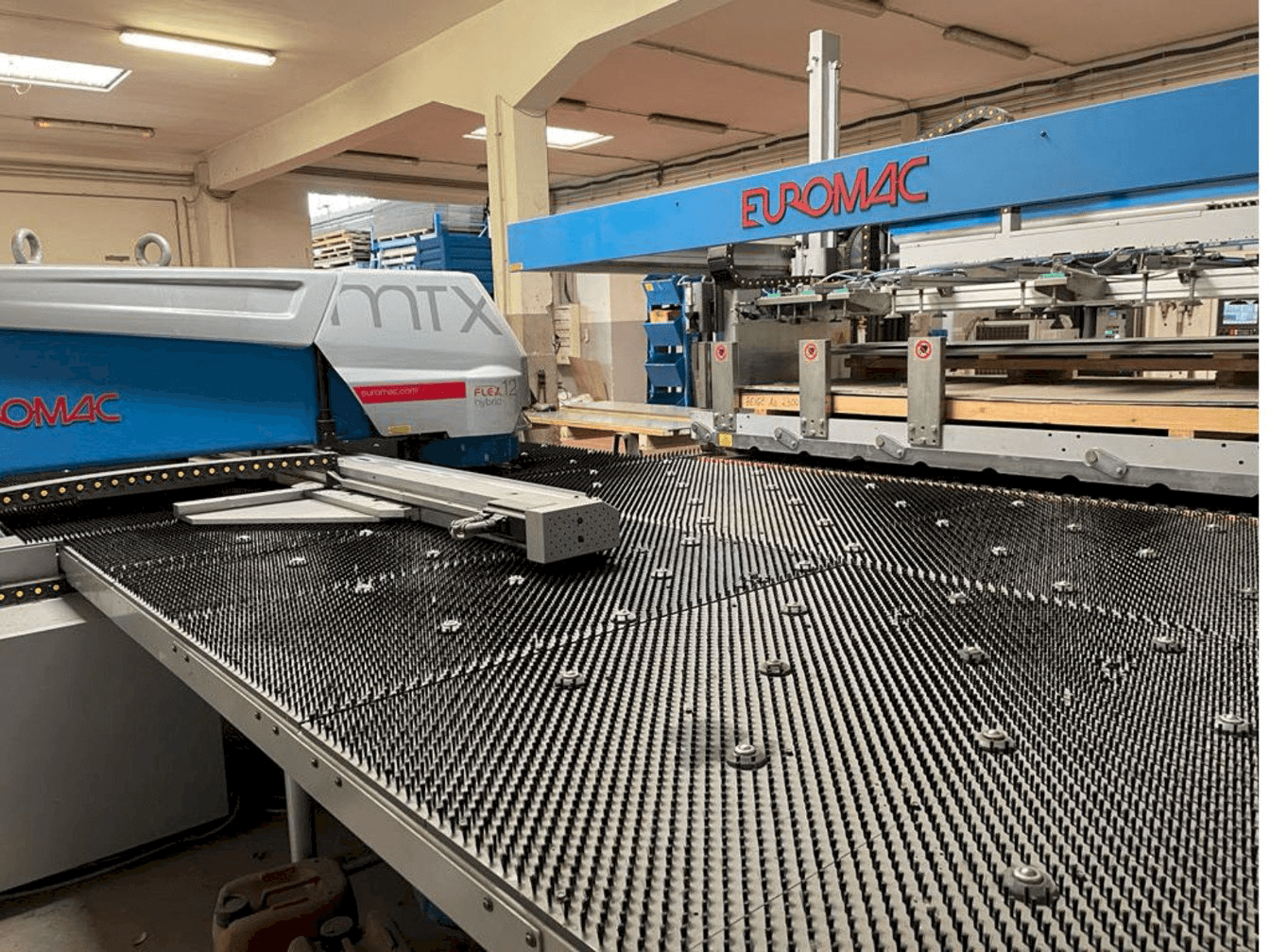

This Euromac MTX Flex 12 Hybrid Punching machine was manufactured in the year 2014 in Italy and has 6200 hours. It is controlled by a Euromac control unit. The machine has a punching force of 300 kN, and several tools are included as additional equipment. The machine comes with sheets loading and unloading system included in the price.
Overview
- brand: Euromac
- year: 2014
- MODEL: MTX Flex 12 Hybrid
- production hours: 6200
- application type: Punching
- Location: Italy
- machine type: Turret Punch Press
Technical Information - Euromac MTX Flex 12 Hybrid
Movement
- X-axis Travel: 2500 mm
- Y-axis Travel: 1250 mm
Technical Specification
- Punching Force: 300 Kn
Additional Information
Additional equipment
- Several tools included
- The machine comes with sheets loading and unloading system included in the price
Machine Benefits
Qualitative Machine Benefits
- Nibbling with 1 mm pitch: 1000
- Marking: 2000 thickness range (mm): 0. 6 - 6
- Max. Sheet metal weight at reduced axle speed (kg): 150
- Usb port: 6
- Installed power (kw): 8. 5
- Average consumption (kw/h): 4. 5
Technical Machine Benefits
- Y axis with multitool /monopunch (mm) y = 1250
- Automatic repositioning in x (mm) up to 10000
- Numerically control stroke depht (mm) from 0. 1 to 31
- Hydraulic servomotor controlled system standard
- Position accuracy (mm) +/- 0. 05
- Precision in forming repeatability (mm) +/- 0. 1
- Bidirectional autoindex stations: 3
- Opening of clamps (mm): 11
- Automatic positioning clamps: 2
- Punching with 20 mm pitch: 375
