➤ Used Euromac STX FLEX 12 1500/22-2500 | For Sale

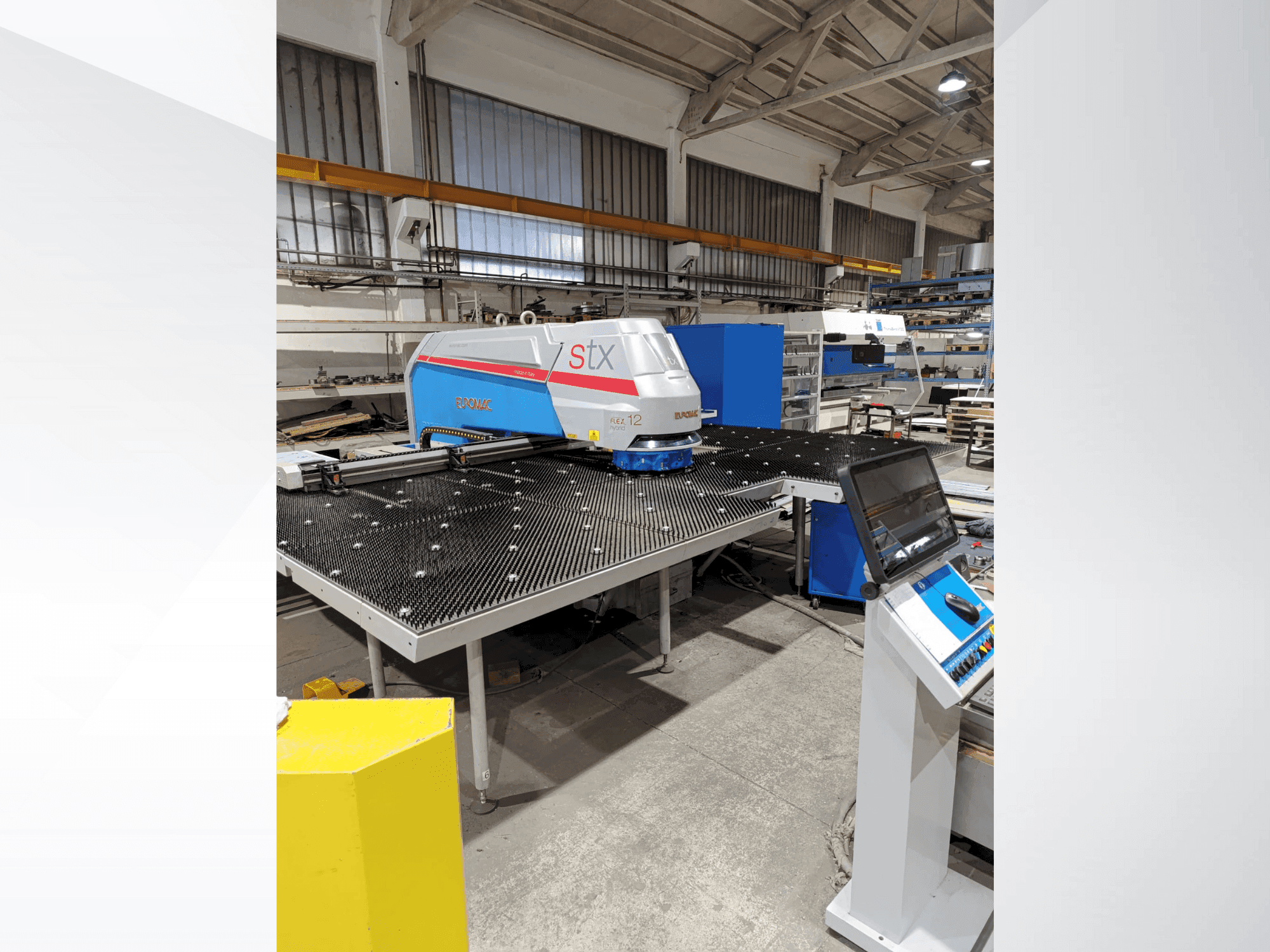

This 4-axis Euromac STX FLEX 12 1500/22-2500 was manufactured in 2018, designed for both punching and bending applications. Ideal for workshops requiring versatile and precise metal forming capabilities. Consider the opportunity to buy this Euromac STX FLEX 12 1500/22-2500 punching and bending machine. Contact us for more information.

Overview

brand: Euromac
year: 2018
MODEL: STX FLEX 12 1500/22-2500
application type: Punching
Location: Slovenia
machine type: Punching and Bending Machine
availability: Immediately

Technical Information - Euromac STX FLEX 12 1500/22-2500

General Data

Measurements width: 4850 mm
Measurements depth: 4850 mm
Machine weight: 9800 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic repositioning (mm): up to 10000
- - Max material thickness (mm): 0. 6 - 6. 5 / max. Sheet weight at reduced speed (kg): 180
- - Stroke of y axis with a multitool/single-tool (mm): 1500/22-2500 /stroke of x axis (mm): 2500
- - Max. Number of autoindex stations: 5 / autoindex two-way stations (340°): 3 / autoindex rotation speed (rpm): 174
- - Max. Number of strokes (1/min): at 25 mm pitch: 425 / at 20 mm pitch: 460 / at 1 mm pitch (nibbling): 1080 / marking: 2000
- - Max. Punching force (kn): 220/ punch stroke adjustment range (mm): 0. 1 - 31 punching accuracy (mm): ±0. 05 / accuracy for shape repeatability (mm): ±0. 1 / clamp aperture (mm): 11
- - Tank capacity (liters): 135 / installed power (kw): 8. 5 / average power consumption (kw/h): 4. 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
