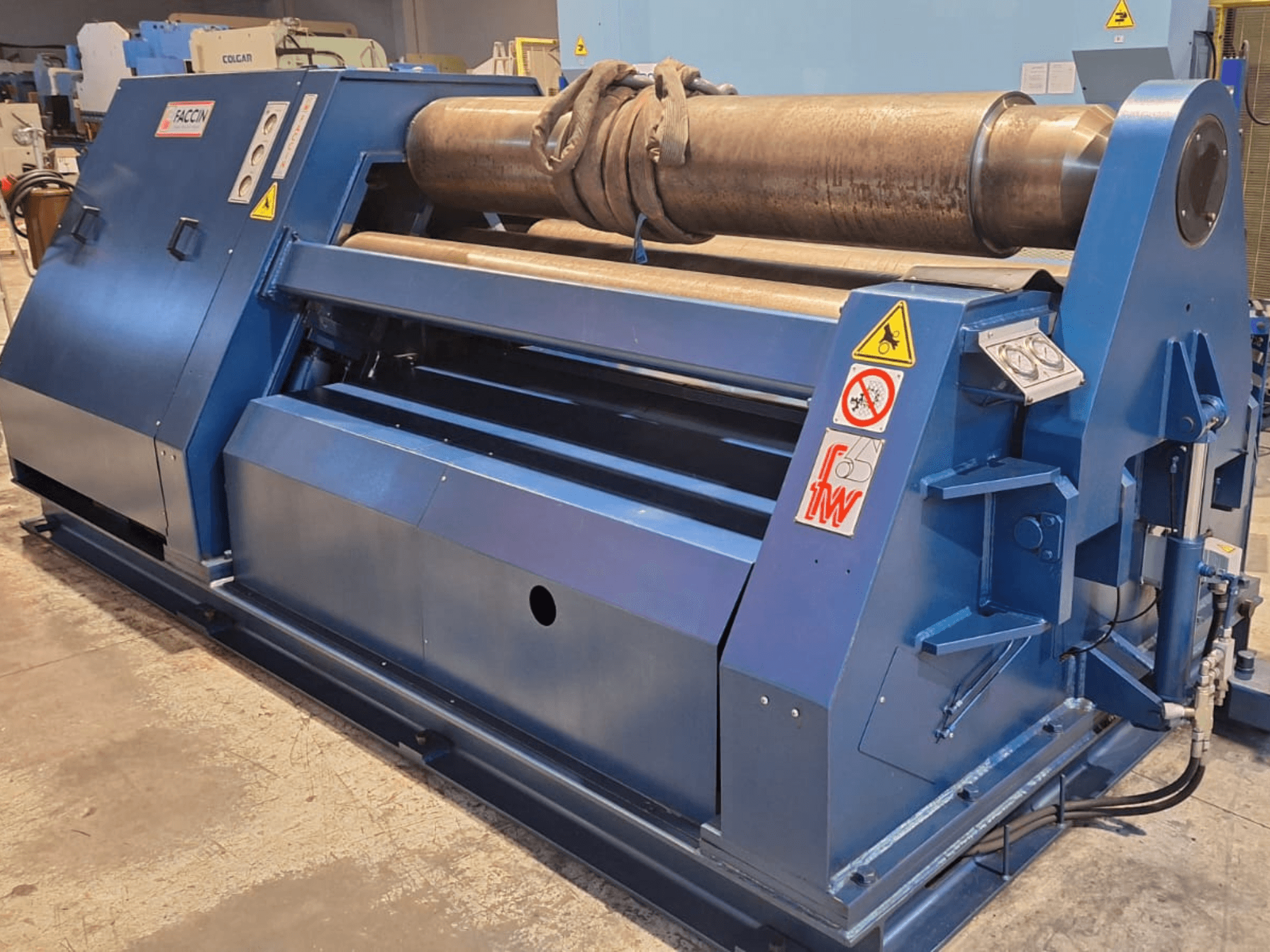

FACCIN - 4HEL 2134 IT-BEN-FAC-2006-00001

Geometry: Linear guides

Max. plate width: 2,100 mm

Max. plate thickness: 28 mm

Top roll diameter: 350 mm

Pinching roll diameter: 330 mm

Side roll diameter: 240 mm

Main motor power: 18.5 kW

Rolling speed: 7 m/min

Feature: Visualized/digital roll position indicators

Rolling performance:

• Full width: up to 25 mm rolling / 20 mm pre-bending at Ø1,700 mm, 260 N/mm²

• Full width: 20 mm / 16 mm at Ø400 mm, 260 N/mm²

• Full width: 20 mm / 16 mm at Ø1,700 mm, 360 N/mm²

• Full width: 18 mm / 14 mm at Ø400 mm, 355 N/mm²

• Half width: up to 30 mm rolling / 25 mm pre-bending at Ø1,700 mm, 260 N/mm²
