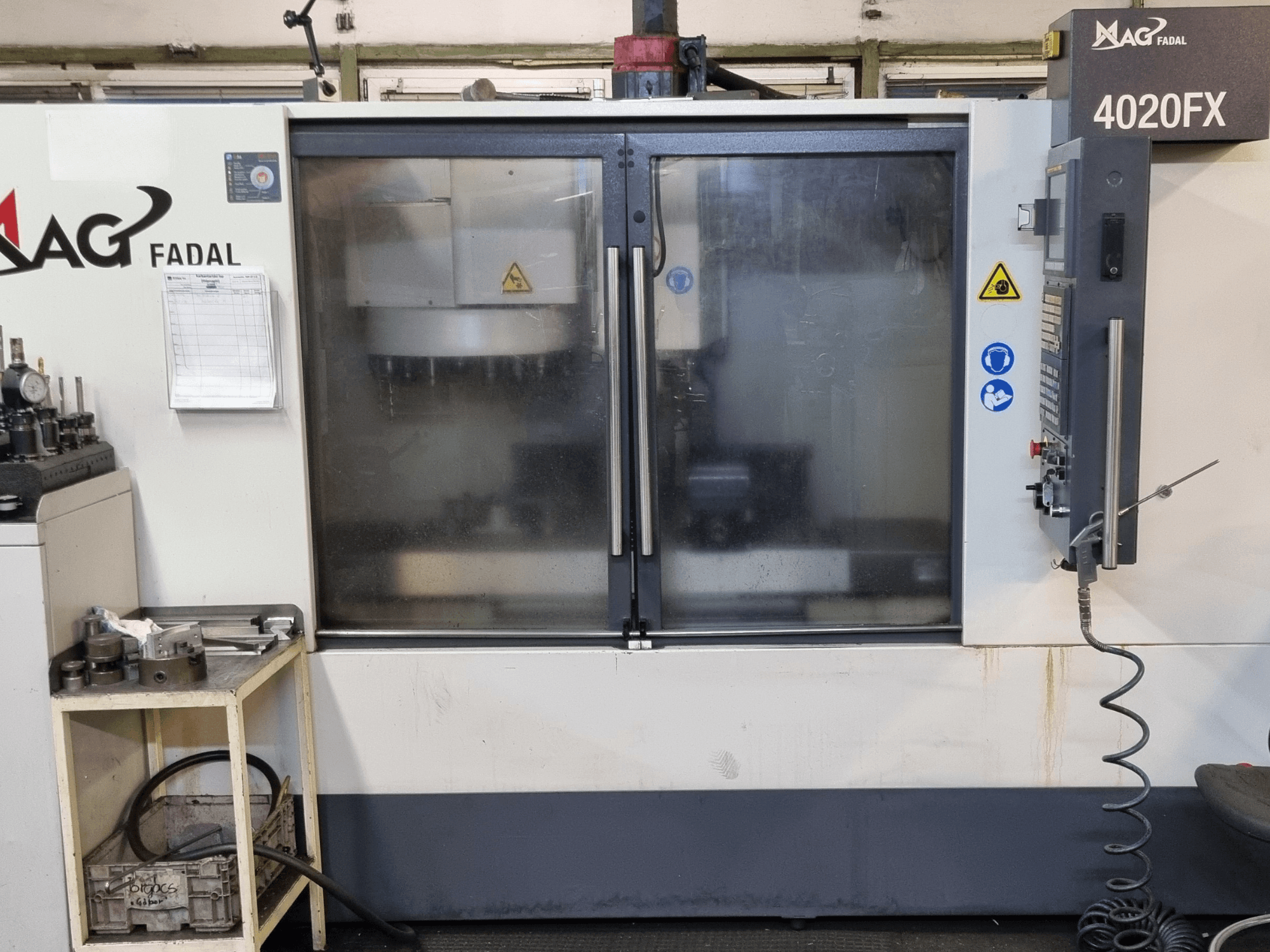

This 3-axis FADAL 4020 FX vertical machining centre was manufactured in 2007. It features an impressive X-axis travel of 1,016 mm, Y-axis travel of 508 mm, and Z-axis travel of 508 mm. The machine includes a robust table size of 1,219 x 508 mm and a maximum table load of 1,652 kg. If you are looking to get high-quality machining capabilities, consider the FADAL 4020 FX machine we have for sale. Contact us for further details.
Overview
- brand: FADAL
- year: 2007
- MODEL: 4020 FX
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
Technical Information - FADAL 4020 FX
Dimensions
- Machine Weight: 4990 kg
- Table Load: 1652 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1016 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 508 mm
Technical Specification
- Max. Tool Weight: 6.8 kg
- Spindle Power: 16 kW
- Spindle Speed: 8000 RPM
- Taper Size: ISO 40
Additional Information
Table
Size: 48" x 20" (1,219 x 508 mm)
T-slots: 5 x 18 mm x 95 mm
Feed rates
Cutting feed (X/Y/Z): 800 ipm (20.32 m/min)
Rapid traverse: 1,000 ipm (25.4 m/min)
Accuracy
Positioning accuracy: ±0.0002" (±0.0050 mm)
Repeatability: ±0.0001" (±0.0025 mm)
Spindle
Orientation: Electromechanical
Drive: AC vector drive
Power
Spindle motor: 17.75 HP (22.1 HP peak)
Torque: 39 ft-lbs (78 ft-lbs peak)
Optional high torque: 15 HP / 227 ft-lbs
Tool changer (ATC)
Capacity: 21 tools (30 optional)
Selection: Random, bi-directional
Max tool diameter: 76 mm (114 mm without adjacent tools)
Max tool length: 381 mm
Machine data
Power requirement: 76 A, 230 V, 3-phase
Air requirement: 120 psi, 15 scfm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
