FADAL VMC 3016 L

Photo Gallery

FADAL - VMC 3016 LHU-MIL-FAD-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

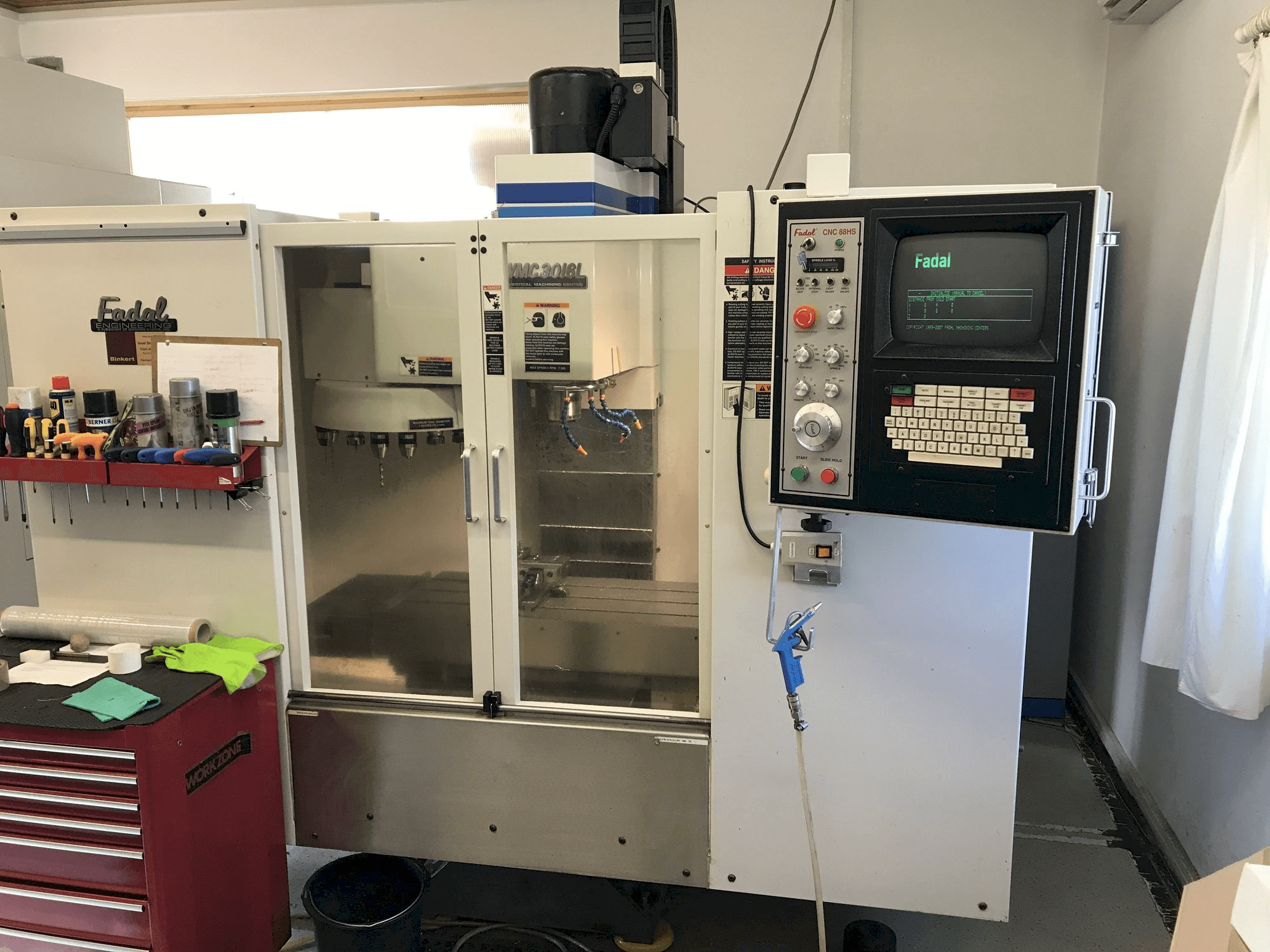

FADAL VMC 3016 L Vertical Machining Center

This FADAL VMC 3016 L Vertical Machining Center was manufactured in 1997 in the United States and counts with 12500 hours on, from which 8500 are spindle hours. Equipped with a FADAL CNC 88HS Control unit, this machine can operate with a speed up to 7500 rpm. 10 tool holders are included additionally.

Overview

brand: FADAL
year: 1997
MODEL: VMC 3016 L
production hours: 8500
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold

Technical Information - FADAL VMC 3016 L

General Data

Measurements width: 2300 mm
Measurements depth: 1960 mm
Measurements height: 2600 mm
Machine weight: 4000 kg

Control Unit

Model: CNC 88HS
CNC main language: ENGLISH

Main drive

Number of spindles: 1
Spindle speed range: 10-7500 1/MIN

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 907 kg

Table

Outer length: 990 mm
Outer width: 406 mm

Tools

Slots in storage: 21
Max weight: 6.8 kg
Max tool diameter: 76 mm
Max tool length: 381 mm
Type of tool holder: No. 40

Media

Power consumption: 20 kVA

Additional Equipment

- 10 tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Latest software installed: sys 103. 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
