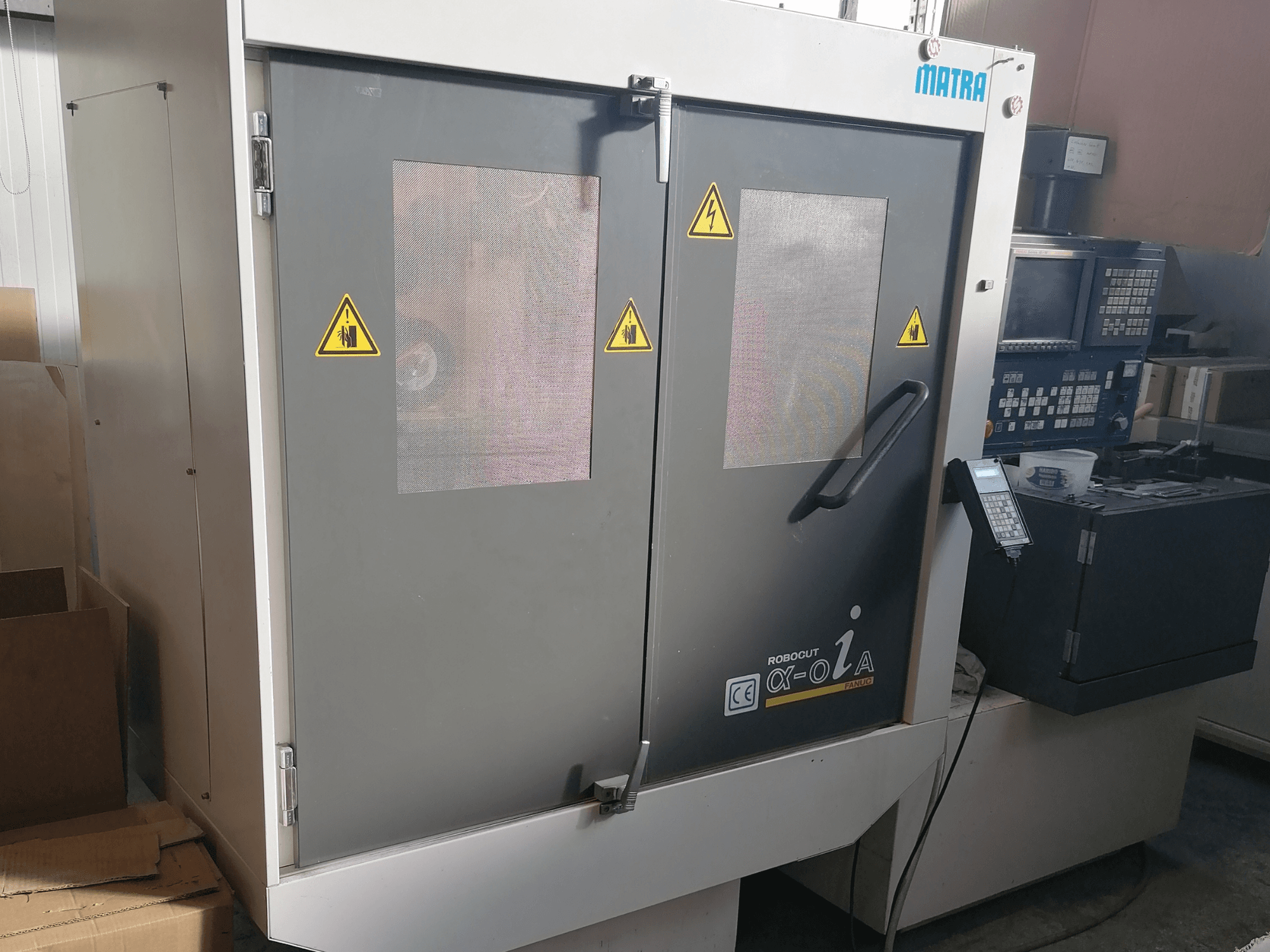

This 5-axis FANUC Alpha 0iA wire EDM machine was manufactured in 2000. It features X, Y, U, V, and Z axes with a maximum travel of 320 mm, 220 mm, 120 mm, 120 mm, and 180 mm respectively, all at speeds up to 900 mm/min. It can handle a workpiece mass up to 500 kg and has a machine mass of 1.2 tons. Power capacity is 13 KVA. Consider the opportunity to buy this FANUC Alpha 0iA wire EDM machine. Contact us for more information.
Overview
- brand: FANUC
- year: 2000
- MODEL: Alpha 0iA
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
Technical Information - FANUC Alpha 0iA
Movement
- Number of Axes: 5
- X-axis Travel: 320 mm
- Y-axis Travel: 220 mm
- Z-axis Travel: 180 mm
Additional Information
Axes
X axis travel: 320 mm; max feed rate: 900 mm/min
Y axis travel: 220 mm; max feed rate: 900 mm/min
U axis travel: 120 mm; max feed rate: 450 mm/min
V axis travel: 120 mm; max feed rate: 450 mm/min
Z axis travel: 180 mm; max feed rate: 900 mm/min
Permissible mass of workpiece: 500 kg
Mass of machine: 1.2 ton
Voltage options
200V~ +10%/-15% (3-phase, 50/60 Hz ±1 Hz)
220V~ +10%/-15% (3-phase, 60 Hz ±1 Hz)
Power capacity: 13 KVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
