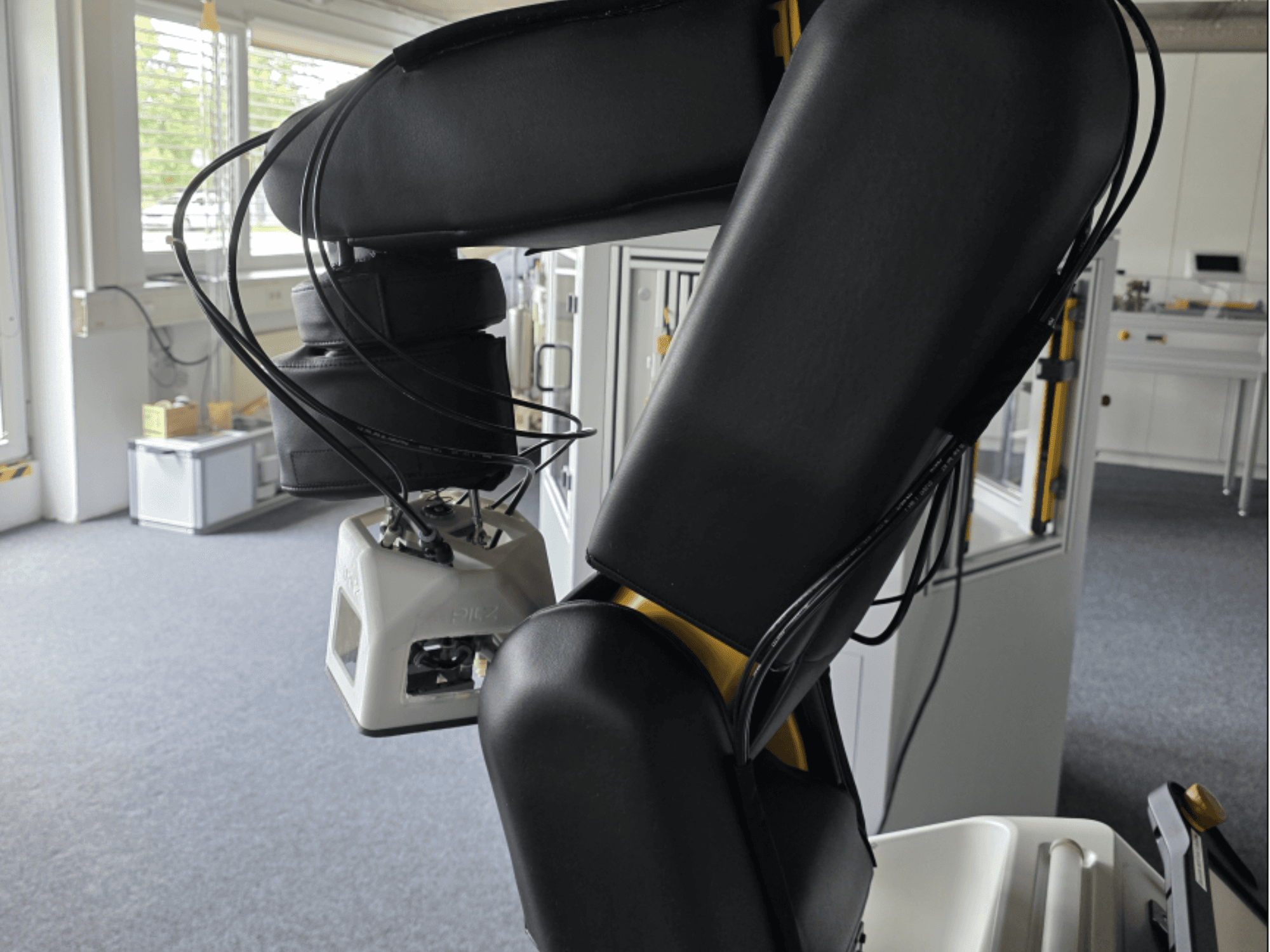

FANUC LR Mate 200iD/7L collaborative robot side view, showing arm and sensors, cables visible in a workshop setting.
FANUC LR Mate 200iD/7L collaborative robot side view, showing arm and sensors, cables visible in a workshop setting.

FANUC - LR Mate 200iD/7L auf Bosch APAS assistant i6DE-ROB-FAN-2015-00005

17,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 6-axis FANUC LR Mate 200iD/7L auf Bosch APAS assistant i6 was manufactured in 2015. It features a mobile base unit, a FANUC System R-30iB Mate control unit, and a custom-built pneumatic gripper. With 3,800 operating hours, this collaborative robot offers versatile automation capabilities. If you are looking to get high-quality automation capabilities, consider the FANUC LR Mate 200iD/7L collaborative robot we have for sale. Contact us for further details.

Overview

  • brand: FANUC
  • year: 2015
  • MODEL: LR Mate 200iD/7L auf Bosch APAS assistant i6
  • production hours: 3800
  • application type: Robotics
  • Location: Germany
  • machine type: Collaborative Robot
  • control unit brand: FANUC

Technical Information - FANUC LR Mate 200iD/7L auf Bosch APAS assistant i6

Control Unit

  • Control Brand: FANUC
  • Control Model: R-30iB Mate

Dimensions

  • Machine Weight: 27 kg

Movement

  • Number of Axes: 6

Technical Specification

  • Max. Handling Weight: 7 kg
  • Max. Reach: 911 mm

Additional Information

- Main Components: Mobile base unit Bosch APAS assistant i6 (on wheels), OpCon control panel, Robot arm FANUC LR Mate 200iD/7L, Control unit FANUC System R-30iB Mate, Teach pendant (handheld programming device)

- Peripherals & Additional Modules: Pneumatic module (Festo), Pneumatic gripper (custom-built), Protective covers and mounting frame (APAS-specific)

- Operating Hours: 3,800 h

- Main Circuit Voltage: 1/N/PE 230V AC 50Hz

- Control Circuit Voltage: 24V DC

- Full Load / Short Circuit Current: 3.5A / 10kA

- Min. Supply Line: 3 x 2.5 mm²

- Max. Backup Fuse: 16A gG

- Protection Rating: IP52

- Robot Weight: 27 kg

- Notes: Backup battery is dead

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
