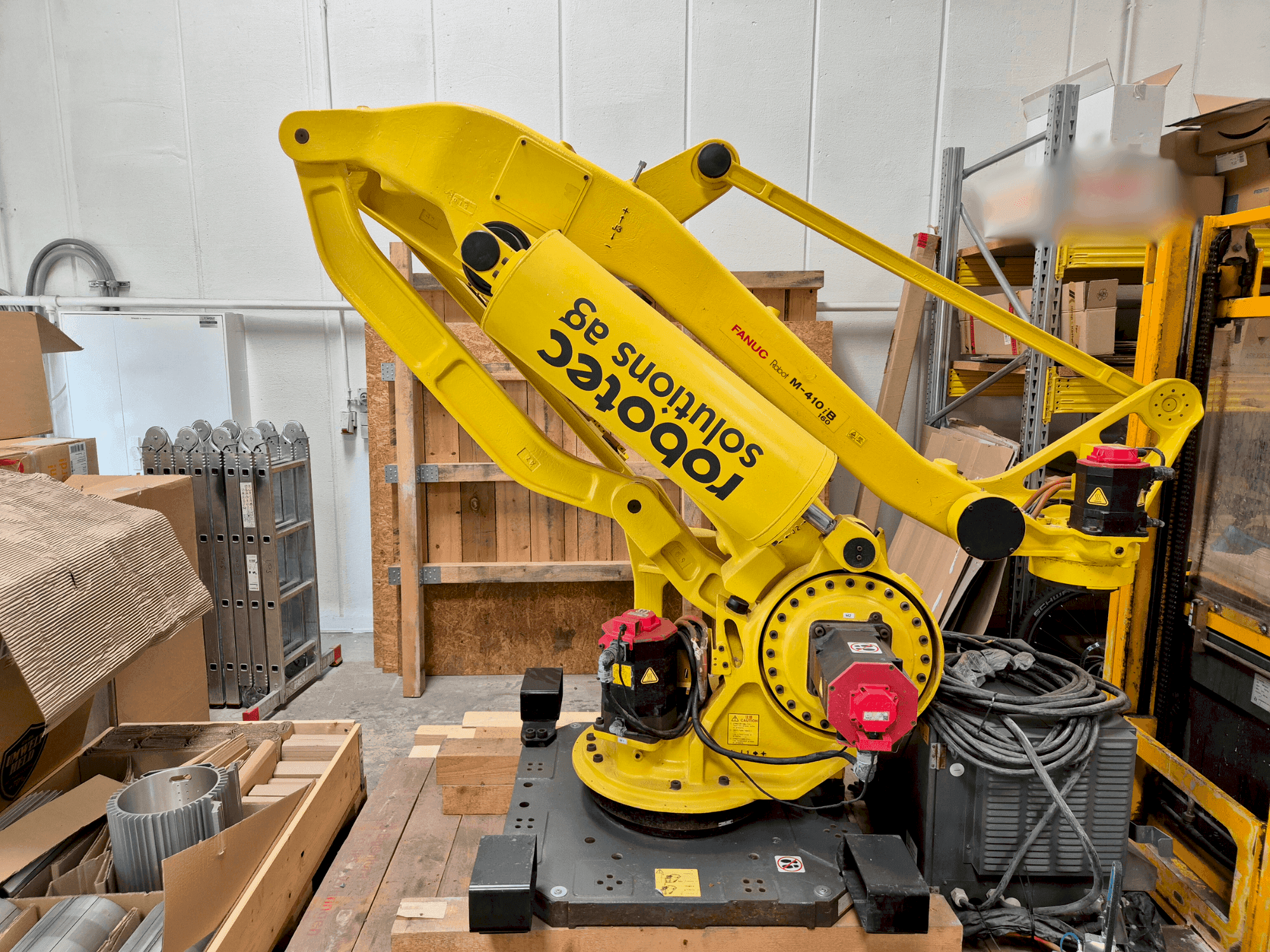

This FANUC M-410iB 160 (2005) Robot was manufactured in 2005 and is completly refurbished. For more information about this robot, please reach out to us.
Overview
- brand: FANUC
- year: 2005
- MODEL: M-410iB 160
- application type: Robotics
- Location: Germany
- machine type: Robot Arm
- availability: Immediately
Technical Information - FANUC M-410iB 160
General Data
- Machine weight: 1940 KG
Main drive
- Number of axis: 4
Additional Information
- Technical Machine Benefits:
- - Max reach: 3143 mm
- - Max handling weight: 160 kg
- - Electric servo drive by ac servo motor
- - Repeatability: +/- 0. 5mm
- - Installation environment ambient temperature: 0 to 45°c
- - Total weight without controller: 1820 kg
- - Allowable load inertia at wrist: 78 kg*m²
- Qualitative Machine Benefits:
- - Panel included in scope of delivery
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
