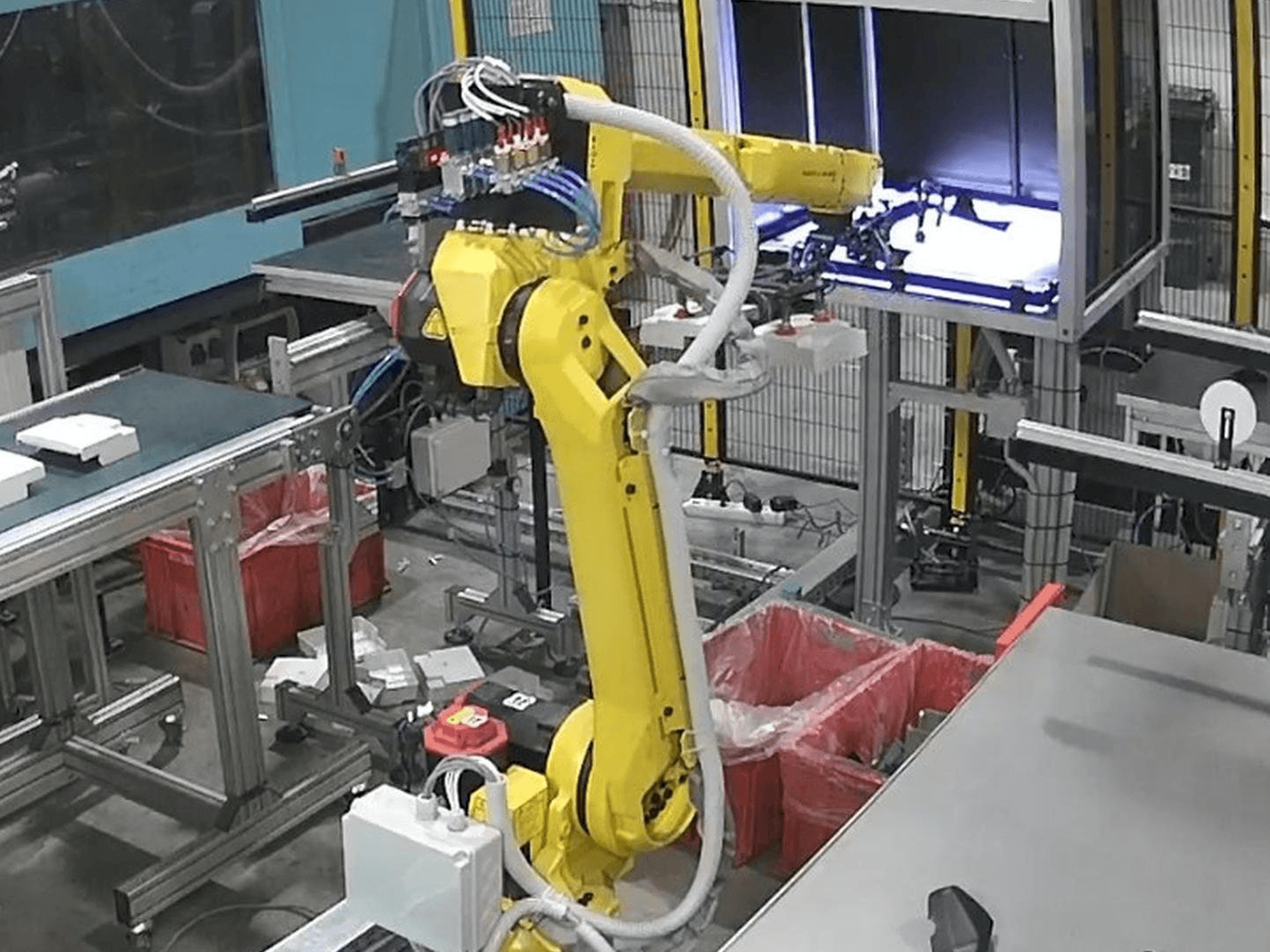

Front view of FANUC M20iA12L  machine

FANUC M20iA12L

FANUC - M20iA12L

2019

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This FANUC M20iA12L 6-axis robot + Fanuc iR Vision was made in the year 2019 and has 500 hours. It is controlled by R-30iB Plus. The robot has a repeatability of ± 0.03* and a Robot footprint of 343 x 343 mm.

Overview

  • brand: FANUC
  • year: 2019
  • MODEL: M20iA12L
  • production hours: 500
  • application type: Robotics
  • Location: Poland
  • machine type: Robot
  • availability: Sold
  • control unit brand: R-30iB
  • GINDUMAC ID: PL-ROB-FAN-2019-00001

Technical Information

General Data

  • Machine weight: 250 kg

Control Unit

  • Brand: R-30iB
  • Model: Plus

Media

  • Main electronic connection: 380-575 / 50/60 Hz

    Additional Equipment

    • - Options included - Fanuc iR Vision

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - 6-axis robot + fanuc ir vision
        • - Repeatability - ± 0. 03*
        • - Motion range: j1 - 340 (370) deg, j2 - 260 deg , j3 - 475 deg, j4 - 400 deg, j5 - 360 deg, j6 - 900 deg
        • - Max speed: j1 - 210 deg/s, j2 - 210 deg/s, j3 - 265 deg/s, j4 - 420 deg/s, j5 - 450 deg/s, j6 - 720 deg/s
        • - J4 - moment/inertia: 22 / 0. 65 nm/kgm2, j5 - moment/inertia: 22/ 0. 65 nm/kgm2, j5 - moment/inertia: 9. 8/0. 17 nm/kgm2
        • - Robot footprint – 343 x 343 mm
        • - Mounting position floor: yes
        • - Mounting position upside down: yes
        • - Mounting position angle: yes

      Extra information

      • - Fanuc iR Vision – included in the price

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
