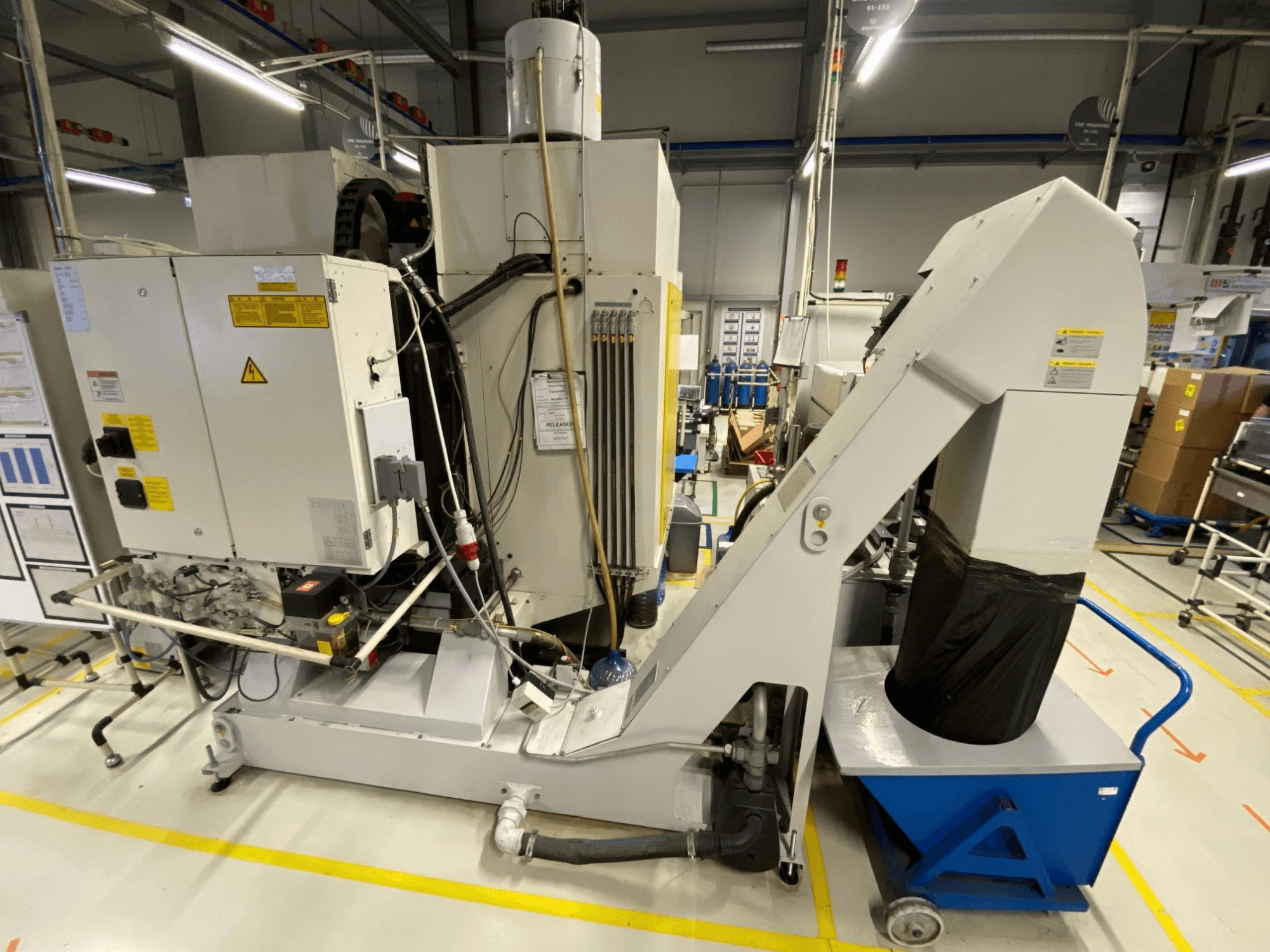

FANUC - ROBODRILL α-D21LiBHU-MIL-FAN-2018-00002

Travels and speeds

• Rapid traverse (X/Y/Z): 48 m/min

• Feed rate (X/Y/Z): 1–15,000 mm/min

• Interference radius: 380 mm

• Spindle nose to table: 350–680 mm

Table

• Clamping area: 850 × 410 mm

• T-slots: 3

• T-slot width: 14H14 mm

• T-slot spacing: 125 / 250 mm

• Table height from floor: 815 mm

• Max. workpiece weight: 250 kg

Spindle

• Spindle bearing diameter: 50 mm

• Max. torque: 35 Nm (100% duty)

Tool magazine

• Stations: 21

• Max. tool diameter: 80 mm

• Max. tool length: 200 mm

• Tool clamping force: 2,200 N

• Max. tool weight: 2 kg/tool

• Total tool mass: 23 kg

Cutting capacity

• Max. metal removal rate: 600 cm³

• Max. drilling diameter: 20 mm

• Max. tapping: M16

Feed forces

• X-axis: 2,700 N

• Y-axis: 2,700 N

• Z-axis: 5,400 N

Electrical

• Voltage/Frequency: 400 V / 50 Hz

• Connected load: 22 kVA

• Power requirement: 17.6 kW

Units available and runtimes

• Unit 1

  • FANUC S/N: P182ZL013

  • STAMA S/N: KMM 021.1705

  • Runtime: 400 h 20 min 5 sec

• Unit 2

  • FANUC S/N: P1827L014

  • STAMA S/N: KMM 021.1704

  • Runtime: 29,444 h 47 min 12 sec

Additional equipment

• KNOLL KF 200/950 cooling unit

  • Unit 1 S/N: 1347674

  • Unit 2 S/N: 1347675

• KNOLL 300 K-1 chip conveyor

  • Unit 1 S/N: 1347673

  • Unit 2 S/N: 1347676
