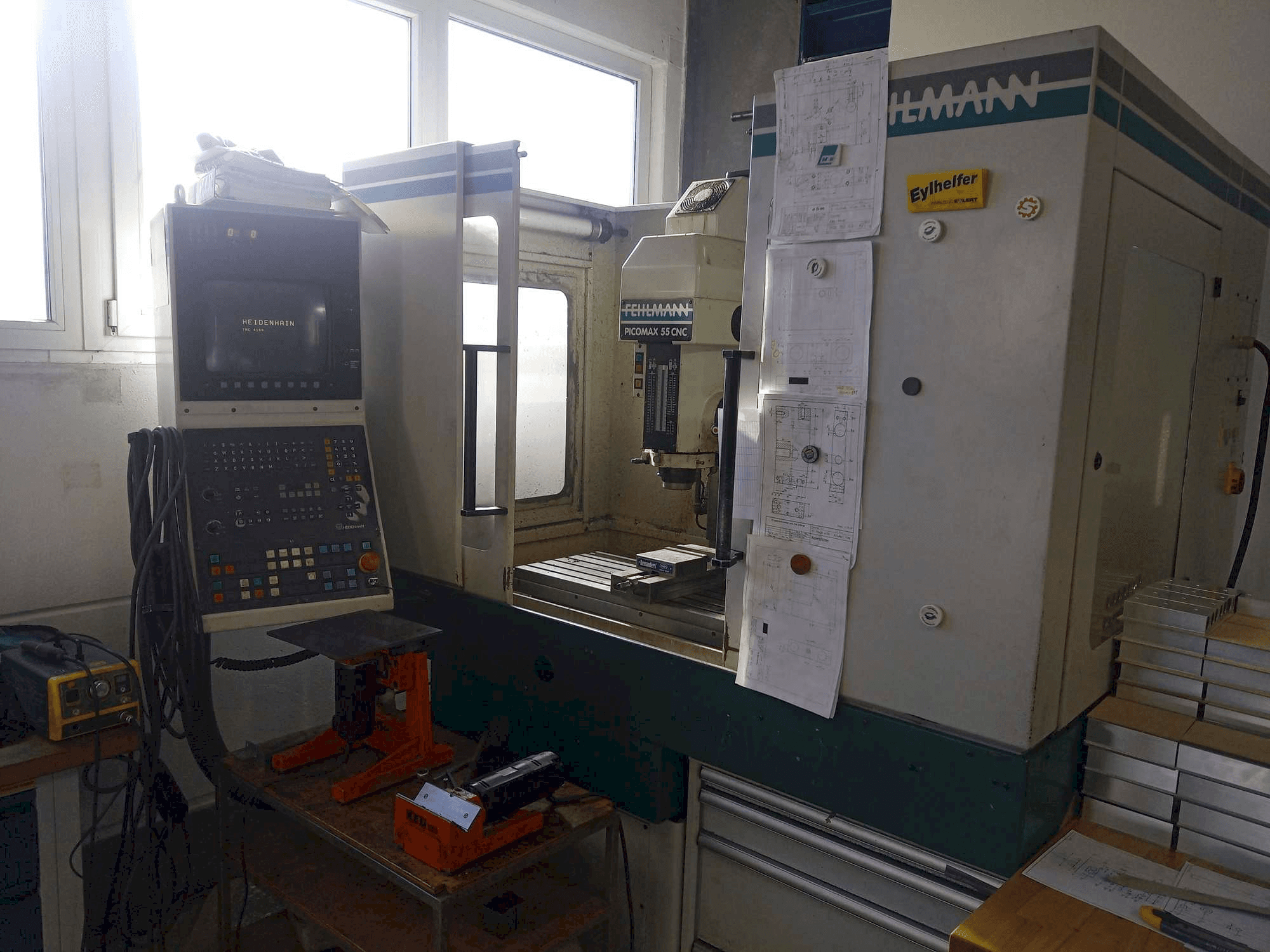

Front view of FEHLMANN Picomax 55 CNC  machine

FEHLMANN - Picomax 55 CNCDE-MIL-FEH-1998-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Fehlmann Picomax 55 CNC Milling machine was manufactured in the year 1998 in Switzerland. It is equipped with a HEIDENHAIN 415B control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

  • brand: FEHLMANN
  • year: 1998
  • MODEL: Picomax 55 CNC
  • application type: Milling
  • Location: Germany
  • machine type: CNC Milling Machine
  • availability: Sold
  • control unit brand: HEIDENHAIN

Technical Information - FEHLMANN Picomax 55 CNC

Control Unit

  • Model: 415 B
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 50-10000 1/MIN
  • Spindle motor power: 7 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 500 mm
  • Y-AXIS Movement: 250 mm
  • Z-AXIS Movement: 160 mm

Table

  • Outer length: 885 mm
  • Outer width: 320 mm
  • TSlots size: 5
  • Min distance between vertical spindle and table: 120 mm
  • Max distance between vertical spindle and table: 620 mm
  • Table load: 50 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Working elk
      • - X and y axis: 1-11000 mm/min
      • - Z axis 1-6000 mm/min
      • - W axis 1-3600 mm/min
      • - X and y axis 6500 n
      • - Z axis 8000 n
      • - Distance measuring system resolution
      • - Direct measuring system via linear scale - x / y / w axis
      • - Indirect measuring system via rotary encoder - z axis
      • - Resolution in x, y, z and w axes - 0. 001 mm
    • Qualitative Machine Benefits:
      • - Accuracy (according to vdi / dgq 3441)
      • - Position tolerance p axis(s)
      • - X/y 0. 005mm
      • - Z/w 0. 010mm
      • - Quick tool change system - sf 32
      • - Repeatability 0. 002 mm
      • - Tool change hydraulically - via push buttons
      • - Changing time (manual) sec approx. 3
      • - Max. Torque 70 nm
      • - This is a 3-axis milling machine with x-y-z - which is controlled with an additional quill w

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
