➤ Used FEHLMANN Picomax 60 For Sale | gindumac.com

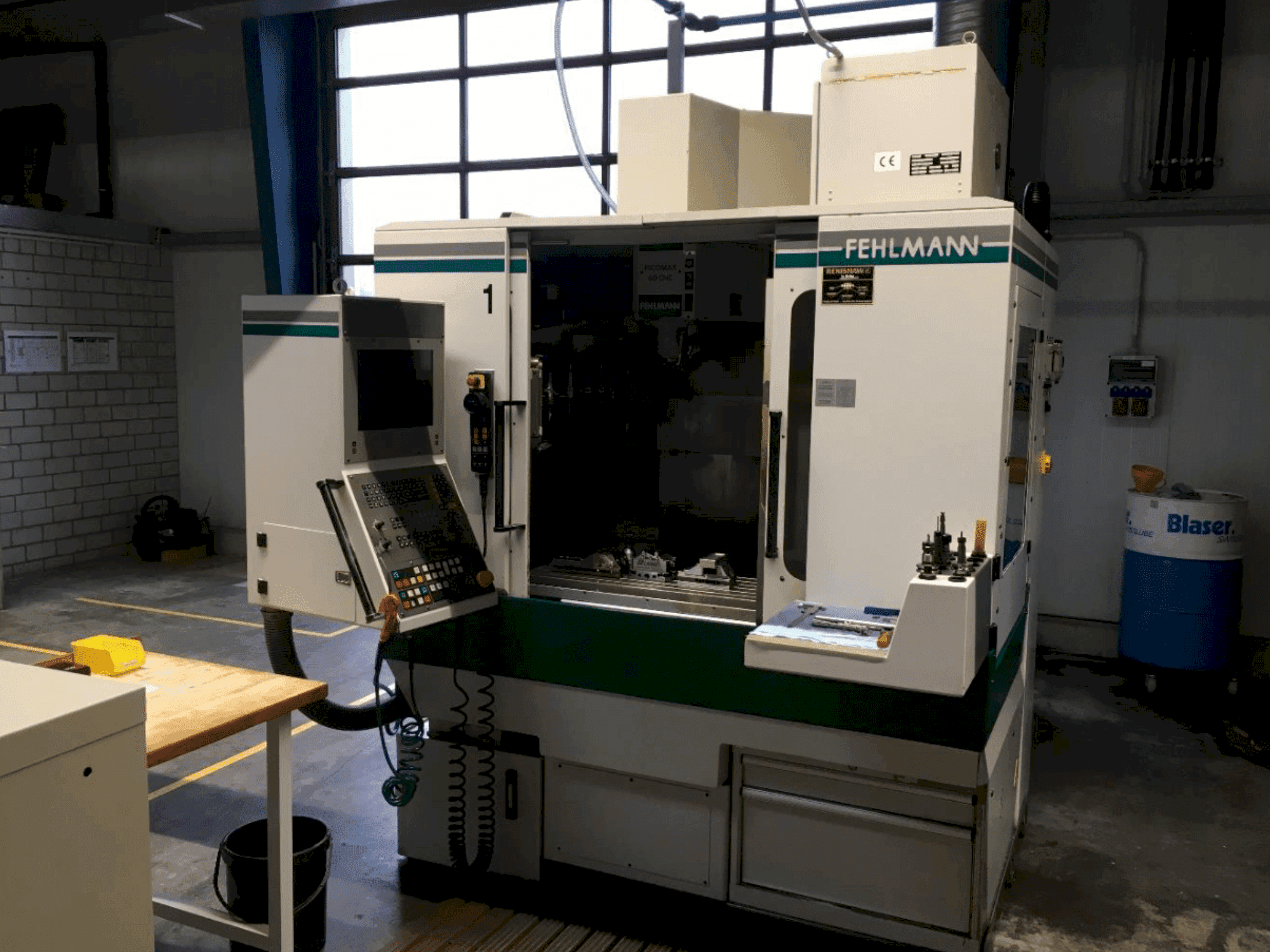

This 3-axis FEHLMANN Picomax 60 vertical machining centre was manufactured in 2000. It features a drilling capacity in steel up to 25 mm, thread cutting up to M 24, and a milling capacity of 100 cm3/min. The spindle offers variable speeds from 50 to 18000 rpm. It supports a maximum workpiece weight of 250 kg on its 920 mm x 380 mm table. Ideal for precision machining, the FEHLMANN Picomax 60 machine we have for sale. Contact us for further details.

Overview

brand: FEHLMANN
year: 2000
MODEL: Picomax 60
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - FEHLMANN Picomax 60

General Data

Measurements width: 1700 mm
Measurements depth: 2200 mm
Measurements height: 3000 mm
Machine weight: 3200 kg

Main drive

Number of spindles: 1
Spindle speed range: 18,000 rpm 1/MIN
Spindle motor power: 6.3 kW
Tool taper: SK 30
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 610 mm

Workpiece

Workpiece weight: 250 kg

Table

Outer length: 920 mm
Outer width: 380 mm
Min distance between vertical spindle and table: 94 mm
Max distance between vertical spindle and table: 704 mm

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle speed range of 50 - 18,000 rpm
- - Comprehensive feed rates for x, y, and z axes (1 - 20,000 mm/min)
- - Direct measuring system for x and y axes
- - Drilling capacity in steel: 25 mm
- - Thread cutting in steel: m 24
- - Milling capacity: 100 cm³/min
- - Connection: 50 hz 3x 400 volt
- - Total power requirement: 20 kw

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
