Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
FEHLMANN - PICOMAX 95 + EROWANL-MIL-FEH-2006-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- FEHLMANN PICOMAX 95 + EROWA Vertical Machining center

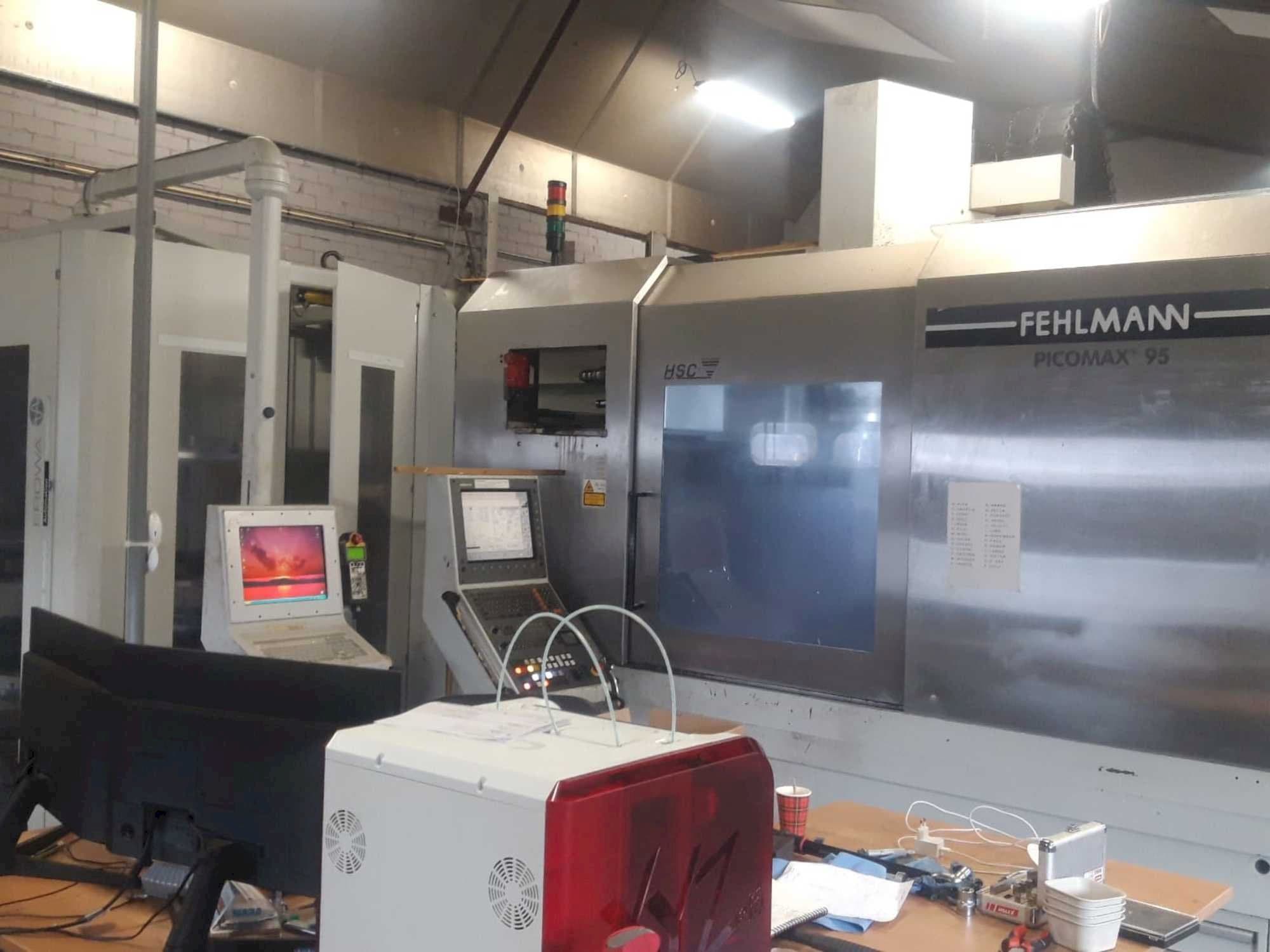

This FEHLMANN PICOMAX 95 + EROWA Vertical Machining Center was manufactured in the year 2006 in Switzerland. It is equipped with a HEIDENHAIN iTNC control unit and has 5 axis. The machine has a spindle speed of 50-14000 rpm.
Overview
- brand: FEHLMANN
- year: 2006
- MODEL: PICOMAX 95 + EROWA
- application type: Milling
- Location: Netherlands
- machine type: Universal Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - FEHLMANN PICOMAX 95 + EROWA
General Data
- Measurements width: 3000 mm
- Measurements depth: 2200 mm
- Measurements height: 3100 mm
- Machine weight: 9100 kg
Control Unit
- Model: iTNC
- Brand: HEIDENHAIN
Main drive
- Spindle speed range: 50-14000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 800 mm
- Y-AXIS Movement: 500 mm
- Z-AXIS Movement: 610 mm
- B-AXIS Movement: -10°- 120° MM
Table
- Outer length: 1600 mm
- Outer width: 550 mm
- TSlots size: 46
Additional Information
- Technical Machine Benefits:
- - 3d measuring probe: reinnishaw omp
- - Zero-pump clamping system for pallets diameter 210 mm, blum tool
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
