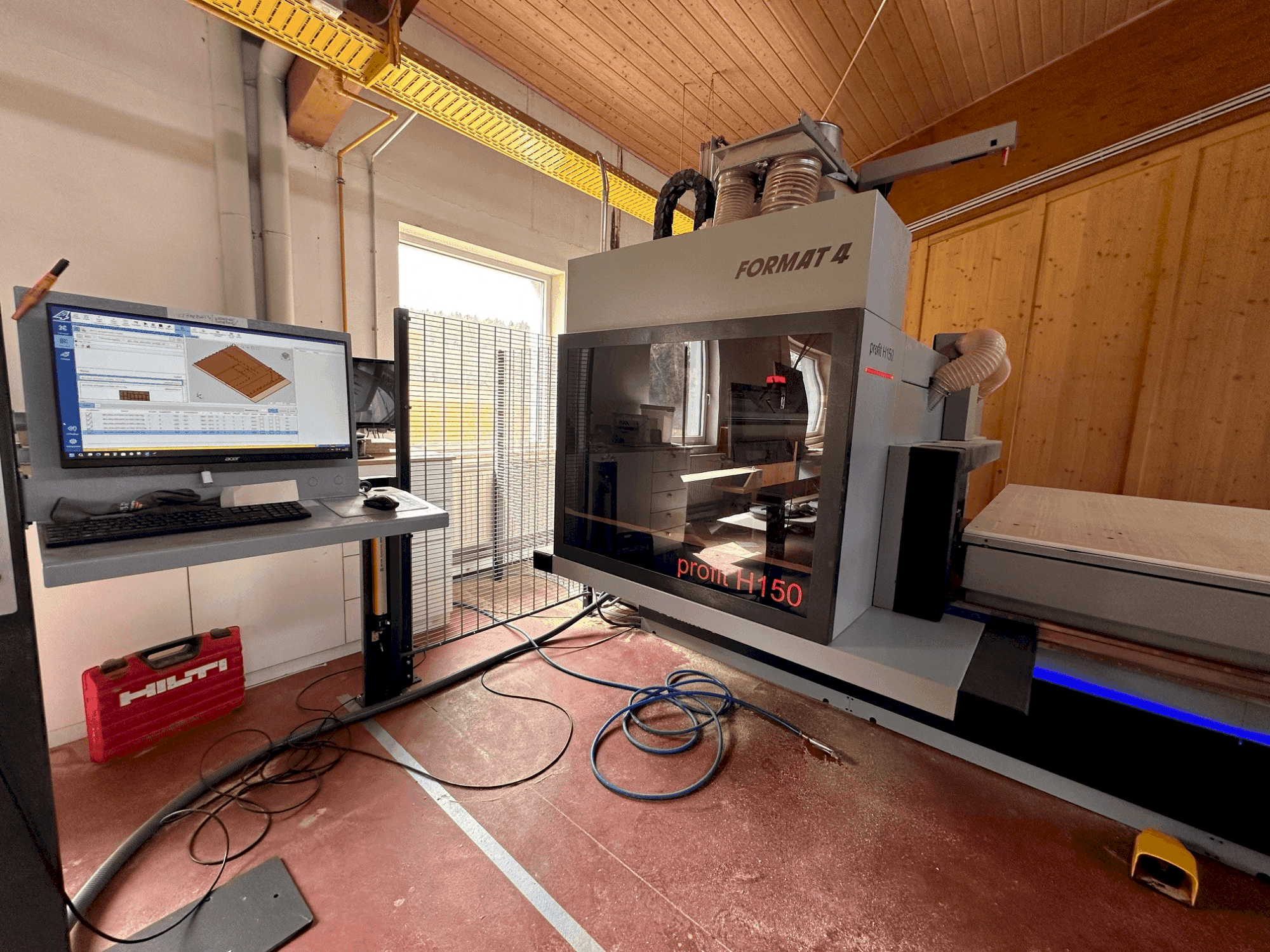

This 5-axis FELDER Format 4 Profit H150 22.32 T was manufactured in 2022. It features a 5-axis main spindle with 12 kW power, a 17-fold linear changer, and an 18-position plate changer. The machine includes a comprehensive control system with F4Operate, F4Toolbox, F4Create, and 3D nesting software F4Nest. It also boasts a complete compressed air system and automatic central lubrication. The FELDER FORMAT4 Profit H150 22.32 T machine we have for sale. Contact us for further details regarding this vertical machining centre.
Overview
- brand: FELDER
- year: 2022
- MODEL: Format 4 Profit H150 22.32 T
- application type: Milling
- Location: Germany
- machine type: CNC Milling Machine
- availability: Immediately
Technical Information - FELDER Format 4 Profit H150 22.32 T
Main drive
- Spindle motor power: 12 kW
- Tool taper: Partly with HSK
- Number of axis: 5
Movement
- X-AXIS Movement: 4455 mm
- Y-AXIS Movement: 2595 mm
- Z-AXIS Movement: 495 mm
Additional Equipment
- - Automatic central lubrication: Yes
- - Control cabinet with new main computer: Yes // Control terminal with keyboard and mouse: Yes
- - Handheld terminal for remote control: Yes
- - Vacuum system: 1060 square meters (oversized)
- - Safety device with light barrier and bumper: Yes
- - Drilling head: 12 vertical drilling spindles
- - Controlled central extraction connection: Yes
- - Machine control: "F4Operate", "F4Tollbox", "F4Create"
- - 3D nesting software: F4Nest
- - Powerful machine PC: Yes
Additional Information
- Technical Machine Benefits:
- - Air conditioning in control cabinet: yes
- - Automatic tool length measuring system: yes
- - Complete compressed air installation: yes
- - Unloading unit with light barrier: yes
- - Printer for labels: yes
- - Cad/cam macros for clamex, fixchip, cabineo: yes, completely set up and ready for operation
- - Tool changer: 17-fold linear changer, 18-position plate changer (tools available at extra charge)
- - Extensive tool changers with tools available at an extra charge, advanced control and software systems, high power 12 kw main spindle
- - Working field: x 3120 mm, y 2160 mm, z 200 mm
- - Travelling distance: x 4455 mm, y 2595 mm, z 495 mm
- Qualitative Machine Benefits:
- - High precision with built-in 3d nesting software, efficient operation with automatic central lubrication and tool length measuring systems
- - Optional: vacuum crane for one-man loading of the 5-axis cnc
- - Schmalz company, jib 6 meters, suction load 250 kg
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
