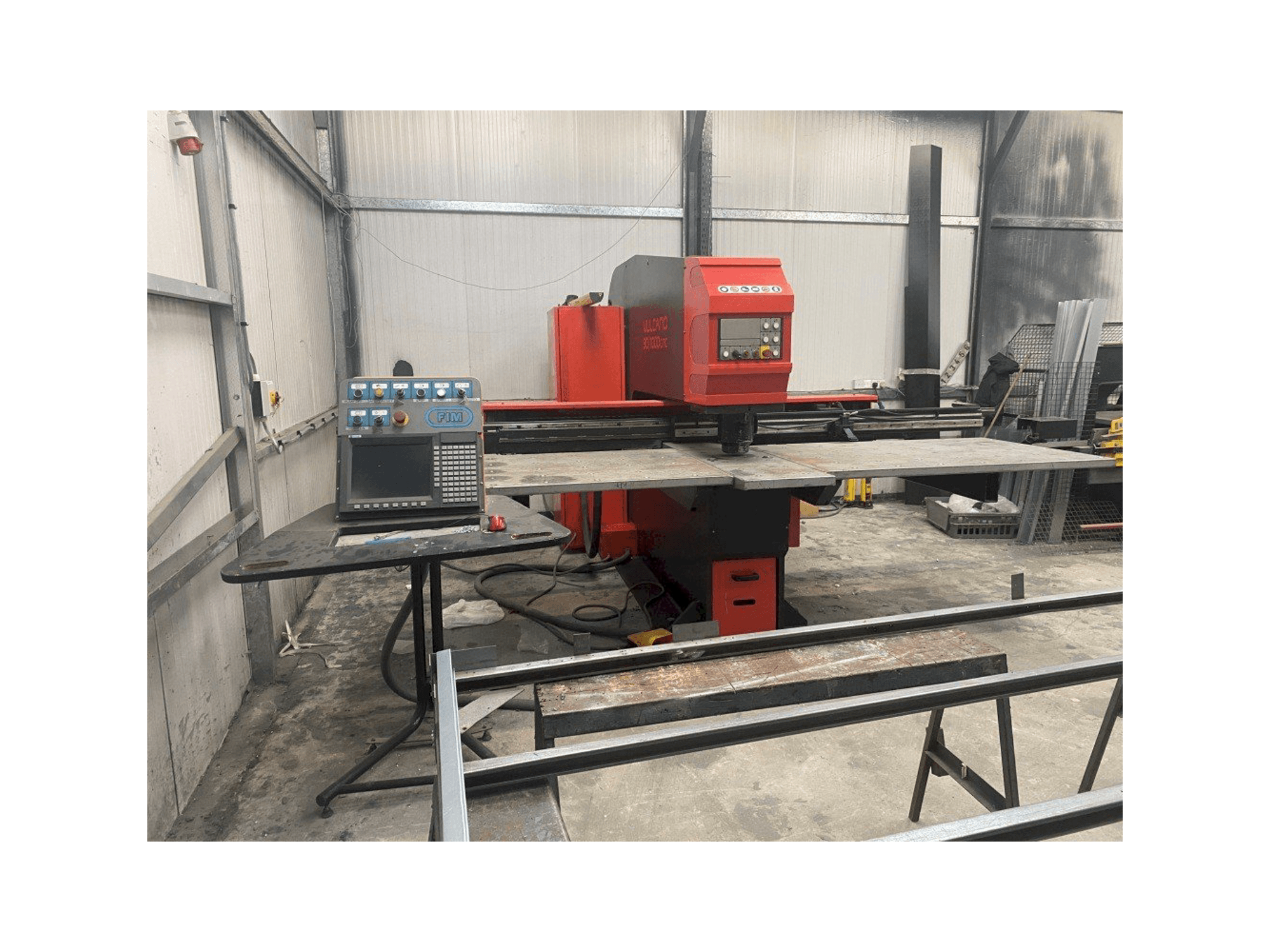

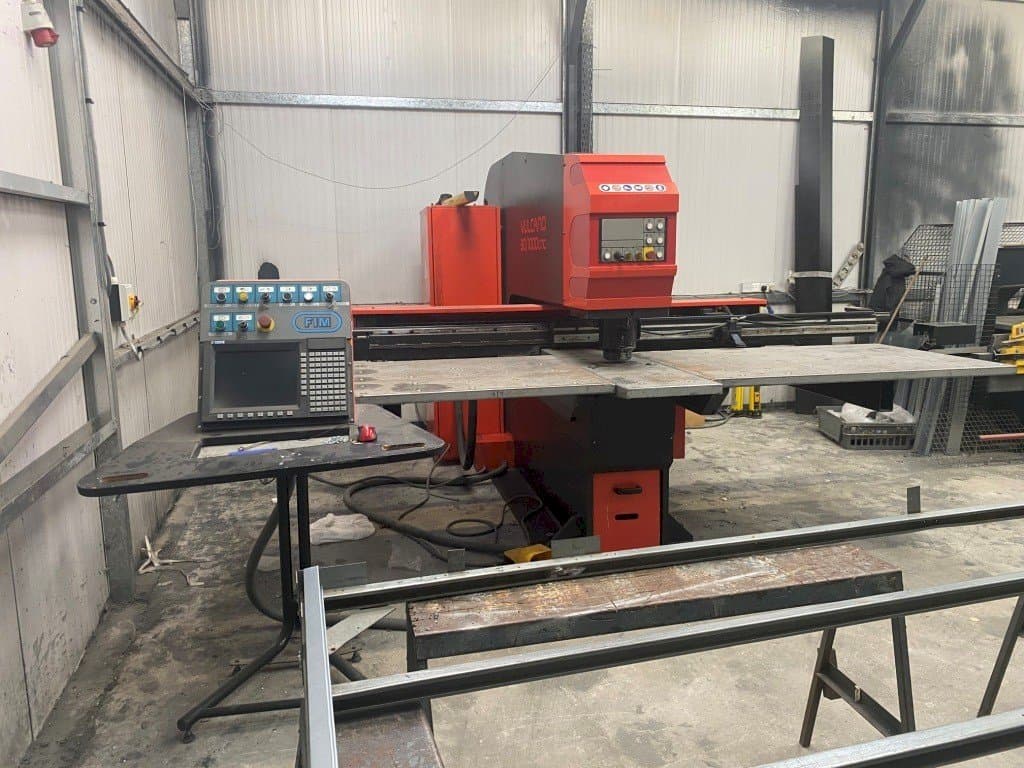

Front view of FIM Vulcano 30/1000CNC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

FIM Vulcano 30/1000CNC

Photo Gallery

FIM - Vulcano 30/1000CNCIE-PUN-FIM-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
FIM Vulcano 30/1000CNC Punching Machine

This FIM Vulcano 30/1000CNC Punching Machine was built in the year 1999 in Italy. The model is operated through a Fim Tecnos control unit. This machine comes with a punching force of 300 kN. It includes a box of single tools, and a 6 station multi-tool and inserts. It presents good working conditions.

Overview

brand: FIM
year: 1999
MODEL: Vulcano 30/1000CNC
application type: Punching
Location: Ireland
machine type: Turret Punch Press

Technical Information - FIM Vulcano 30/1000CNC

General Data

Measurements width: 4200 mm
Measurements depth: 3800 mm
Measurements height: 2250 m MM
Machine weight: 6500 kg

Control Unit

Model: Tecnos
CNC main language: English

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6,35 mm

Movement

X-AXIS Movement: 1145 mm
Y-AXIS Movement: 2100 mm

Workpiece

Workpiece x: 1000 mm
Workpiece y: 4000 mm

Tools

Number of stations: 1

Max Material thickness

Steel: 6,35 mm

Media

Main electronic connection: 400 V

Additional Information

Additional equipment

Comes with a box of single tools
Comes complete with a 6 station multi-tool and inserts
Perimeter Light Guards

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Simple use machine
Small footprint
Box of tooling included
Max punching diameter up to 88. 9mm
320 strokes per minute max
Machine does not have tool rotation

Machine History

Industries

Roofing

End product

Cladding

Material thickness

2 mm

Material type

Mildsteel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
