➤ Used FORMAT4 TEMPORA 60.06 glueBox x-motion | Edgebander

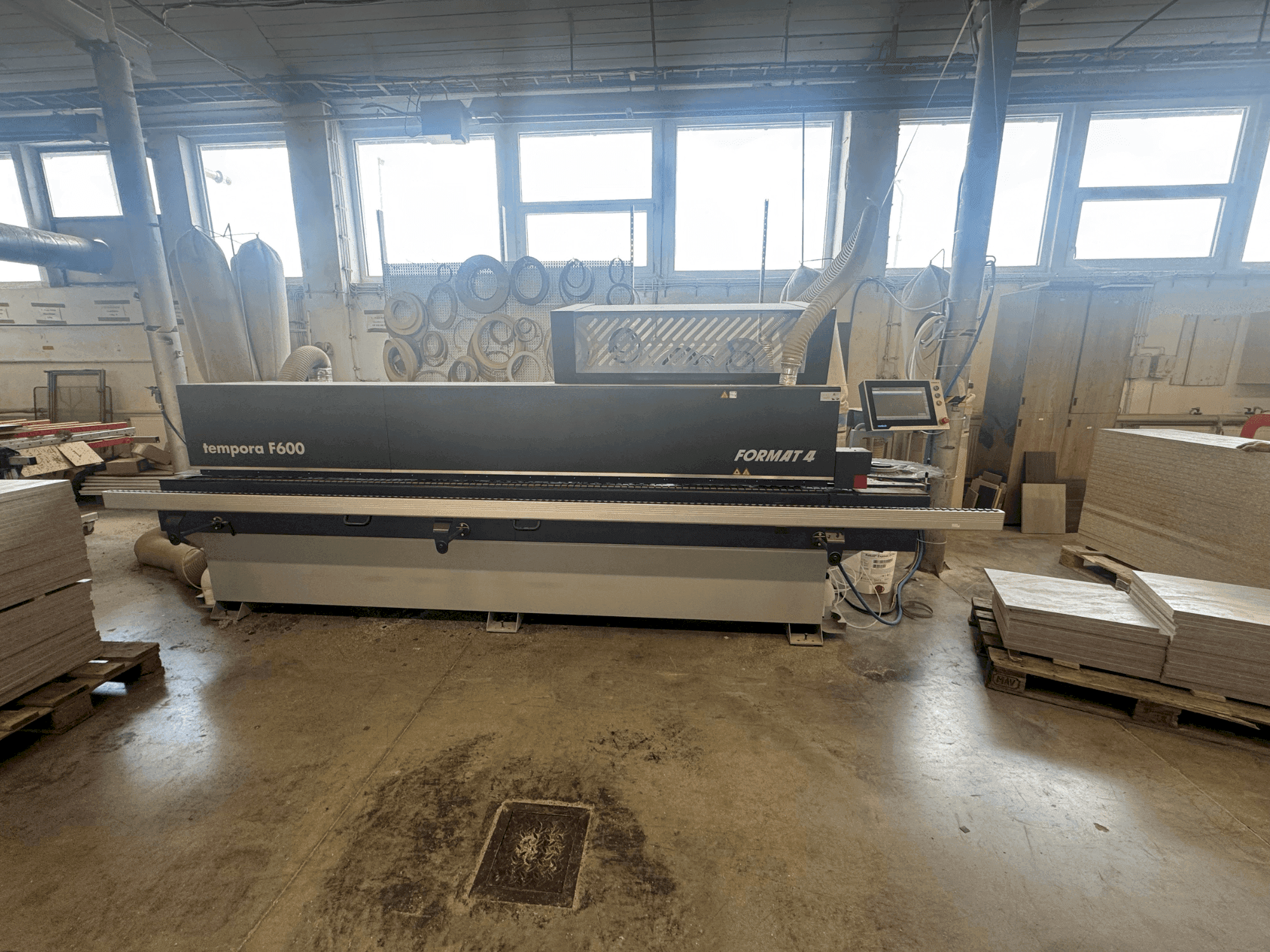

This FORMAT4 TEMPORA 60.06 glueBox x-motion edgebander was manufactured in 2024. It features a turntable magazine with a diameter of 750 mm for edging material ranging from 0.4-3 mm, a GlueBox application unit, and upper and lower polishing units. The machine includes advanced x-motion Plus control with a 15' SmartTouch screen and a multifunctional milling unit for precise plastic edge machining. Contact us for more information about this machine.

Overview

brand: FORMAT4
year: 2024
MODEL: TEMPORA 60.06 glueBox x-motion
application type: Edge Banding
Location: Czech Republic
machine type: Edgebander

Technical Information - FORMAT4 TEMPORA 60.06 glueBox x-motion

Additional Information

Additional equipment

Application unit with Teflon coating for 1.5 kg EVA granulate
Upper and lower polishing unit

Machine Benefits

Technical Machine Benefits

Positioning workpiece height adjustment: 8-60 mm
Turntable magazine diameter: 750 mm for edging material 0. 4-3 mm in roll
Rotary magazine of edging material with ball bearing, diameter of plate: 740 mm
Gluebox application unit
Trimming unit with two motors: 0. 35 kw (1 ps), 12000 rpm hw saw blades, z 24, d-100x20x3. 2 mm, pneumatic tilting 0°-10°
Upper and lower multifunctional milling unit // upper and lower profile sander x-motion plus for machining plastic edges 2 and 3 mm
Controlled corner unit with 2 motors, motorized adjustment for milling the front profiles of the upper/lower edge for edge thicknesses of 0. 4-3 mm and feed rates up to 10 m/min
Pre-milling unit with assigned diamond-tipped cutters, speed 12000 rpm, 2x 1. 5 kw
Edge and workpiece thickness measurement using bluetooth technology

Extra Information

Power supply: 3x400V 50/60Hz Chain feed with 2 gears, Feed rates: 10 and 18 m/min Control Unit x-motion Plus control with 15' SmartTouch
