Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
FPT - Area MCZ-MIL-FPT-2008-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- FPT Area M Milling Machines

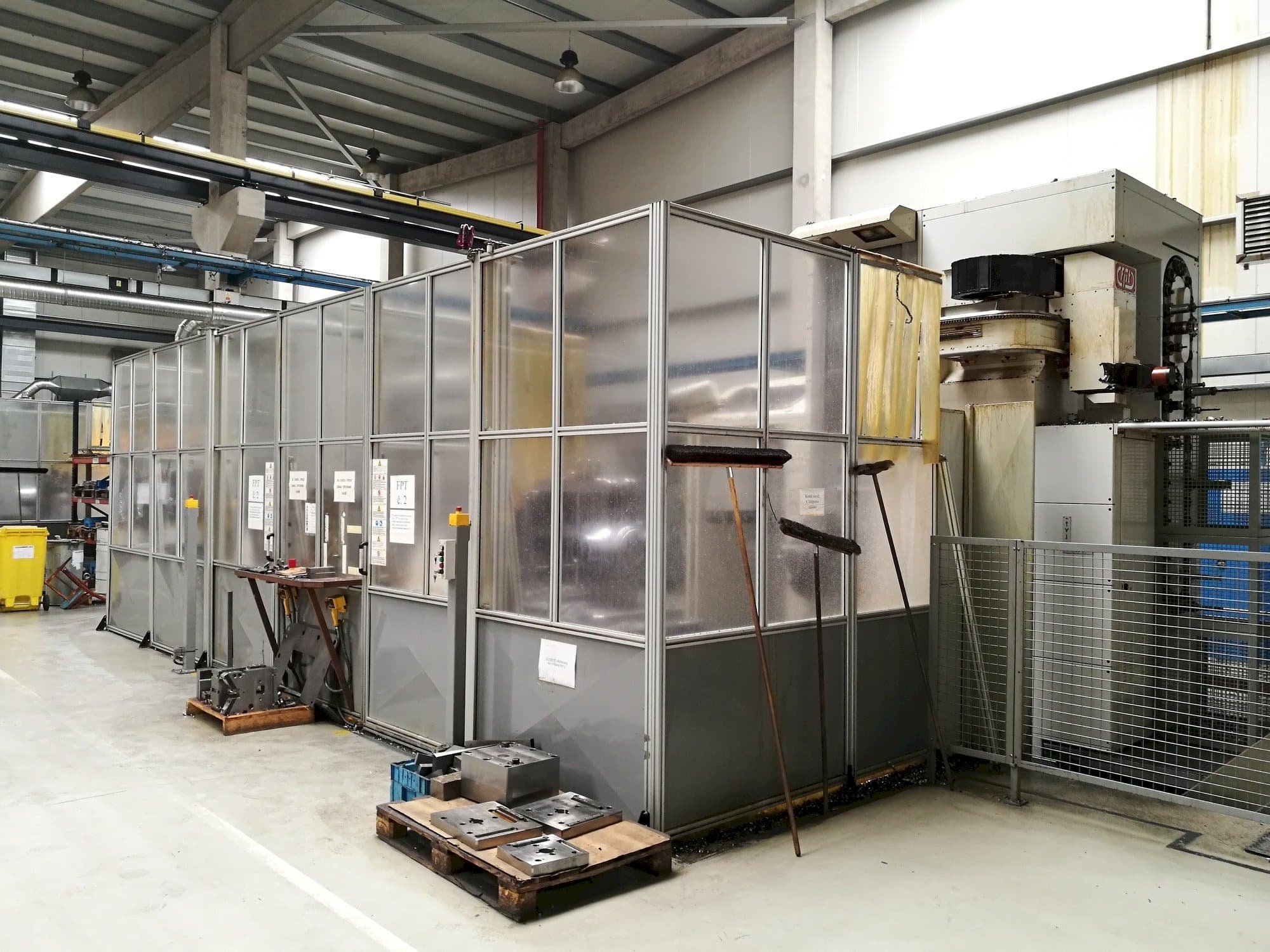

These FPT Area M Milling Machines were manufactured in Italy in the years 2008 and 2009 respectively. Equipped with a SIEMENS SINUMERIK 840 D Control unit, these machines can operate with a spindle speed up to 3000 rpm. Both machines are sold together and include several additional equipment such as milling heads and tool holders.
Overview
- brand: FPT
- year: 2008
- MODEL: Area M
- production hours: 12000
- application type: Milling
- Location: Czech Republic
- machine type: Gantry Milling Machine
- control unit brand: SIEMENS
Technical Information - FPT Area M
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840 D
Dimensions
- Table Length: 1000 mm
- Table Width: 1000 mm
Movement
- X-axis Travel: 6000 mm
- Y-axis Travel: 1250 mm
- Z-axis Travel: 2000 mm
Technical Specification
- Max. Tool Weight: 20 kg
- Spindle Power: 37 kW
- Spindle Speed: 3000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Angle head
- 2x Straight milling head
- 2x D'andrea head
- tool holders
Machine Benefits
Technical Machine Benefits
- Cooling thru spindle 20 bar
- Atc 40 positions
- Table indexation 0,5°
- Spindle taper iso 50
- Storage rack for 3 heads
- Hydrostatic guideways on x,y,z axes
- 2 pallet system for each machine
- Automatic loading/unloading of the milling heads
Machine History
Industries
Oil & gas
End product
Valves
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
