- ➤ Used FPT DINO - 2002 - For Sale | gindumac.com

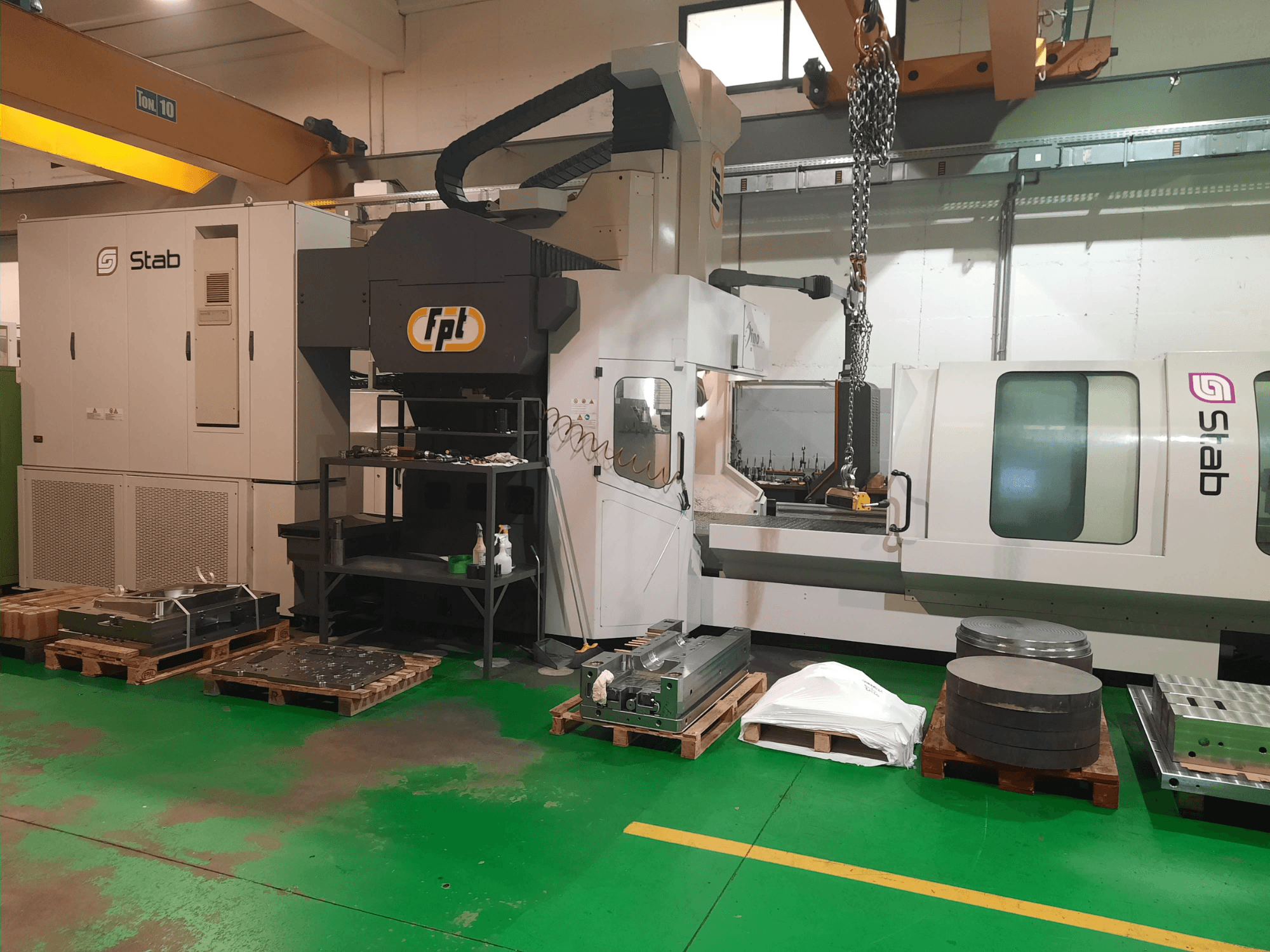

This 4-axis FPT DINO CNC Gantry Milling Machine was manufactured in 2002. It features an impressive X-axis travel of 2,800 mm, Y-axis travel of 1,600 mm, and Z-axis travel of 800 mm. The machine is equipped with an electrospindle capable of speeds up to 15,000 RPM and a robust gantry type cast-iron construction. If you are looking to get high-quality milling capabilities, consider the FPT DINO machine we have for sale. Contact us for further details.
Overview
- brand: FPT
- year: 2002
- MODEL: DINO
- application type: Milling
- Location: Italy
- machine type: Bed Type Milling Machine
Technical Information - FPT DINO
Movement
- Number of Axes: 4
- X-axis Travel: 2800 mm
- Y-axis Travel: 1600 mm
- Z-axis Travel: 800 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Spindle Speed: 15000 RPM
Additional Information
Rapid feed rate: 35,000 mm/min
Total installed power: 68.7 kW / 93.4 HP
Power supply: 400 V, 50 Hz, 116.1 A
Machine structure: Gantry type cast-iron construction
Spindle: Electrospindle, 5,000 / 10,000 / 15,000 rpm
Tool holders: HSK A63 DIN 69893; HSK E40 DIN 69893
Max tool diameter: 70 mm
Max tool length: 300 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
