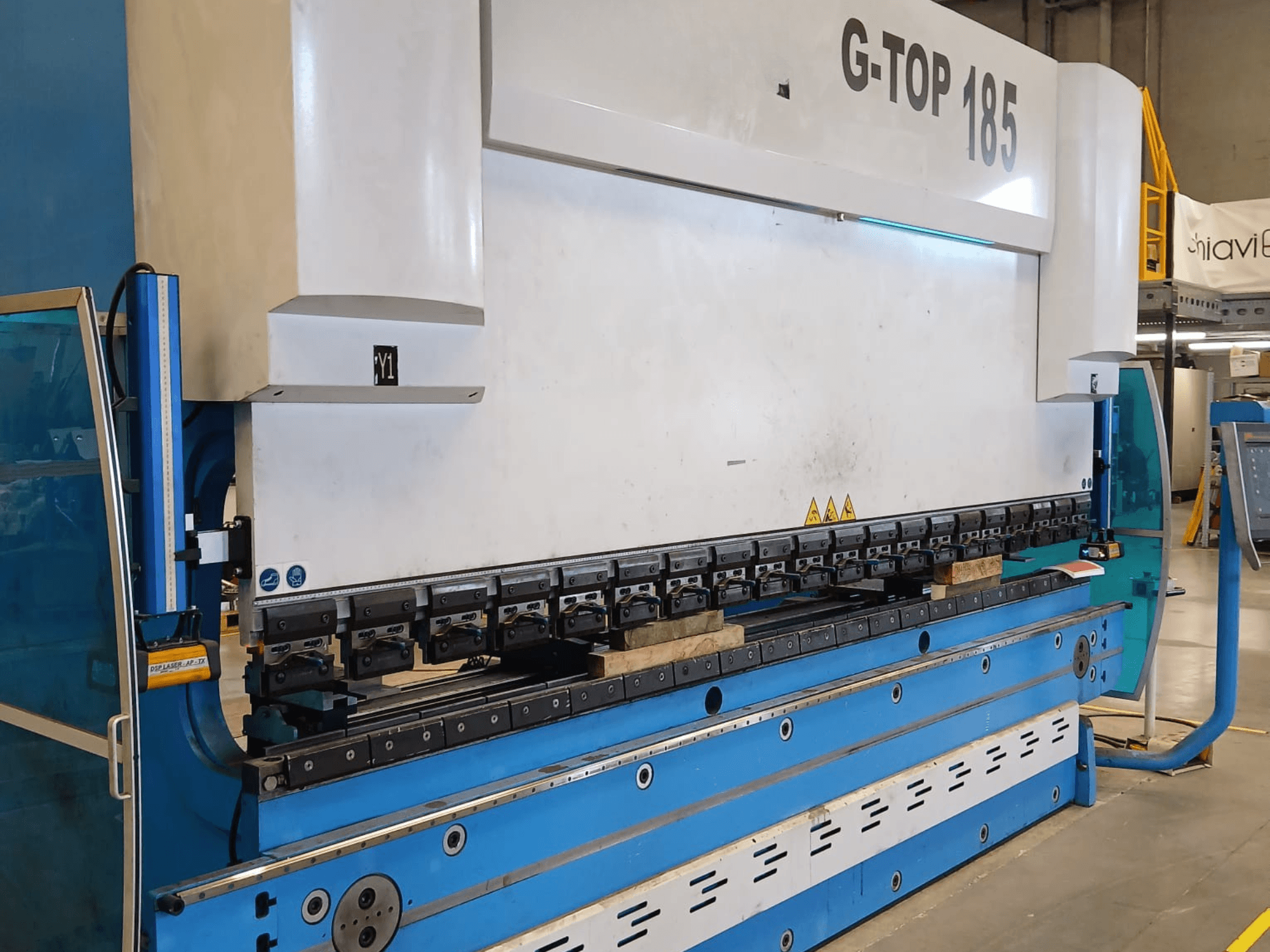

Press brake manufactured in 2018. This GASPARINI 4000×185 features a pressing force of 1850 kN and a bending length of 4100 mm. It includes a CNC backgauge with multiple axes and a G-REFLEX frame deflection compensation system for enhanced precision. If you are looking to get high-quality bending capabilities, consider the GASPARINI 4000×185 machine we have for sale. Contact us for further details.
Overview
- brand: GASPARINI
- year: 2018
- MODEL: 4000×185
- application type: Bending
- Location: Italy
- machine type: Press Brake
Technical Information - GASPARINI 4000×185
Dimensions
- Machine Height: 3440 mm
- Machine Length: 5000 mm
- Machine Weight: 18000 kg
- Machine Width: 2600 mm
Technical Specification
- Bending Length: 4100 mm
- Max. Stroke: 300 mm
- Pressing Force: 1850 Kn
Additional Information
Distance between frames: 3600 mm
Ram
Throat depth: 500 mm
Daylight opening: 500 mm
Working height: 950 mm
Backgauge
CNC backgauge: GHP-5
Axes: X, R, Z1, Z2, X5
Pneumatic retractable supports
Heavy-duty double linear guide system
Speed
Rapid approach: 270 mm/s
Working: 0–10 mm/s
Return: 120 mm/s
Control: ESA CNC control
Compensation system
G-REFLEX frame deflection compensation system
G-CS automatic crowning system
Motor & electrical
Main motor power: 18.5 kW
Voltage: AC 400 V
Frequency: 50 Hz
Phase: 3P + PE
Installation: Pitless (machine without foundation pit)
Additional equipment
No external/auxiliary equipment listed
Included documents: CE Declaration, Technical Documentation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
