- ➤ Used GEHRING 630-1 LR For Sale | gindumac.com

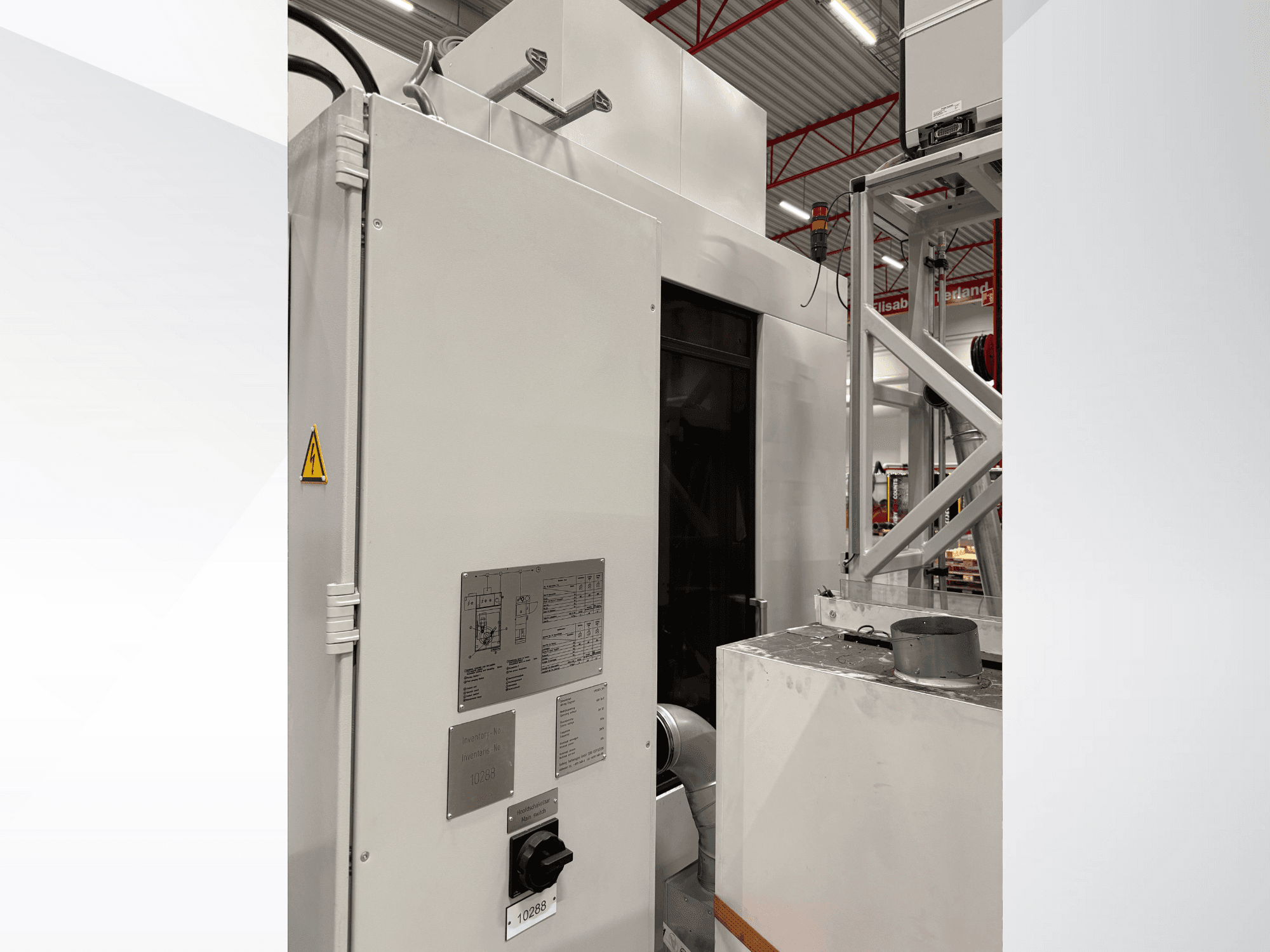

This 3-axis GEHRING 630-1 LR vertical honing machine was manufactured in 2017. It features a HAINBUCH sleeve with a diameter of 65 mm, VDI40 tool holders, and a hydraulic holder for reduction bushing. Ideal for precision honing applications. Contact us for more information about this machine.
Overview
- brand: GEHRING
- year: 2017
- MODEL: 630-1 LR
- production hours: 17
- application type: Honing
- Location: Norway
- machine type: Vertical Honing Machine
Technical Information - GEHRING 630-1 LR
Movement
- Number of Axes: 3
Additional Information
Additional equipment
HAINBUCH hexagonal collet sleeve, Ø65 mm — qty 1
HAINBUCH alignment screwdriver — qty 3
HAINBUCH drawbar adapter — qty 1
Cable (unspecified) — qty 2
Unclamping tool (unspecified) — qty 1
Internal coolant pickup — qty 1
VDI40 hydraulic toolholders, Ø20 (ISCAR) — qty 8
MAPAL holder D12, Ø13, part no. 0-27214-166099 — qty 4
Reducer bushing for hydraulic holder, 20→13 mm — qty 6
MAPAL HM reamer plate “Axel 92-R-0N” — qty 30
MAPAL D12 holder/bracket Ø14 (unspecified model) — qty 1
Hydraulic holder for reduction bushing ISCAR 20→14 — qty 3
Chisel/tool holder DIN 69880 – E2 – 40×40 — qty 1
MAPAL D12 holder/bracket Ø14 (unspecified model) — qty 4
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
